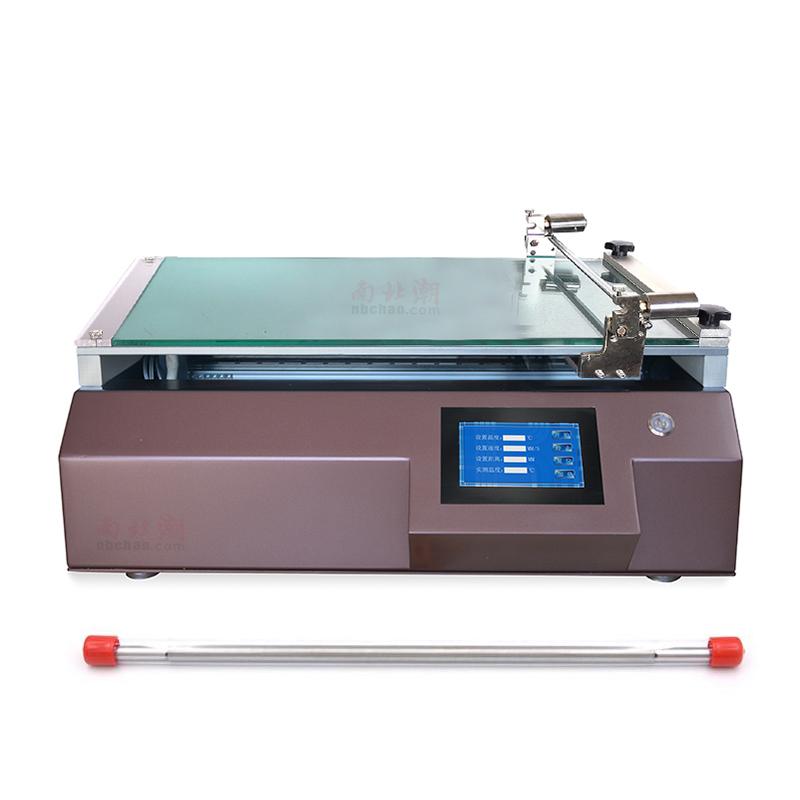

        zy TBJ-A1-XB Automatic Film Applicator

        China bar type Automatic Film Applicator TBJ-A1-XB with imported bar

        Simple coater, single line bar type, suitable for low viscosity samples or ultra-thin film high-precision Spreader, standard 1 micron accuracy bar; Glass baseplate, size 300 * 400mm, touch screen operation; pressure rod weight can be optionally Miscellaneous load.

        Brand
        SKU: NB033809
        Boutique China zy
        Stock
        Loading…
        Price
        $ 1283.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          zyLOGO

          zy shopSE

          Information
          Datasheet RFQ Contract Video Catalog Manual
          What else did others buy
          Genuinegoods

          • zy TBJ-A1-XB Automatic Film ApplicatorOverview

          • Specifications
          • Comments
          • FAQs
          TBJ-A1-XB
          Automatic Film Applicator
          • China bar type Automatic Film Applicator TBJ-A1-XB with imported bar
          • China bar type Automatic Film Applicator TBJ-A1-XB with imported bar Figure 1
          • China bar type Automatic Film Applicator TBJ-A1-XB with imported bar Figure 2
          Simple coater, single line bar type, suitable for low viscosity samples or ultra-thin film high-precision Spreader, standard 1 micron accuracy bar; Glass baseplate, size 300 * 400mm, touch screen operation; pressure rod weight can be optionally Miscellaneous load.

          product description

          The touch laboratory TBJ-A1 wire rod coating testing machine is a newly upgraded product that is carefully designed to coat precise wet films on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless coatings. After testing samples, the equipment has been favored by many familiar companies, research and development institutions, and colleges and universities after it was put into the market.

          This automatic coating machine comes standard with one domestic (CN) wire rod and one imported wire rod with a precision up to 1μm.

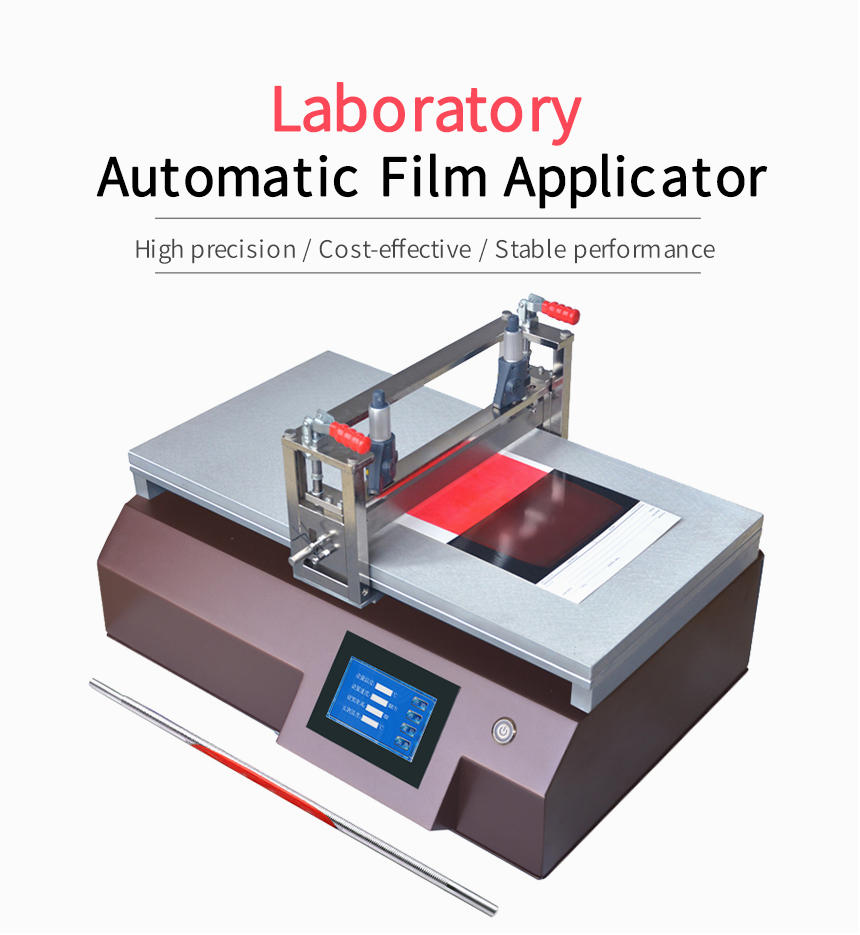

          CHINA Wire Rod Automatic Film Applicator Perovskite film TBJ-A1-XB with imported wire rod Figure 1



          CHINA Wire Rod Automatic Film Applicator Perovskite film TBJ-A1-XB with imported wire rod Figure 2

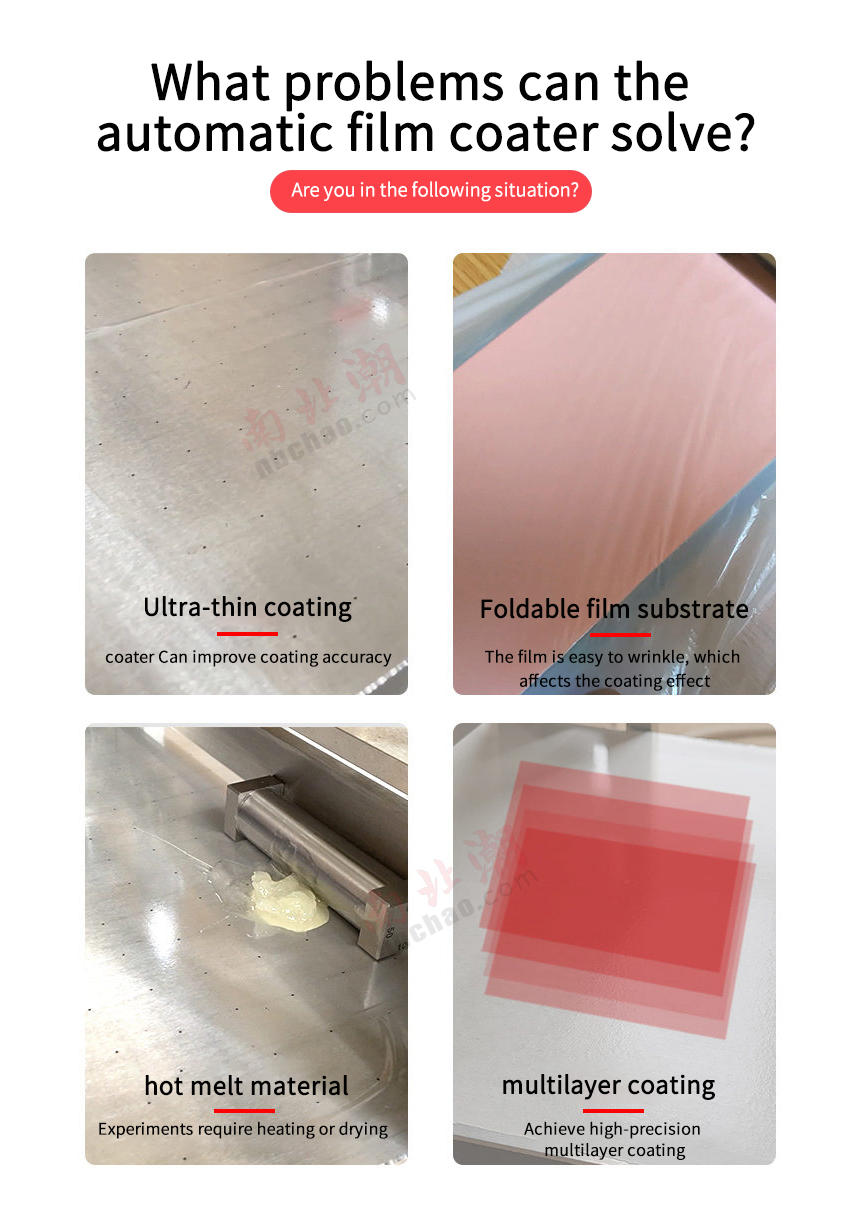

          CHINA Wire Rod Automatic Film Applicator Perovskite film TBJ-A1-XB with imported wire rod Figure 3

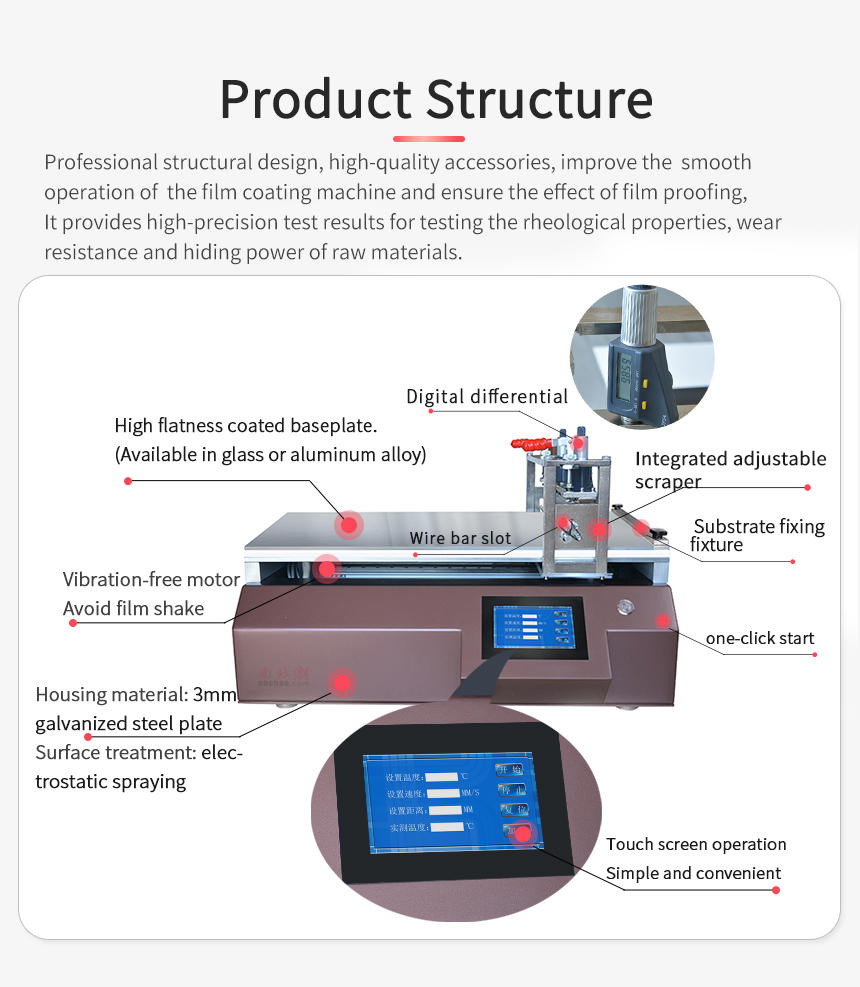

          CHINA Wire Rod Automatic Film Applicator Perovskite film TBJ-A1-XB with imported wire rod Figure 4

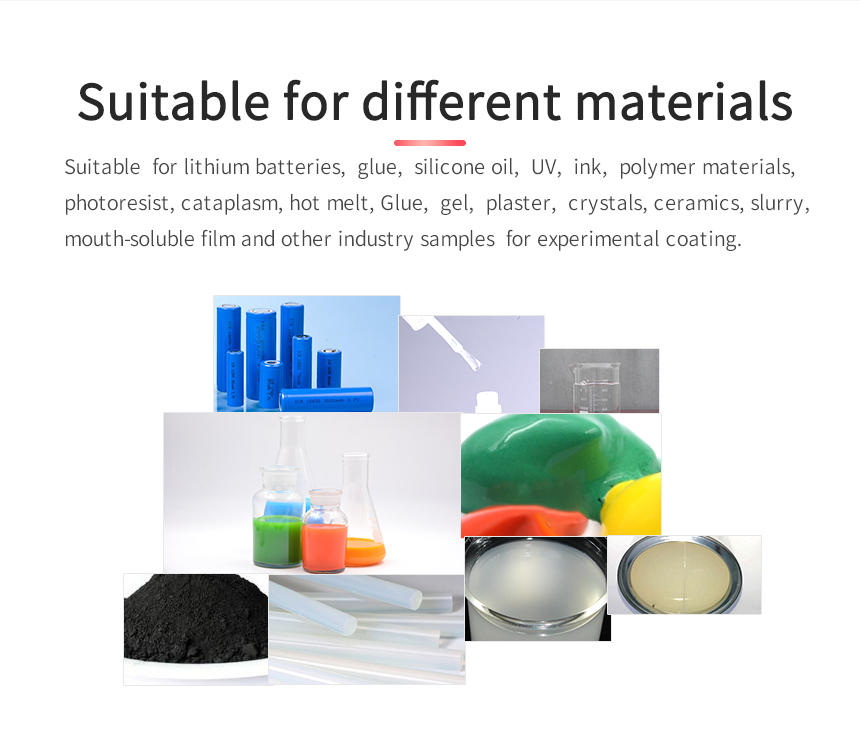

          CHINA Wire Rod Automatic Film Applicator Perovskite film TBJ-A1-XB with imported wire rod Figure 5

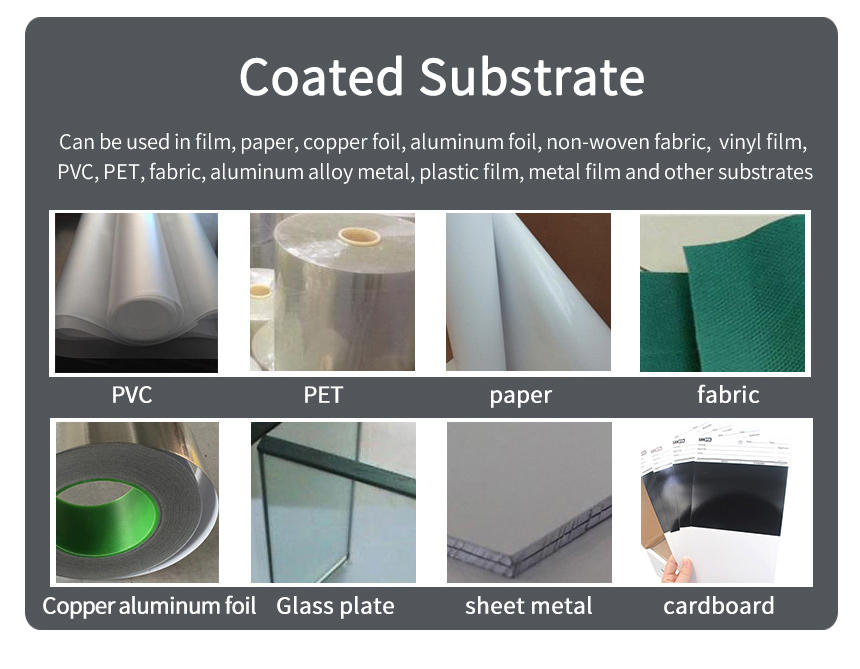

          CHINA Wire Rod Automatic Film Applicator Perovskite film TBJ-A1-XB with imported wire rod Figure 6

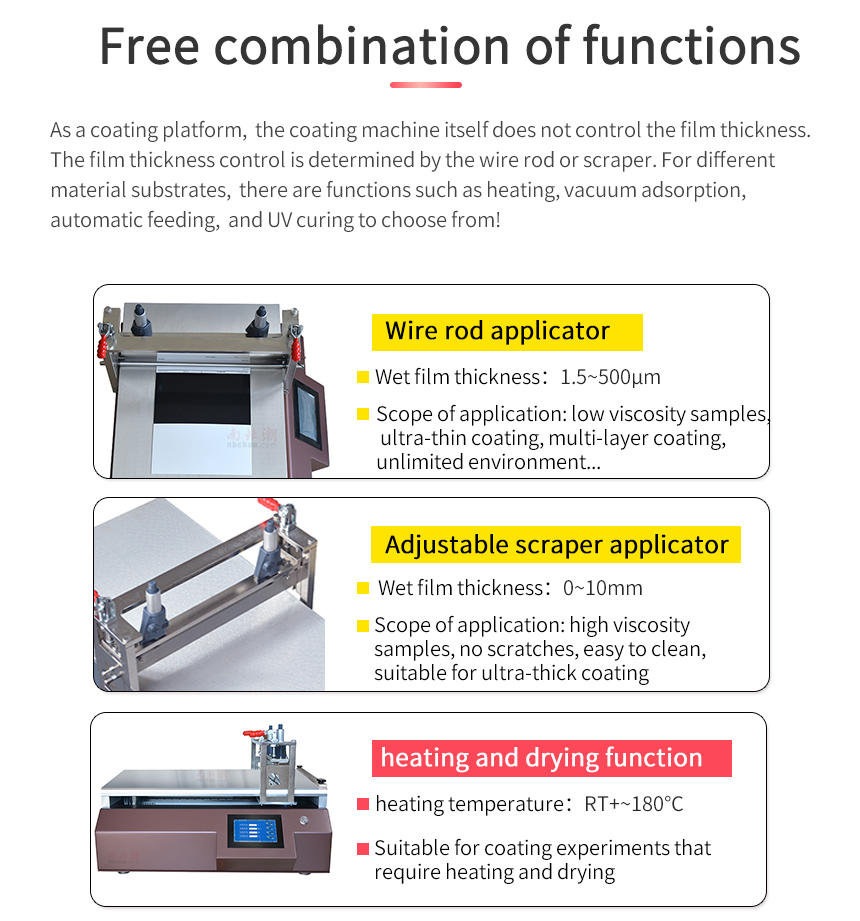

          CHINA Wire Rod Automatic Film Applicator Perovskite film TBJ-A1-XB with imported wire rod Figure 7

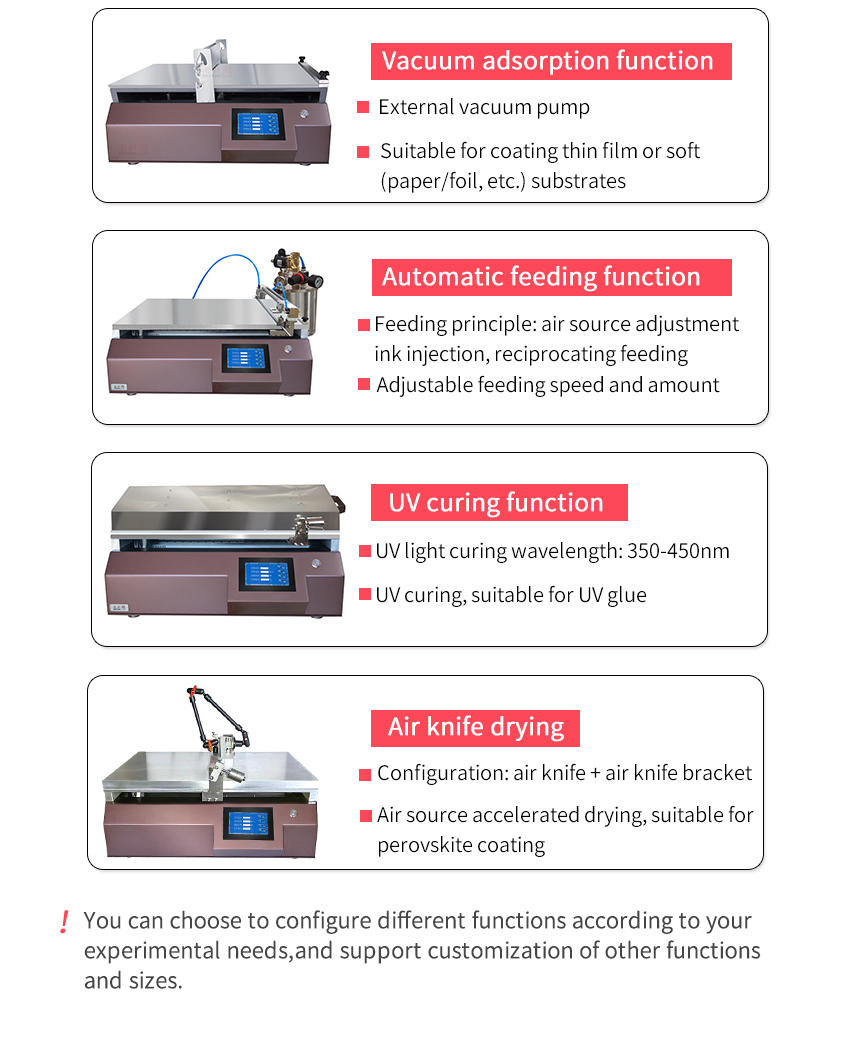

          CHINA Wire Rod Automatic Film Applicator Perovskite film TBJ-A1-XB with imported wire rod Figure 8

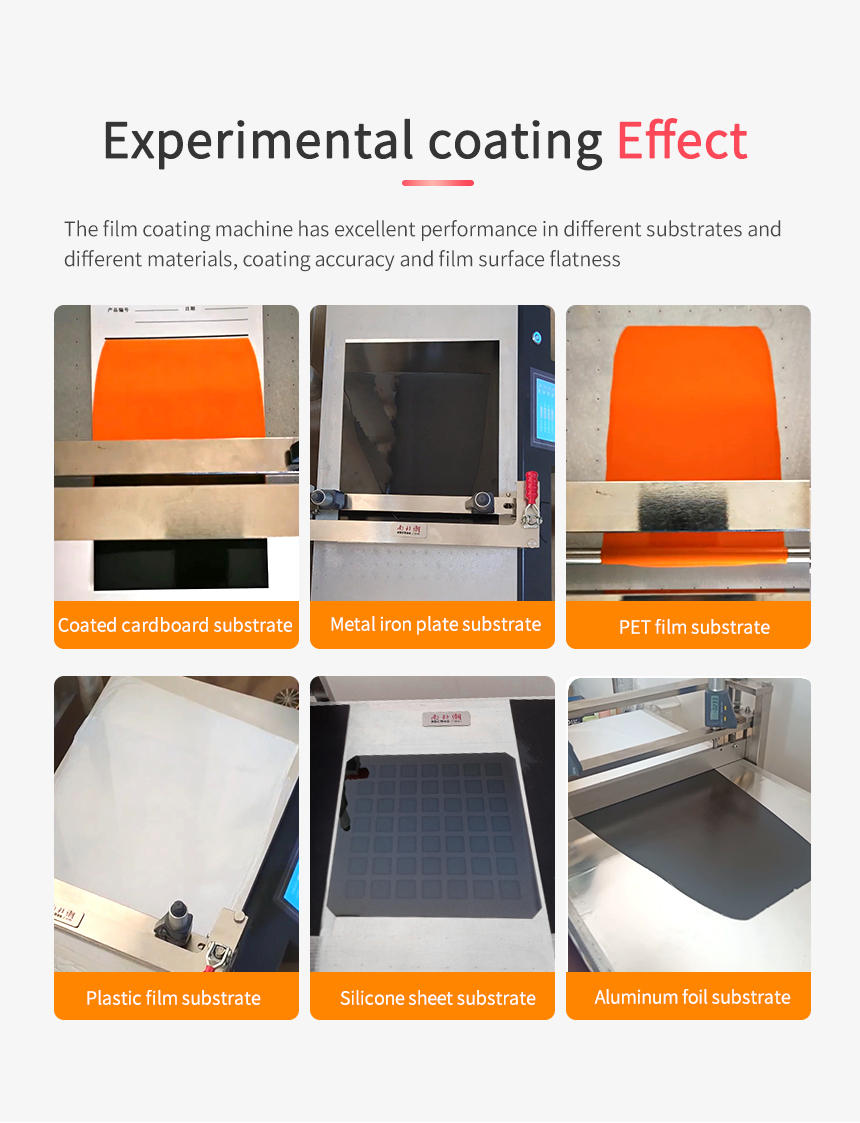

          CHINA Wire Rod Automatic Film Applicator Perovskite film TBJ-A1-XB with imported wire rod Figure 9


          Optional

          Coating wire bar applicator

          Coating film test paper

          Drawdown Plate

          VS

          zy TBJ-A1-XB Automatic Film ApplicatorSpecifications

          LIST VALUE
          Coating method Wire rod
          Wire Rod Coating Thickness Range 1-571.5 μm (Spreader thickness determined according to rod model)
          Spreader Accuracy ±0.001mm
          Coating speed 5-200Mm/s (< 5mm/s can be customized)
          Coating size 300 * 400Mm (Miscellaneous size can be customized)
          Spreader distance control The number can be set arbitrarily within the range of 1-400mm
          Substrate clamping method Mechanical fixture
          Control mode Touch screen control
          Power supply Voltage 220V  50HZ
          Dimension 650 * 410 * 520Mm (length * width * height)
          Net Weight 45KG
          speed control Infinitely variable speed
          Bottom plate material Glass
          Optional Accessories Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
          customizable function Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader

          zy TBJ-A1-XB Automatic Film Applicator Packing list

          Film Applicator X1, imported bar X1, China bar X1, product manual X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          Do you have a bar coater?
          [A]
          Yes, optional heating, Vacuum chuck and other functions.
          [Q]
          Hello, can the accuracy of this reach 3μm and below? Coating 3, 6, 9, 5, 10, 15 μm film Why don't you add v, it's not convenient for me to answer the phone right now. The substrate is Glass, can the accuracy of Spreader liquid sample be achieved if it is 3μm or 5μm?
          [A]
          Our minimum wet-film for the wire rod type is 1.5 microns, and the solid content can be adjusted to the nano level. We all use imported wire rods, and the accuracy of the wire rods is 1μm error.
          [Q]
          Is it a table with a fixed substrate? The size of the Glass sheet we use is about 76mm * 40mm smaller, and the thickness is about 1mm.
          [A]
          Fix with fixture or tape.
          [Q]
          If you hit 50-200 microns on the non-woven substrate, can you use this wire rod coater?
          [A]
          Sure.
          [Q]
          PVDF Film, Moulding Glass plate Film thickness,
          [A]
          Wire coater
