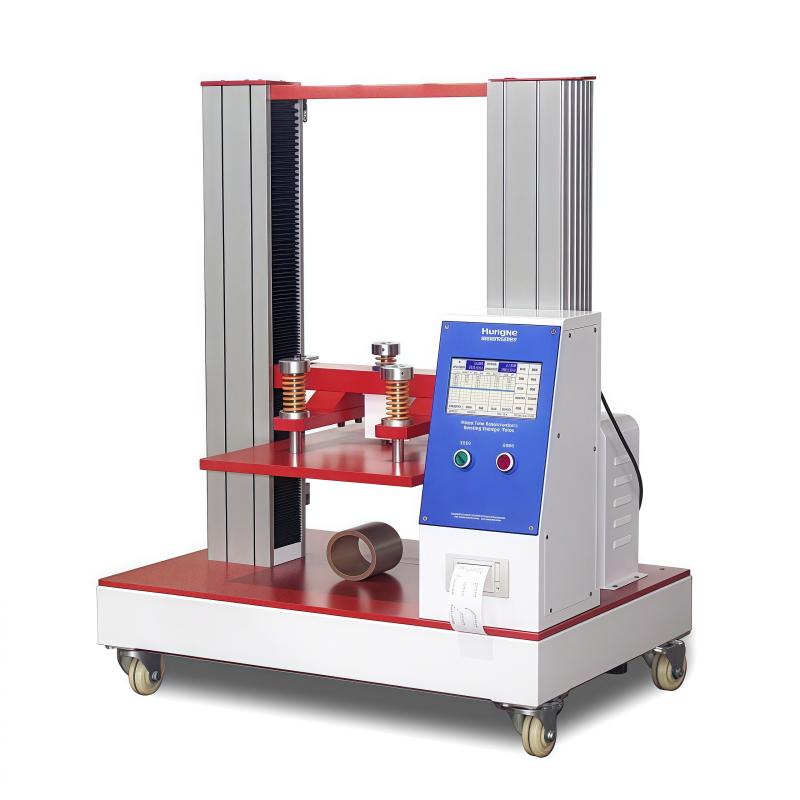

PUYUN PY-H620-1000 Microcomputer compressire strength Tester

Introduction

PY-H620 series microcomputer carton compression testing machine is also called: carton compression testing machine, carton compression testing machine, empty box compression testing machine, carton compression Tester, stacking Tester, pressure Tester, carton pressure testing machine, carton pressure testing machine, carton compression Tester, carton compression Tester. The whole box compressive testing machine is a multi-functional standard carton quality testing equipment developed by our company, which is mainly used for the compressive strength test of various medium and conventional size corrugated boxes or the compressive strength testing and testing of the whole box of packaging containers made of other materials with a compressive strength of less than 50KN (5000kgf), such as food and beverage, instant noodle packaging, cosmetics box packaging, beer packaging, grain and oil packaging and other small cartons, color boxes, medium-sized cartons, large cartons, honeycomb cartons and other paper products. This instrument has high control accuracy and professional development technology, and is currently the most cost-effective general-purpose carton compression testing machine in CHINA.

PY-H620 series compressive testing machine has the functions of testing, display, memory, statistics, printing and real-time display of compressive curves contained in the standard, with data processing function, can directly obtain the statistical results of various data, has automatic reset and fault diagnosis functions, and is easy to operate.

The results of the test can be used as an important reference for the height of the finished packaging box stacked in the factory or an important basis for the design of the packaging box

1. Stacking strength test function——It is used to determine the sample in the simulated packaging chamber to supplement the pressure to the preset pressure and maintain, throughout the test process, the testing machine repeatedly adjusts the pressure in this way to ensure that the pressure fluctuation does not exceed the specified range, until the specified stacking test time is reached. When the total deformation of the specimen under compression reaches 100mm, the testing machine will automatically terminate the test.

2. Fixed-distance and fixed-force test function——It is used to determine the limit compressive strength of high-grade special requirements specimens. The pressure plate on the testing machine moves downward at a set speed, pressurizes the sample after contacting the sample, and at the same time measures the pressure received by the sample, and measures the deformation of the sample from the pressure value reaching 220N. When the specimen result reaches a preset pressure distance or pressure, the value of the downforce and the amount of compressive deformation of the specimen are automatically recorded.

3. Compressive strength test function - used to determine the ultimate compressive strength of the sample. The pressure plate on the testing machine moves downward according to the set speed, pressurizes the sample after contacting the sample, and measures the pressure value of the sample at the same time, and measures the deformation of the sample from the pressure value reaches the preset value, and the testing machine will automatically record the peak pressure under the pressure and the compressive deformation of the sample after the sample is crushed.

Standard basis

GB/T 4857.4: Basic tests for packaging and transportation packages – Part 4: Test methods for compression resistance and stacking using pressure testing machines;

GB/T 4857.3: Basic tests for packaging and transportation packages – Part 3: Test methods for static load stacking;

QB/T 1048: Compressive testing machine for cardboard and cartons;

ISO 2872: Packaging - Complete, full transport packaging - Pressure test;

ISO 2874: Packed, full transport packaging – Stacking test with pressure Tester;

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
