OSP OSP-25 L2000φ 16 Adhesive tape Metering rod 25μm

Overview

Japan OSP25 micron production profile wire rod (also known as metering rod) is a customized production line rod used to control the flow and maintain the uniformity of the coating in the production machinery and equipment such as paper and film.

OSP OSP-25 L2000 Φ16 production type wire rod is a customized wire rod with a rod diameter of 16mm, a coating width of 2000mm, and a control coating thickness of 25 microns.

D-Bar Advantages:

Customers who use traditional wire scrapers often encounter a wide variety of problems.

(1) The steel wire is loose and broken

(2) It is not easy to clean and easy to block

(3) The surface shape cannot be changed freely

Is there a product that can replace the wire scraper?After several improvements, the D-BAR was finally developed.It was officially launched into the market in 2001.

The D-Bar can control wet film thicknesses as low as 1.5 μm, enabling ultra-thin coating

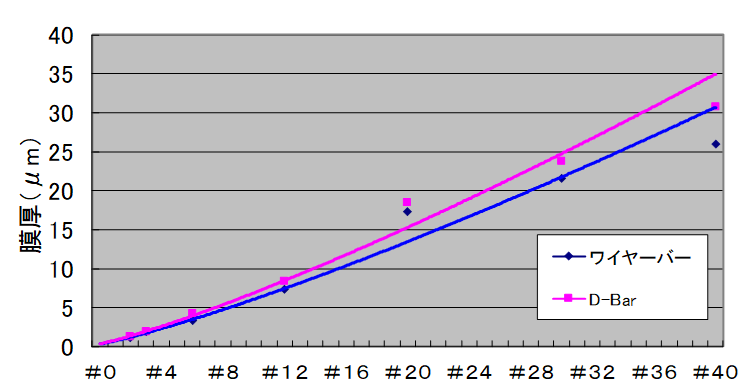

Comparison of the amount of coating on the reel rod and the D-Bar

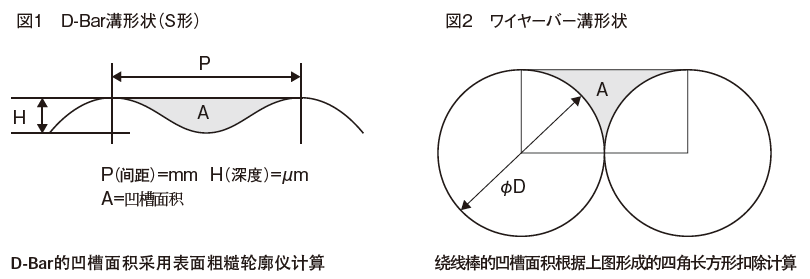

Difference in coating weight: The bottom of the groove of the D-Bar is wider than that of a conventional wire scraper, so in general, the coating weight of the D-Bar is larger.

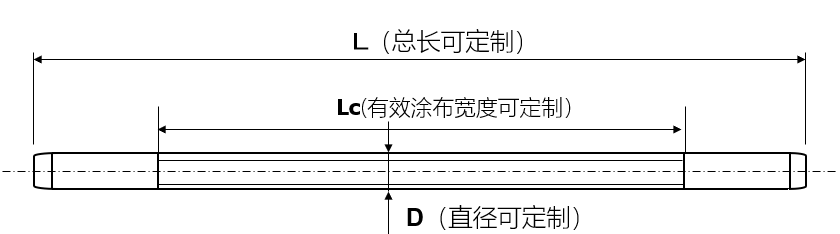

D-Bar line rod specifications

The length of the D-Bar specification can be customized, please contact us for detailsNorth and South Tide customer service

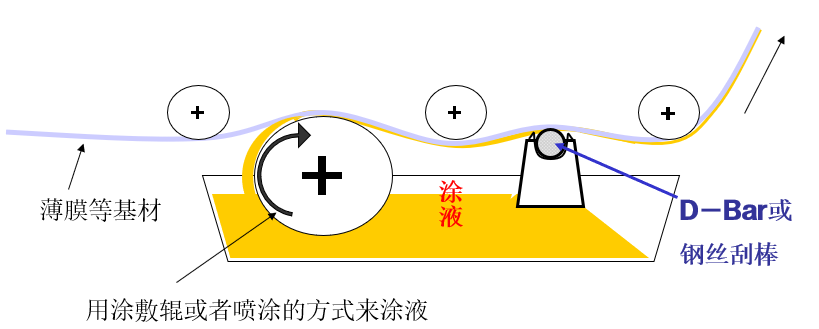

How to use:

When applying liquid to the surface of the substrate, adjust (scrape) the amount of liquid with D-Bar.

Application

The D-Bar series of coating rods for extrusion production produced by OSP in Japan are widely used in the following industries:

Membrane:Liquid crystal film, X-ray film, packaging film, etc

Glass:Automotive glass, liquid crystal glass, architectural glass, etc

Paper:Newspapers, light paper, wallpapers, special papers, etc

Packing Material:Cartons, tapes, wrapping paper, etc

Tape:videotapes, etc

Magnetic card:Tickets, recharge cards, etc

Custom Spreader Stick × 1, External Encasement Tube

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
