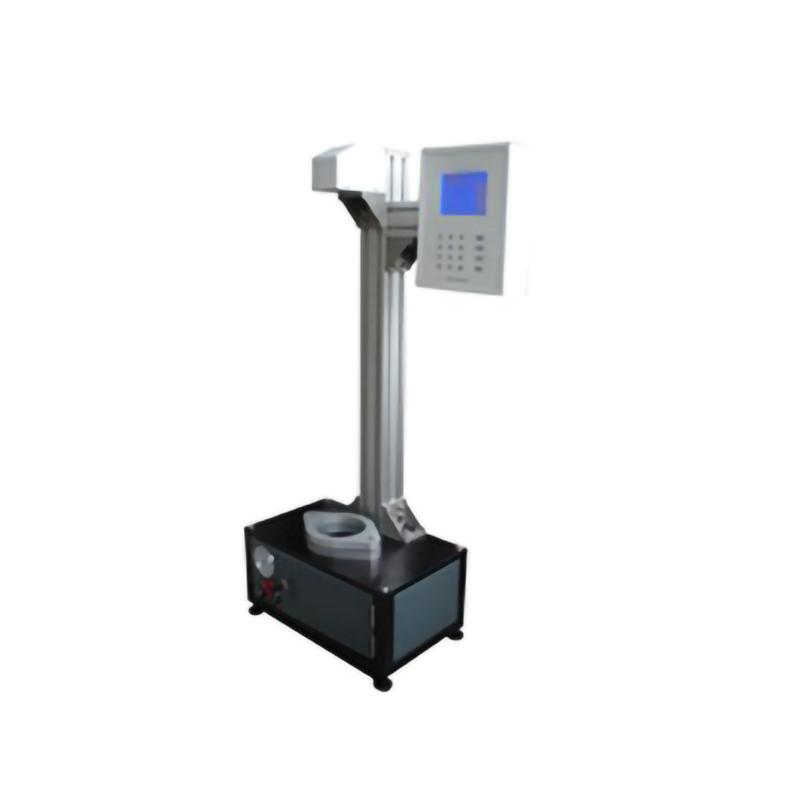

HORIZON XLB-30 Impact Tester Plastic film, Impact test
A/B dual test mode, Measurement range 300~2000g, accuracy 0.1g, pneumatic clamping sample to reduce errors, automatic calculation and output results, improve test efficiency.
Horizon
XLB-30
-
CHINA NBC-9013 battery extrusion Tester, lithium battery extrusion failure Tester
$ 2145.00 -
CHINA NBC-YX-4030ZD automatic two-dimensional imaging instrument, workpiece crazing detection 400 × 300mm
$ 10379.00 -
TQC DV50010 Immersion Valve Body 100ml
$ 2285.00 -
TQC Sheen SH0590 Automatic Panel Sprayer 4700N
$ 65575.00 -
DZ-DSC100A Differential Scanning Calorimeter RT +~ 600 ℃ Customized
Login
Applications
XLB-30A dart impact Tester is suitable for dart impact test on various plastic films and sheets. This product complies with GB/T9639 "Plastic Films and Sheets Impact Resistance Test Method Free Falling Dart Method", and also meets ISO7765 "Plastic Films and Sheets Determination of Impact Resistance - Free Falling Dart Method", and ASTMD1709 "Polyethylene Plastic Anti-freedom Method" Standard Test Method for Dart Impact, Requirements for Test Equipment.
Features
1. The machine is novel in shape and easy to operate
2. Test method A, B dual-mode design
3. Unique lighting observation lamp, convenient and quick test
4. Microcomputer processing of test data
5. The test process is intelligent and the work efficiency is high
6. The sample is pneumatically clamped and released, which reduces the test error and test time
7. The test process does not need manual drawing marks, and the data parameter system LCD display
8. The test data system automatically recognizes and calculates without manual intervention
9. The test ends automatically, the results are displayed in various units, and the output is microprinted
configuration
Standard configuration: test host, a set of weights for method A (method B), micro-printer
Optional configuration: One set of weights for method A. One set of weights for method B
Standard: GB/T9639 "Plastic Film and Sheet Impact Resistance Test Method Free Falling Dart Method"
Horizon XLB-30 Impact TesterSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | B method 300~2000g |
| Measurement Accuracy | 0.1g(0.1J) |
| Measurement method | Method A, Method B (optional) |
| test conditions | 23 ℃ 50% RH (standard) |
| Specimen size | ＞150mm×150mm |
| Power | AC220V±10％ 50Hz |
| Dimensions | B英500 (L) mm × 450 (W) mm × 2160 (H) mm |
| Net Weight | 70kg |
| Specimen clamping | Pneumatic |
Horizon XLB-30 Impact Tester Packing list
Test host X1, configuration weight set X1, micro printer X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
