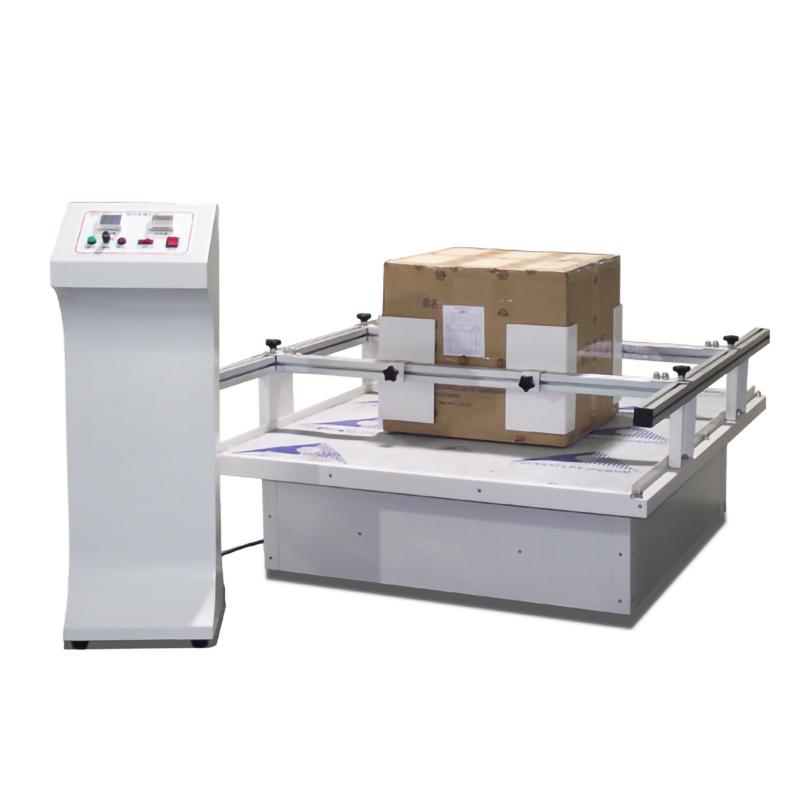

YINUO YN-ZDY01 Shaker Table 1000 * 1200mm

Instrument use

YN-ZDY01 simulated vehicle transportation vibration test bench is designed to simulate different road conditions encountered by products during transportation, and its technical requirements and testing methods comply with international standards GB/T 4857.7 (Basic Tests for Packaging and Transportation Packages Part 10) : Sinusoidal frequency conversion vibration test method) and the requirements and regulations of the ISTA vibration specification European and American transportation standards and other standards, used to evaluate whether the structure of the carton package has sufficient strength to meet the needs of long-distance transportation, suitable for toys, electronics, gifts, Products such as ceramics and packaging are subjected to simulated transportation tests.

Principle

Test principle: Place the test sample on a vibration table, and use an approximate fixed low-frequency sinusoidal oscillation to make it vibrate. The temperature and humidity conditions, test duration, acceleration, test sample placement state and fixing method during the test are all predetermined. If necessary, a certain load can be added to the test sample to simulate the situation that the transport package is subjected to a sinusoidal vibration environment under the condition of the bottom of the stack.

Executive standard

GB/T 4857.7, EN71 ANSI, UL, ASTM ISTA

technical features

1. Adopt digital display mode

2. Sinusoidal fixed displacement vibration mode,

3. Adjustable speed and frequency

4. Silent belt drive, low noise

5. Rail clamping method

6. The bottom seat of the machine adopts heavy-duty channel steel with damping rubber pads to run smoothly

7. DC motor speed regulation, strong load capacity

Application

It is suitable for the vibration test of electronic accessories, ceramic lighting, communication equipment, furniture, gifts, etc., and is used to inspect the fixed transportation effect of the package and the durability of displacement vibration.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
