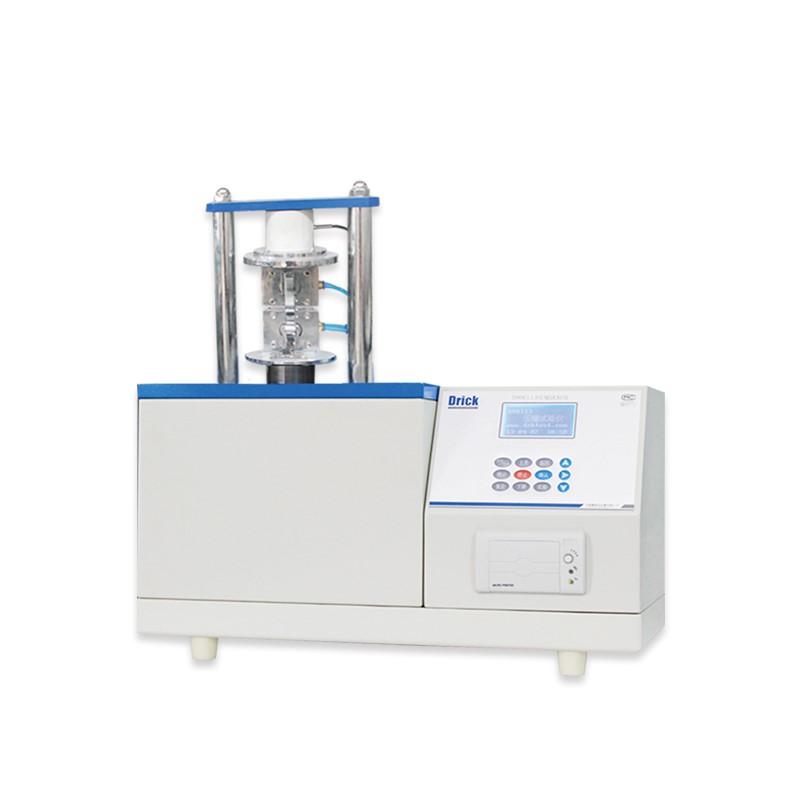

DRICK DRK113C Short-Span Compression Tester
The DRICK DRK113C short-range compression Tester is applied to the strength detection of paper and Cardboard. The DRK113C short-range compression Tester has an error of indication +/- 1%, indication variability < 1%, resolution 0.1N, Measurement range (0~500) N.
Drick
DRK113C
Product Details:
DRK113C short-range compressor is a new type of high-precision intelligent Tester that our company has researched and developed in accordance with relevant national standards and adopts modern mechanical design concepts and microcomputer processing technology for careful and reasonable design, using professional components, supporting components, monolithic microcomputer, reasonable structure and multi-functional design, configuration of liquid crystal Chinese display, with various parameters included in the standard test, conversion, adjustment, display, memory, printing and other functions.
Features
1. Modern design concept of mechatronics, compact structure, beautiful appearance, easy maintenance;
2. The instrument adopts the upper pressure plate fixed type, high-precision weighing sensor, to ensure the rapidity and accuracy of the instrument force data collection. High measurement accuracy;
3. Using high-speed ARM processor, high degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable, with powerful data processing function, can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, stable performance;
4. It can display pressure and deformation, real-time display of pressure resistance, deformation and other information;
5. Modular all-in-one thermal printer, fast printing speed and convenient paper change;
6. Chinese and English bilingual operation menu (Chinese-English), and can be switched at any time;
Product Applications
It is mainly used in the strength testing of paper and cardboard, and is an important indicator for manufacturers to meet the requirements of product use.
Technical standards
GB450 Adoption of paper and cardboard specimens
G451.2 Quantitative determination of paper and cardboard
GB10739 Pulp paper and cardboard specimen handling and experimental standards atmosphere
GB191-1991 Packaging, Storage and Transportation Graphic Signs
GB/T13306-1991 Signage
GB/2679.10-1993 Determination of short-range compressive strength of paper and cardboard
GB/T14253-1993 General technical conditions for light industrial machinery
JJG157-1995 Tensile pressure and multifunctional test of non-metallic materials
ISO9895: 1989 Paper and cardboard - Compressive strength - Short range experiment
Drick DRK113C Short range compression TesterSpecifications
| LIST | VALUE |
|---|---|
| Power supply Voltage | AC220V±10% 2A 50Hz |
| error of indication | ±1% |
| Indication variability | <1% |
| Force resolution | 0.1N |
| Force range | 5~5000N |
| Plate parallelism | ≤ 0.05 mm |
| Working Travel | 0.7mm |
| Test speed | 3 mm/min |
| Fixture size | 30mmx15mm |
| Human Machine Interface | Chinese and English menu; LCD display |
| printout | modular integrated thermal printer |
| Dimension | 530*350*740mm |
| Weight | About 45kg |
Drick DRK113C Short range compression Tester Packing list
host X1, power cord X1, manual X1, certificate X1, warranty card X1, printing paper X4
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
