Product Details:

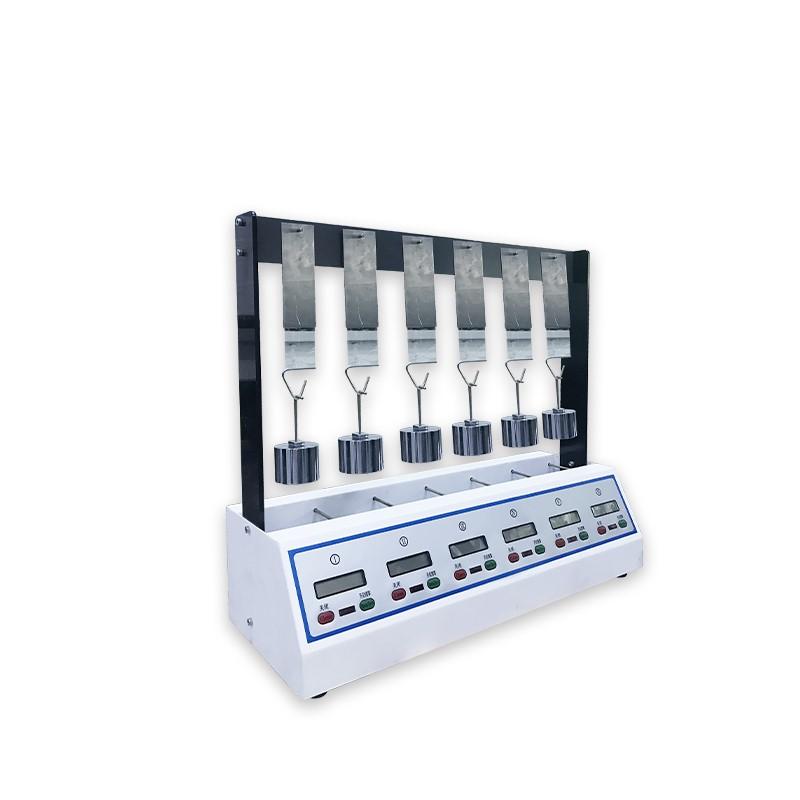

DRK130 Adhesion Tester Adhesion Tester is suitable for pressure sensitive adhesive tapes, medical patches, self-adhesive labels, protective films and other products for adhesion test.
Features
1. Using microcomputer control timing, LCD liquid crystal display test time, timing is more accurate, small error.
2. High-quality proximity switch, wear-resistant and anti-smashing, high sensitivity, longer service life.
3. Automatic timing, locking and other functions further ensure the high accuracy of the test results, and the six test stations can carry out multiple sets of test items at the same time.
Applications
It is suitable for the adhesion test of various adhesive products, such as pressure-sensitive tapes, medical patches, self-adhesive labels, protective films and other standards.
Technical standards
The instrument complies with a number of national and international standards: GB/T 4851, ASTM D3654, JIS Z0237.
Drick DRK130 stickiness TesterSpecifications
| LIST | VALUE |
|---|---|
| Roller load | 2000±50g |
| Weight | 1000 +/- 10g (including loading plate Weight) |
| Timer | 0~100h |
| station number | 6 stations |
| Dimensions | 600*240*400mm |
| Net Weight | About 20kg |
| Power Supply | AC 220V±5% 50Hz |
Drick DRK130 stickiness Tester Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
