DRICK DRK219 cap torque meter
DRICK DRK219 cap torque instrument can be applied to carbonic acid beverage bottles, juice bottles, plastic bottles, mineral water bottles and other container caps of different sizes test, DRK219 cap torque instrument specification 20Nm (standard) (40Nm, 50Nm range optional), accuracy level 1, system resolution 0.001 Nm, clamping range 5mm~ 170mm (diameter).
Drick
DRK219
-
Digital torque wrench HNB-10 Hypertherm torque wrench instrument
$ 326.00 -
Bottle cap turntable Torque Tester HN-2BP Hypertherm 2N.m desktop bottle cap Torque Tester
$ 768.00 -
Hypertherm HNS-5 torque wrench verification instrument, manual torque wrench 5N.m
$ 1847.00 -
Digital torque meter HNJ-1 Hypertherm, handheld torque Measurement Instrument, range 1N.m
$ 574.00 -
Torsion Spring Tester HNT-2 Hypertherm, Vertical Manual Spring Torsion Tester 2N.m
$ 1504.00
Product Details:
DRK219 Torque Tester is suitable for bottle packaging container cap locking and opening torque value, which can meet the needs of bottle manufacturers to test their own products, as well as food and product enterprises to test container packaging caps. The torque value of the cap directly determines whether the plastic bottle will be damaged due to the cap during transportation, and whether it is conducive to opening when consumers use it.
Product Applications
It can be applied to carbonated beverage bottles, fruit juice bottles, plastic bottles, mineral water bottles and other containers of different sizes of cap testing.
Features
Microcomputer control, touch screen operation, menu-based interface, mechatronics design concept
The test data is collected continuously, and the peak value is automatically maintained
Statistical analysis of group data, printing of single or multiple experimental results
Dual-mode design of locking force and opening force
The number of tests can be set, data deletion, and statistics functions
Automatic zeroing, intelligent fault prompt, overload protection, and power-down memory of test parameters
Small size, easy to operate, reliable performance, fast test
Technical standards
GB/T 17876、BB/T 0025、BB/T 0034(GB/T 14803)、 ASTM D 2063、ASTM D 3198、ASTM D 3474
Standard configuration
Mainframe, micro printer
Options
Professional software, communication cables

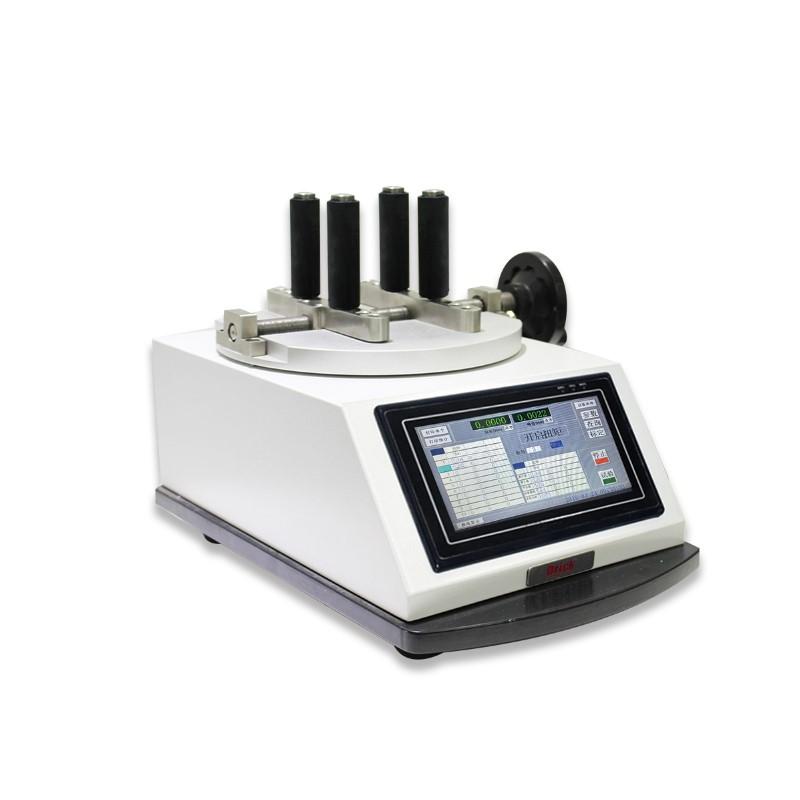

Drick DRK219 Bottle cap torque MeterSpecifications
| LIST | VALUE |
|---|---|
| Specifications | 20Nm (standard) (40Nm, 50Nm range optional) |
| precision | Level 1 |
| System resolution | 0.001 Nm |
| clamping range | 5Mm~ 170mm (diameter) |
| Dimension | 350*240*140mm |
| Power Supply | AC 220V 50Hz |
| Net Weight | 19kg |
Drick DRK219 Bottle cap torque Meter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
