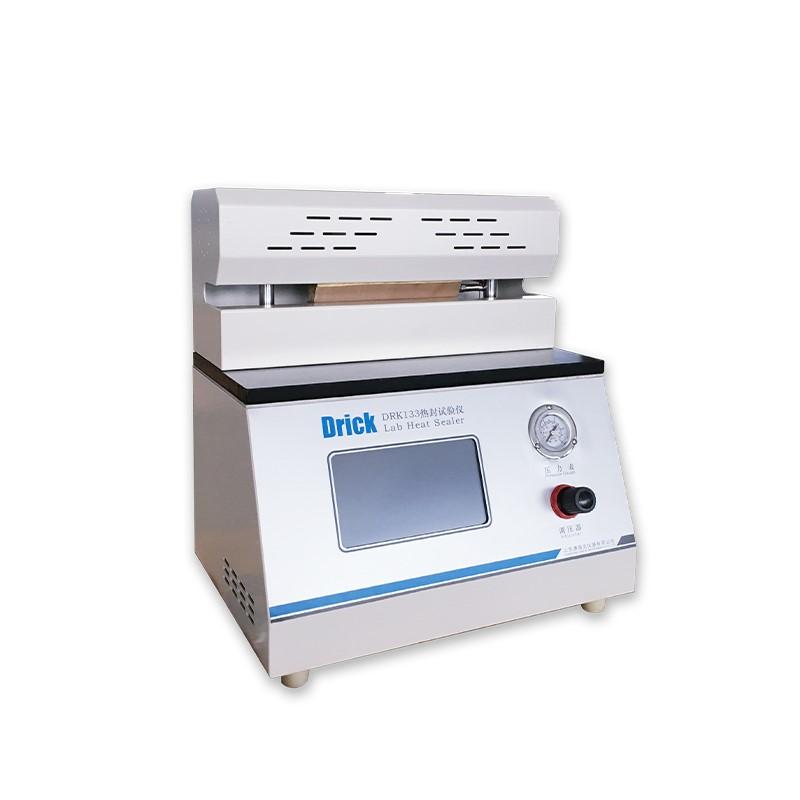

DRICK DRK133 Heat Sealing Tester

Features

• Microcomputer control, touch screen operation, menu-based interface.

• Digital P.I.D. temperature control, under-mounted dual-cylinder synchronous circuit.

• There are two test start modes: manual and foot.

• The upper and lower heat sealing heads have independent temperature control, and a variety of hot cover forms can be customized.

• Aluminum potted uniform temperature heating tube, quick-swap plug-in heating tube power connector.

• The anti-scald safety design can effectively ensure the convenience and safety of users.

Applications

It is suitable for the heat sealing test of various plastic films, plastic composite films, paper-plastic composite films, co-extrusion films, aluminized films, aluminum foils, aluminum foil composite films and other film-like materials.

Technical standards

The hot pressing sealing method is used to place the sample to be sealed between the upper and lower heat sealing heads, and the sealing of the sample is completed under the preset temperature, pressure, and time, and the instrument meets a variety of national and international standards: QB/T 2358, ASTM F2029, YBB 00122003.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
