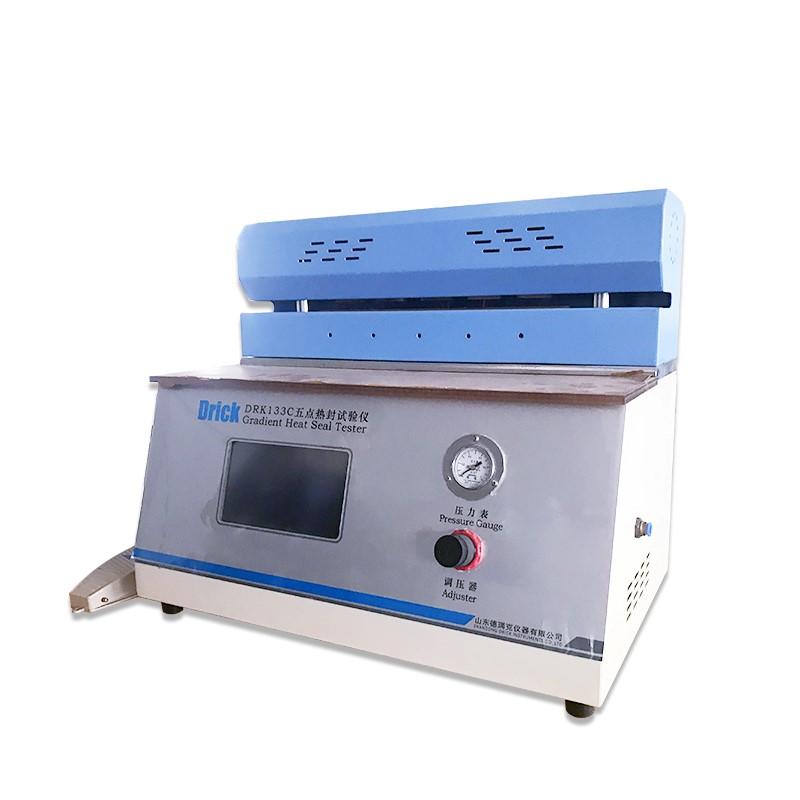

DRICK DRK133 Five-point heat sealing Tester

Features

Touch-screen microcomputer control display, menu-type interface, digital P.I.D. temperature control, under-mounted cylinder synchronous circuit, manual and foot pedal two test start modes, independent temperature control of the upper and lower heat sealing heads, a variety of customized heat cover forms, aluminum potting uniform temperature heating tube, quick-swap plug-in heating tube power connector, RS232 interface, anti-scald safety design, can effectively ensure the convenience and safety of user use.

Applications

It is suitable for the heat sealing test of various plastic films, plastic composite films, paper-plastic composite films, co-extrusion films, aluminized films, aluminum foils, aluminum foil composite films and other film-like materials.

Extended application: If the lid of the frozen cup, put the jelly cup into the opening of the lower head, the opening of the lower head and the outer diameter of the jelly cup are matched, the flanging of the cup mouth falls on the edge of the hole, the upper head is made round, and the heat sealing of the jelly cup is completed by pressing down (note: customized accessories are required) Plastic hose Put the tail of the plastic hose between the upper and lower heads, and heat seal the tail of the tube, so that the plastic hose becomes a packaging container.

Technical standards

The hot pressing sealing method is used to place the sample to be sealed between the upper and lower heat sealing heads, and the sealing of the sample is completed under the preset temperature, pressure, and time, and the instrument meets a variety of national and international standards: QB/T 2358, ASTM F2029, YBB 00122003.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
