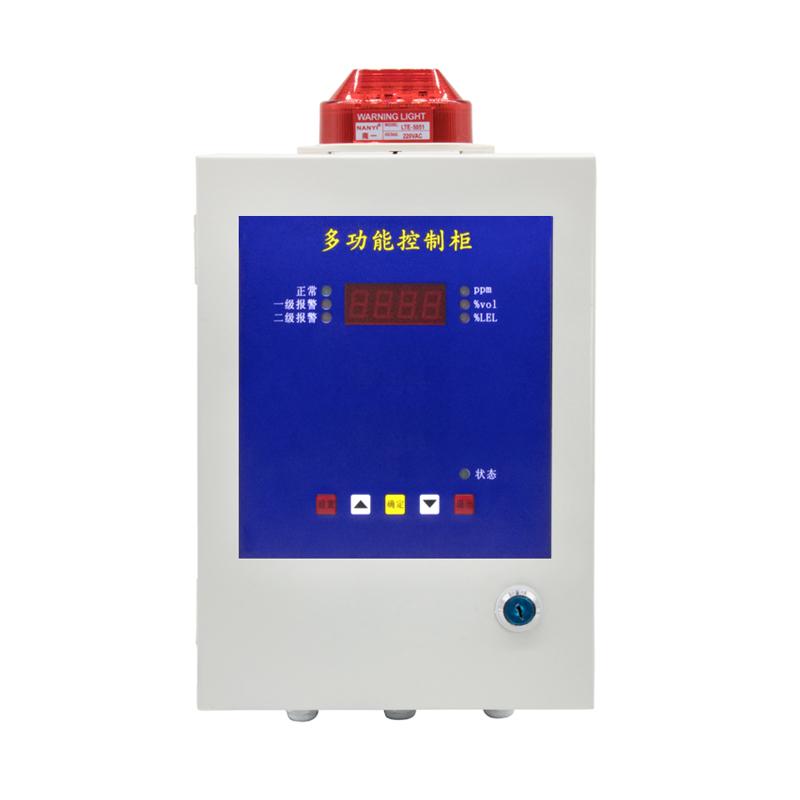

Baoshi'an BH-50 single-channel multi-function host alarm control cabinet
BOSEAN BH-50 single-channel multi-function host alarm control cabinet can freely choose the type and access port of the transmitter, and can carry out on-site detection and alarm through simple settings. The signal output of the BH-50 single-channel multi-function host alarm control cabinet is two-wire RS485 (MODBUS), Operating Temperature -20 ℃~ 50 ℃.
Bosean
BH-50
-
Empaer APEG-D-H2 (4G) Volkswagen Series Stationary Hydrogen Detector
$ 383.00 -
HONEYEAGLE HNAG1000-SO2 Online sulfur dioxide Detector 20000PPM
$ 682.00 -
GUOYUGRA GY/VGD-200-BCL3-G (0-10ppm) boron trichloride Detector
$ 879.00 -
Empaer SPES-CL2 series handheld chlorine concentration Detector
$ 344.00 -
KORNO GT-903-CO2-Y (infrared 2%) pump suction carbon dioxide Detector 0-2000ppm
$ 489.00
Introduction
The product is an intelligent controllable system for single/dual/four (4~20) mA/RS485 transmitter signal input developed by our company. The product has high stability. High accuracy and high intelligence, rich external control ports, users can freely choose the type of transmitter and access port, and can perform on-site detection and alarm through simple settings. The system has integrated sound and light alarm, and provides relay normally open/normally closed control terminals. The system is widely used in occasions where poisonous and harmful gases need to be detected. When the index of a certain gas to be detected on site exceeds or falls below the set standard, the system will perform a series of alarm actions, such as alarm, exhaust, trip, etc.
Detection principle
Collect standard 4~20mA signal input or RS485 communication input (optional), analyze and process to display the current gas concentration of each channel, and operate related alarm signals, and can also transmit information to the computer through RS485 bus.
Bosean BH-50 Single-channel multi-function host alarm control cabinetSpecifications
| LIST | VALUE |
|---|---|
| Working Voltage | AC 220V ± 10%, 50Hz |
| signal output | Two-wire RS485 (MODBUS) |
| Operating Temperature | -20~50℃ |
| Relay control port | Passive relay output, full load power 1KW |
| signal input | 3-Wire 4-20mA or 4-wire RS485 |
| System power consumption | ≤ 10W (no external equipment) |
| Environment humidity | 10-95% RH (non-condensing) |
| Dimensions | 38*21*8cm |
Bosean BH-50 Single-channel multi-function host alarm control cabinet Packing list
Complete-built unit X1, Encasement box X1, Charger X1, Calibration cover X1, Manual X1, Certificate X1, Warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
