JingTian NDJ-8S RTD Digital Rotational ViscoMeter

JINGTIAN NDJ-8S digital Rotational Viscometer with RTD temperature transducer

Shanghai JINGTIAN digital display Rotational Viscometer NDJ-8S is a digital display Viscometer, with RTD temperature transducer measuring range 20~2000000mPa·s, rotor specifications L1, L2, L3, L4 rotors each, reproducibility ± 0.5%, measurement accuracy ± 1%

Brand

SKU: NB034340

JingTian

Model

NDJ-8S RTD

Get Quote

JingTian shopSE

Information

Datasheet Video Catalog Manual

What else did others buy

Fungilab V-pad L Rotational Viscometer 6 million cP

$ 7715.00
NIRUN DV data collection and programmable analysis software

$ 538.00
TQC DV2700 Rotothinner Rotational Viscometer available in 3 different shafts

$ 6986.00
HUINUO NDJ-1S digital display Rotational Viscometer 100,000 CP

$ 397.00
NIRUN NTV-T2R Viscosity and temperature control machine 50-3.3 Mmpa.s

$ 5708.00

Genuinegoods

JingTian NDJ-8S RTD Digital Rotational ViscoMeterOverview
Specifications
Comments
FAQs

NDJ-8S RTD

Digital Rotational ViscoMeter

Introduction

The LCD of JINGTIAN NDJ-8S digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display Rotational Viscometer with a range of 20 to 2,000,000 mPa·s.

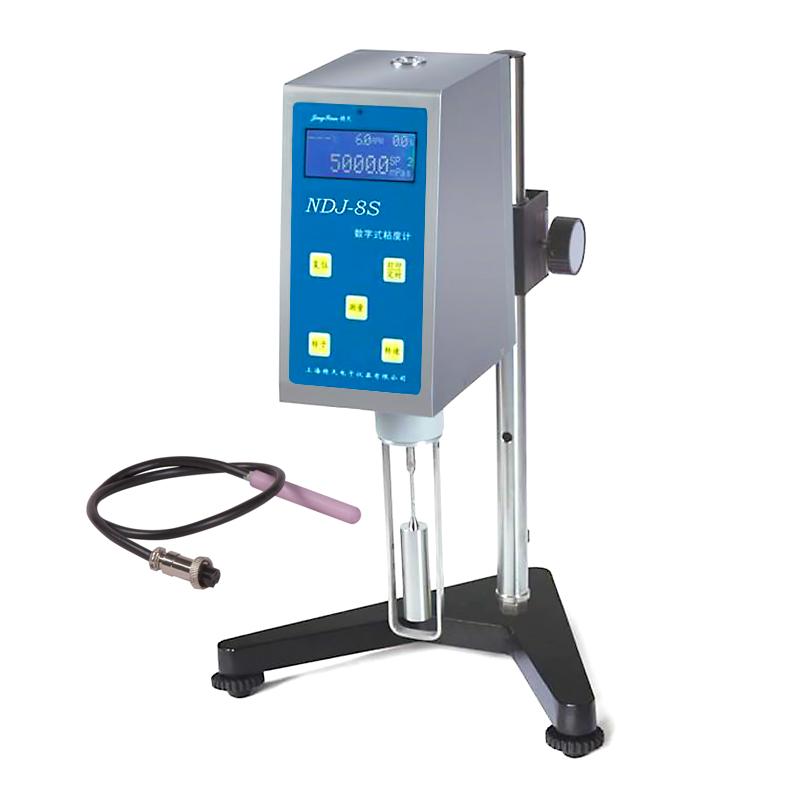

JINGTIAN NDJ-8S RTD Digital Display Rotary Viscometer Details Figure 1

JingTian NDJ-8S RTD Digital Rotational ViscoMeterSpecifications

LIST	VALUE
Display	digital display
Measuring range	20~2000000mPa·s
Rotor Specifications	L1#、L2#、L3#、L4#
Reproducibility	±0.5%F.S
Measurement Accuracy	±1%
Power	Dedicated power adapter (input 100~240V 50~60Hz)
Temperature transducer	RTD
Rotor speed	0.3/0.6/1.5/3/6/12/30/60rpm
Display information	Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc

JingTian NDJ-8S RTD Digital Rotational ViscoMeter Packing list

Host X1, RTD temperature probe X1, protection frame X1, rotor X1 (sleeve), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

I test the polymer here, the viscosity is about 10mpa.s, is it suitable for testing?

[A]

Sure.

[Q]

1~ 200,000 Viscometer for measuring cellulose, emulsion, etc. Which model is it?

[A]

That NDJ-5S and NDJ-8S should be fine.

[Q]

Which Viscometer is used for viscosity testing of salad dressing?

[A]

You can use NDJ-8S for this.

[Q]

What is the viscosity range of general water-based paints? I don't know what range to choose for the viscosity measurement of industrial water-based paints

[A]

Is there a rotor number, Rotation speed, temperature requirements, if not, NDJ series can.

[Q]

Can I get the limit value?

[A]

This effective range is 10-90%.
