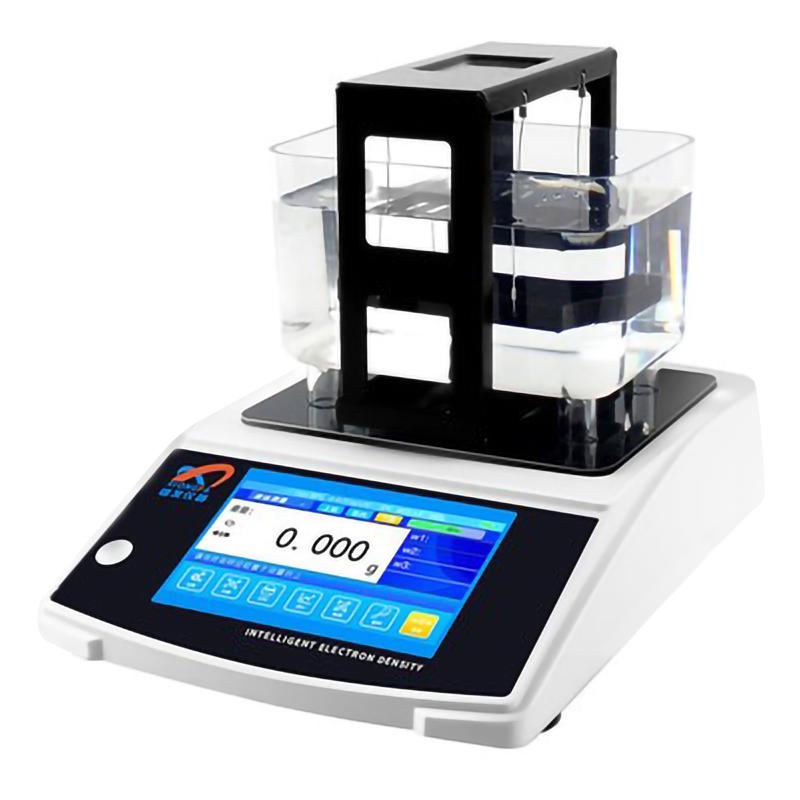

XIONGFA XFCNMD-2203S Precision Solid Density Meter 0.001~ 200g

Introduction

The precision solid density meter is based on ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T208, GB/T5163, GB/T 1933, GB/T4196, GB/T4123, GB/T5586, JB/T7780 adopt the principle of Archimedes' water displacement method.

Widely used to test any rubber, plastic, wire and cable, food, composite materials, cosmetics, shoe materials, glass, precious metal hardware, plastic, wire and cable, auto parts, magnetic iron core, Powder metallurgy, micro fans, tires, etc.; can directly read the average weight in air, average weight in water, density, volume, and percentage content of solid, granular, thin film, and floating samples.

Features

1. Using STMicroelectronics high-performance 32-bit ARM processor, the processing capacity is 100 times better than traditional instruments, and the operation accuracy is fast

2. Built-in large capacity rechargeable lithium battery

3. Using HBM sensor imported from Germany, the weighing is stable, the density value is accurate, the measurement accuracy is high, the repeatability is good, the density value is displayed quickly, the operation is simple, the time is fast, and no manual calculation is required.

4. Intelligent Pinyin Chinese character input, the printed content can be freely edited. Support ticket printing, label printing. Accurately record each of your measurement data; customize the printing title and company information, so that you can print as you like every time

5. Automatically save 100 sets of measurement data and perform statistical analysis on the data. Dynamic deletion, statistical printing, export to U disk (optional) can accurately and effectively record each measurement data of yours, freeing you from tedious measurement work.

Function

1. Built-in temperature sensor, which can automatically realize temperature compensation function

2.5-inch touch screen touch operation, easy to operate, built-in guided test step prompts, simplify and speed up the operation process

3. Solution compensation setting, use water as the medium, and other liquid mediums can also be used

4. Automatically store 100 sets of test values, which can realize automatic averaging of density

5. The upper and lower limits of product density can be set to judge whether the material is qualified or not, with a buzzer function

6. Standard RS232 printer interface, which can be connected to thermal printers, label printers and PCs

7. With the function of environment adjustment and actual water temperature compensation

Host X1, measurement sink X1, Density test bracket X1, forceps X1, 100G correction weight X1, floating body accessories X1, windproof dust cover X1, particle accessories X1, power transformer X1, manual certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
