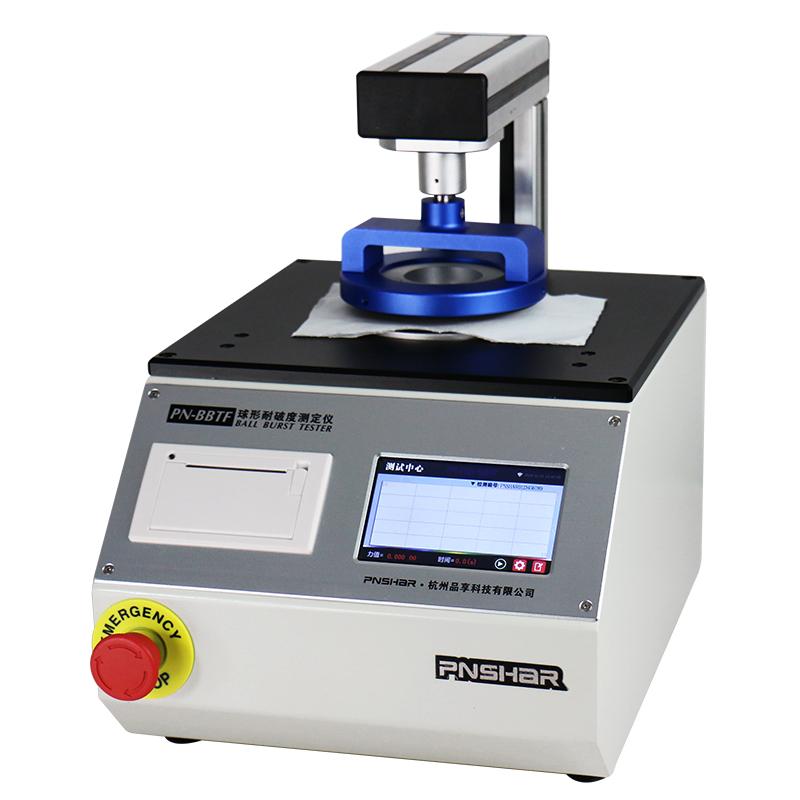

PNSHAR PN-BBTF Paper Spherical Burst Strength Tester

Introduction

PN-BBTF spherical bursting strength Tester is a new type of paper spherical bursting strength Tester developed by our company in accordance with the national standard GB/T 24328.7.

Paper refers to paper products processed from low-weight, dry-crinkled and certain "wrinkle-free" base papers, such as toilet paper, kitchen towels, paper handkerchiefs, paper facial tissues, paper napkins, hand towels, and wipes. These products can be single or multi-layer laminated, the paper can be formed into one or several layers, and the products can be sheet or roll, folded or unfolded, embossed or unembossed, printed or unprinted . The common basis weight of single-layer paper is 10g/m2~50g/m2. Paper products are made from paper base paper and processed into products consumed by end users.

GB/T 20810-2018 "Paper (including base paper)" stipulates that the spherical bursting strength value (finished layer) is greater than or equal to 1.5N, and the spherical bursting resistance is measured according to GB/T 24328.7 and measured according to the finished layer.

Implementation standards

GB/T 24328.7, ISO 12625.9

Features

1. Adopt new module circuit design, with WIFI Internet of Things function. After being connected to the Internet, the test results can be saved to the cloud server, and can be queried and generated through the dedicated QMS quality management system;

2. It adopts the transmission structure of ball screw and double guide, which has high transmission efficiency and accurate positioning;

3. Over-range prompt function to protect the sensor;

4. Adopt high-speed ARM processor, high degree of automation, fast data collection, fully automatic measurement, and intelligent judgment function;

5. Use 24-bit high-precision AD converter (resolution up to 1 / 10,000,000) and weighing sensor to ensure the speed and accuracy of instrument force value data collection;

6. Real-time display of force value and time curve;

7. It has statistical functions, showing the average value, maximum value, minimum value, bursting resistance index, standard deviation and coefficient of variation.

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
