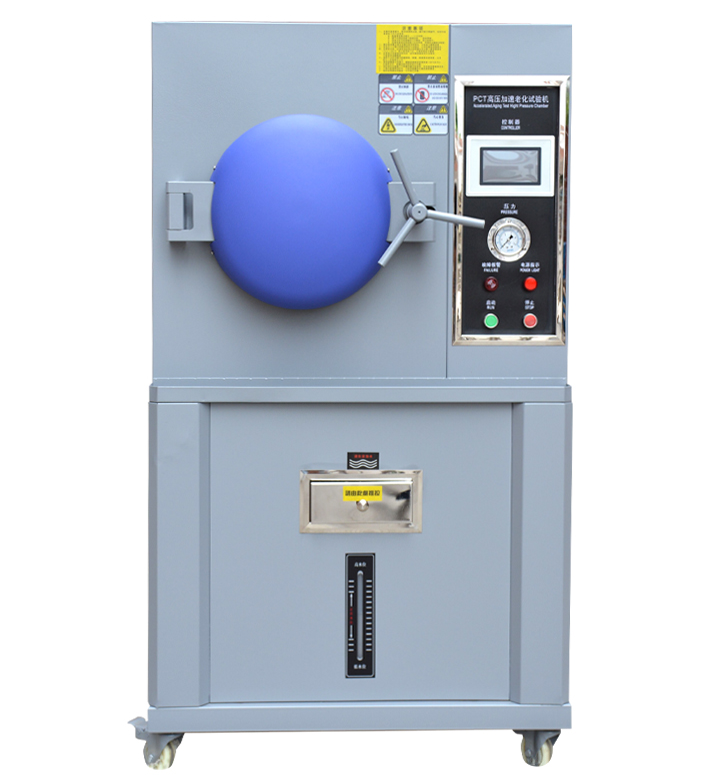

CHINA high Voltage cooking instrument NBC-PCT-25 PCT Heat aging Test Chamber High temperature and high Voltage accelerated aging box
The inner box size of CHINA high Voltage cooking instrument NBC-PCT-25 is 350xD500mm, which is suitable for high Voltage cooking or moisture absorption test of electricians, components, parts, metal materials, etc. The temperature measurement range is 100~132 ℃.
HuiTai-
HZAOC RLH-150 Hot Air Aging Oven, Ventilated Air Oven stainless steel turret
$ 4004.00 -
ZKHS QLH-225 Ventilation Conditioning Test Chamber 4.5KW/200 ℃
$ 4672.00 -
FARI FR-1220 Ventilation Conditioning Tester
$ 4688.00 -
FARI FR-1215 Thermal Conditioning Tester, High Temperature Circulating Oven
$ 2216.00 -
HZAOC RLH-800 Hot Air Aging Oven, stainless steel liner ventilation 8-20 times/hour 800L
$ 6957.00
Introduction
This equipment is mainly used to test the performance of products during storage, transportation and use in high temperature, high temperature, high humidity and pressure climate environments. It is mainly used to test electrical and electronic products, components, parts, metal materials and their materials in Test the physical and other related properties of the product under simulated climate conditions of high temperature, high temperature, high humidity and pressure. After the test, determine whether the performance of the product can meet the requirements through verification, so as to facilitate the design, improvement, verification and delivery of the product. Check for use. Sealing performance testing and accelerated life testing of related products.

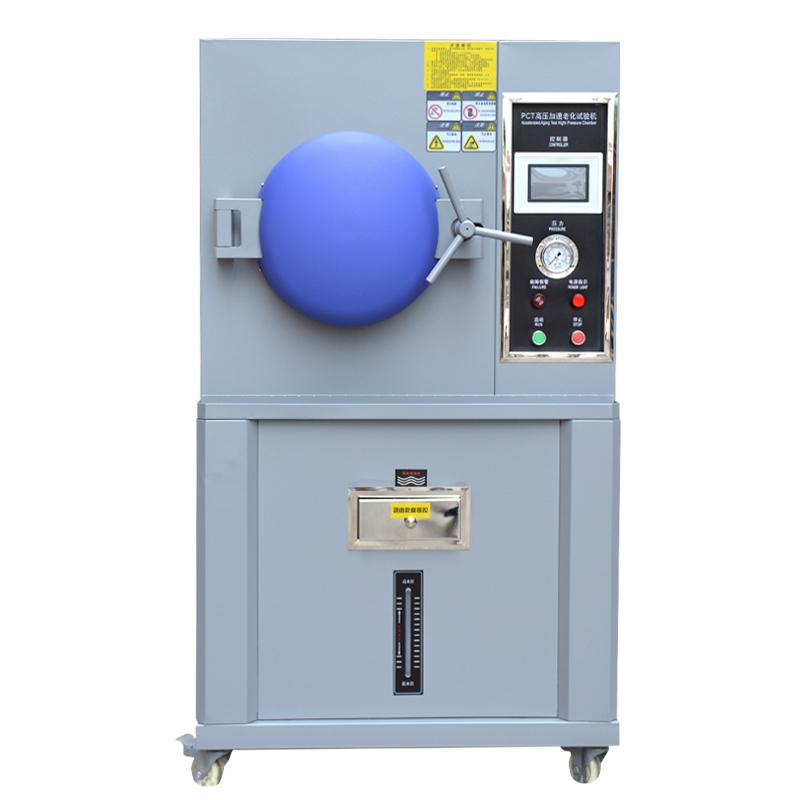

HuiTai NBC-PCT-25 High Voltage digesterSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | 100℃~132℃ |
| Volume | 350xD500mm |
| Humidity control range | 100%RH |
| Dimensions | 560*450*850mm |
| Temperature Fluctuation | ±0.5℃ |
| uniformity | ±1℃ |
| test time | 0~999h (adjustable) |
| Pressure range | 0~3kg/cm2 |
| Test method | Steaming/boiling two methods |
HuiTai NBC-PCT-25 High Voltage digester Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
