SHIPUXINXI CX-9800 Floor-mounted Full Spectrum Direct Reading Light spectrum Analyzer

Introducing the CX-9800 Floorstanding Full-Spectrum Direct Reading Optical Spectrum Optical Spectrum Analyzer

CX-9800 (L) floor-standing full-spectrum direct reading spectrum analyzer is the second generation of CCD spectrometer technology produced by our company with European technology, which is currently a professional and internationally recognized second-generation CCD spectrometer technology, which is widely used in metallurgy, casting, machinery, automobile manufacturing, aerospace, weapons, metal processing and other fields of production process control, furnace testing, and finished product inspection in the central laboratory. The instrument is small in size, good in stability, low in detection limit, fast in analysis, low in operating cost, easy to operate and maintain, and is an excellent choice for controlling product quality.

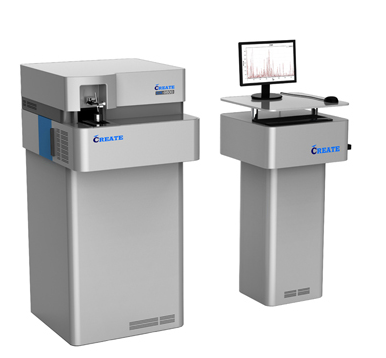

Pictures

Technological advantages

1. The world's professional second-generation CCD full-spectrum spectral manufacturing technology (digital technology replaces the old-fashioned large and bulky photomultiplier tube simulation technology), and the channel can be unlimited;

2. The introduction of European technology, synchronized with international spectrometer technology, domestic (CN) manufacturers who can produce vacuum CCD full-spectrum technology spectrometers;

3. Adopt vacuum constant temperature light chamber, stable, reliable and maintenance-free, and no longer use small double light chamber design to solve the technical problems of long and short wave elements;

4. There is no cost to change and increase the channel within the matrix

5. It is convenient to upgrade the multi-matrix, and there is no need to change and increase the hardware;

6. Excellent data stability, the same sample can be analyzed in different time periods, and good data consistency can be obtained;

7. Small size, light weight, easy to move and install;

8. High integration, high reliability and high stability;

9. Power saving, material saving, and energy consumption are only 50% of ordinary spectrometers.

Features

1. It can measure trace carbon (C), phosphorus (P) and sulfur (S), which is suitable for a variety of metal matrices, such as: iron-based, aluminum-based, copper-based, nickel-based, chromium-based, titanium-based, magnesium-based, zinc-based, tin-based and lead-based. The full-spectrum technology covers the scope of full element analysis, and the channel elements can be selected according to customer needs;

2. The analysis speed is fast, and the elemental composition of all channels can be measured within 20 seconds. For different analytical materials, by setting the pre-ignition time and marking, the instrument can achieve good analysis results in the shortest time;

3. The optical system adopts a vacuum constant temperature optical chamber, and the arc flame generated during excitation is directly introduced into the vacuum optical chamber by the lens to realize the optical path straight-through, eliminate the optical path loss, improve the detection limit, and the measurement results are accurate, and the reproducibility and long-term stability are very good;

4. The special optical chamber structure design makes the vacuum chamber volume smaller, and the Vacuum Pumping speed is less than half of that of ordinary spectrometers;

5. Automatic optical path calibration, the optical system automatically scans the spectral line to ensure the correctness of the reception and avoid the tedious peak scanning work. The instrument automatically identifies a specific spectral line, compares it with the original storage line, determines the drift position, and finds out the current pixel position of the analysis line for measurement;

6. Open electrode frame design, adjustable sample clamp, convenient for sample analysis of various shapes and sizes;

7. The working curve adopts international standard samples, pre-made working curves, which can be extended and expanded according to needs, and each curve is excited by up to dozens of standard samples to automatically deduct interference;

8. HEPS digital solid-state light source, adaptable to a variety of different materials;

9. Solid-state adsorption trap to prevent oil and gas from polluting the optical chamber and improve long-term operation stability;

10. Copper spark table base to improve heat dissipation and sturdy performance;

11. Reasonable argon gas circuit design shortens the argon flushing time when the sample is excited, saves argon for users, and argon consumption is less than half of that of ordinary spectrometers;

12. Tungsten material electrode is adopted, the service life of the electrode is longer, and the electrode self-purge function is designed, which makes it easier to clean the electrode;

13. High-performance DSP and ARM processor, with ultra-high-speed data acquisition and control functions, and automatic real-time monitoring of the operating status of modules such as optical chamber temperature, vacuum, argon pressure, light source system and control system;

14. Ethernet connection is used between the instrument and the computer, which has good anti-interference performance, and the external computer upgrade has nothing to do with the instrument configuration, so that the instrument has better applicability;

15. The core components are all imported to ensure the good quality of the instrument.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
