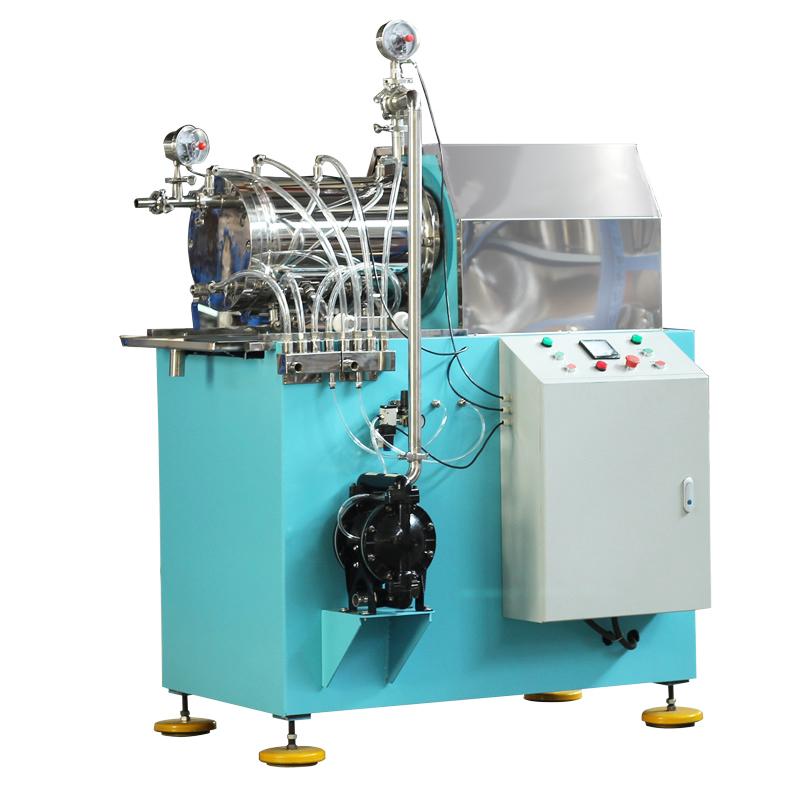

Muxuan WS-10 Disc Horizontal Sand Mill 11kw/10L

Equipment introduction

The Horizontal Disc Bead Mill is a closed wet grinding equipment with continuous Operating Mode. The equipment is easy to operate, has good reliability and complete specifications. It is one of the most commonly used wet grinding equipment in the market. Its performance and structure are very mature. and durability; temperature and pressure monitoring and protection can ensure product quality; zirconium oxide beads are used, which have the advantages of high grinding efficiency, good grinding fineness, wide application range and good wear resistance.

Applicable materials

[Material viscosity]: ≤20000cps [Production capacity]: 20-2000L [Application]: It is suitable for the dispersion and grinding of materials in industries such as biology, medicine, cosmetics, food, paint, ink, color paste, dyes, and pesticides.

[Applicable materials]: materials whose viscosity is below 20000cps and require high grinding fineness; such as latex paint, industrial paint,

More than a thousand kinds of materials such as color paste, water-based ink, pesticide suspending agent, lithium battery slurry, etc.

Principle

The Diaphragm Pump forms circular grinding between the material in the material tank and the grinding chamber. The grinding medium with high filling rate in the cavity is driven by the rotation of the dial to generate irregular movements in all directions. The particles in the material are constantly collided and rubbed by the grinding medium. At the same time, the screen separates the material from the grinding medium, and the material is continuously from The circulation flow from the material tank to the grinding chamber achieves the purpose of reducing the particle size and narrowing the particle size range.

Advantages

1. Low energy consumption ratio, high cost performance

The equipment drive adopts the motor to transmit the power to the main shaft through the large and small pulleys, which is easy to start; the grinding disc adopts a special disc structure, which not only brings high efficiency, but also consumes less power; it is a product with high cost performance in the grinding machine equipment.

2. Easy to operate and clean

The equipment is equipped with an on-site operation box, which is integrated with the frame and is easy to operate; with a bead receiving bucket, the grinding chamber and the frame are connected and disassembled conveniently, and a pulley device is provided to separate the cylinder, which can effectively clean the cavity and zirconium beads Clean, used for materials of different colors and varieties.

3. Product stability

The grinding chamber is equipped with a special cooling water jacket, which is cooled by water when the equipment is running, which has a good cooling effect. The normal temperature rise is less than 10º. The equipment is equipped with temperature and pressure monitoring, which can set the "protection value" to ensure that the product quality.

4. Complete specifications, non-standard customization

The equipment specifications range from 10L to 100L, and the specifications are complete; non-standard explosion-proof types can be customized, and the polyurethane lining of the grinding chamber can be customized.

Comparison Table of Parameters of Disc Horizontal Sand Mill

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
