Taylor Hobson Form Talysurfing i Inductance asperity Profile Gauge

Introducing the Form Talysurfi Inductive Roughness Profiler

High-resolution measuring system for surface roughness and profile measurement

It is an excellent choice for many applications in automobiles, bearings, gears and other industries.

Surface roughness and profile measurement in one

The Form Talysurf i-Series is a high-precision instrument capable of measuring both surface roughness and profile. The system's low-noise and high-resolution sensors ensure measurement integrity, and by selecting different types of sensors, it offers a wide range of options for a wide range of applications.

Tailored to your application

From screw threads to crankshafts, cylinder blocks to valve ducts, choose the configuration that's right for you to meet your application needs.

Temperature compensation

As standard on all i-Series, this unique system monitors and responds to changes in ambient temperature, ensuring maximum measurement stability and integrity in any environment.

Repeatable measurable results

The combination of many years of industry experience, expertise in ultra-precision machining, and FEA-optimized design provides low noise and near-good mechanical measurement accuracy. Traceable standards and proprietary algorithms can further eliminate the influence of the instrument itself, resulting in more accurate measurement results.

Very good measurement ability

Surface Roughness Details - Low-noise, high-resolution sensors ensure roughness, ripple, and roughness measurements in a single measurement.

Contour - The calibration technology enables accurate measurements of radius, angle, height, length, distance, etc.

3D - With the optional automatic Y-stage and Talymap software, you can easily convert traditional 2D measurements into 3D measurement tools

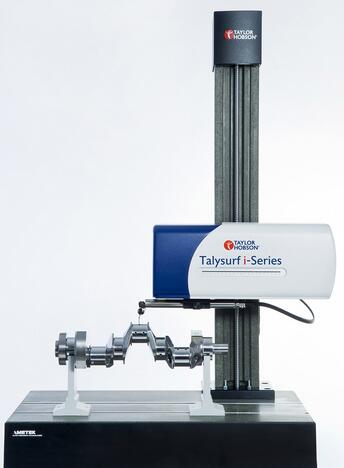

Illustration of the Form Talysurf i Inductive Roughness Profiler

Applications include:

Cylinder head - valve surface roughness, valve angle

Roller bearings - surface roughness, shape error and DXF comparison

Gears - surface roughness, root radius and shape deviation

Crankshaft - surface roughness, chamfer radius and DXF comparison

Ball screws - spacing, angles, shapes, and line sizes

Q-Link production interface

A simplified interface designed specifically for the production environment

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
