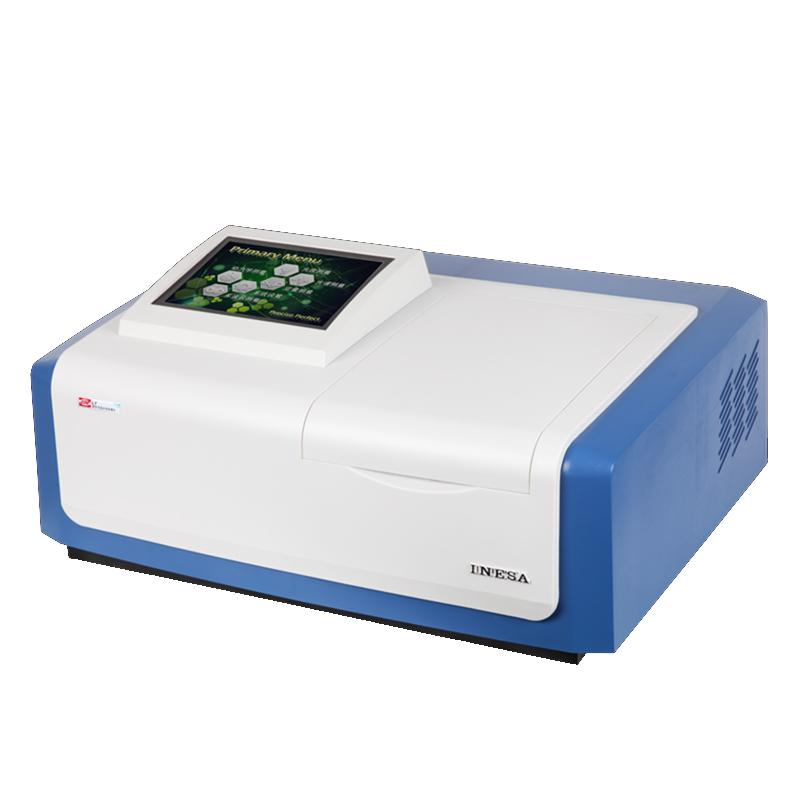

INESA SHANGFEN L3S visible Spectrophotometer proportional double beam of light

Optical inspection accuracy and stability with dual beams of light and high-performance gratings. Its 8-inch touch screen is easy to operate, supports advanced functions such as full-band scanning and dynamic time scanning, and has USB interface and data storage and processing capabilities

Brand

SKU: NB035525

ShangFen

Model

Get Quote

ShangFen shopSE

Information

Datasheet Video Catalog

What else did others buy

YueFeng 770 Ultraviolet-visible spectrophoto-meter

$ 2169.00
JINGHUA 723 Automatic visible spectrophotometer High performance, low stray light, automatic wavelength setting

$ 770.00
JINGHUA 7600S Dual beam of light UV-Visible Spectrophotometer Wavelength Accuracy +/- 0.3nm

$ 5045.00
JINGHUA 759 UV-Visible Spectrophotometer Wavelength range: 190nm~ 1100nm

$ 2403.00
YueFeng FSP6642 Flame Spectrophotometer Test Potassium/Sodium/Lithium/Barium

$ 3413.00

Genuinegoods

ShangFen L3S Visible Spectrophotometer Overview
Specifications
Comments
FAQs

L3S

Visible Spectrophotometer

Introduction

The L3S visible Spectrophotometer adopts a professional proportional monitoring dual-beam optical path system and low-noise circuit design, which has good reliability and stability. It can meet the application needs from daily analysis to scientific research.

main feature

Adopting professional optical, mechanical and electrical design, it has stable performance and ultra-high cost performance.
It adopts 8-inch color touch LCD display, which is flexible and convenient to operate.
It adopts a proportional monitoring double-beam optical path structure and is equipped with a high-performance "blazed holographic grating", a low stray light and high-resolution monochromator, which has outstanding optical precision, measurement accuracy, reproducibility and stability.
Unique automatic adjustment "0%" to "100%", automatic 8-cell cuvette holder.
It has full-band scanning (S model only), sub-band scanning (S model only), kinetic time scan, and various advanced functions such as GOTOÎ», linear regression, concentration direct reading, and peak and valley detection.
Using a thermal plotter (optional), it can perform data printing, spectral scanning (S model only), fixed-wavelength long-term scanning, linear regression and other curve drawings.
It has a USB interface and can directly interact with a PC, which strengthens the processing functions of the instrument such as detection data and scanned spectra, realizes mass storage of test documents, and also provides convenience for usersâ secondary development.
Professional power-off protection measures can memorize measured data, scanning spectra, regression equations, instrument correction values, etc., and enable quick initialization into the test state after power-on.

Optional

thermal graphics printer

UVwin8 visible spectrum software

Other specifications of cuvette holders are optional

other

Light source: Imported 12V 20W tungsten halogen lamp

Power supply Voltage: AC220VÂ±22V 50HzÂ±1Hz

Rated power: 120W

Standard 1cm cuvette holder

ShangFen L3S Visible Spectrophotometer Specifications

LIST	VALUE
Optical inspection system	Proportional double beam of light
monochromator	Czerny - Turner
focal length	160mm
grating line number	1200 gr/mm
Detector	Import Detector
Light spectrum bandwidth	1.8nm
wavelength setting	touchscreen input
Wavelength range	325~1100nm
Wavelength Accuracy	±0.5nm
Wavelength Repeatability	≤0.2nm
Scanning speed	Fast, Medium, and Slow (limited to S models)
Light source switching wavelength	340nm
stray light	≤ 0.05% (T) (measured as NaNO2 at 360nm)
Photometric range	0.0~200.0%T、-0.301~4.000A、0.000~9999C
Photometric Accuracy	±0.5%T；±0.004Abs（0 ~ 0.5A）；±0.008Abs（0.5 ~ 1A）
Luminosity Repeatability	≤0.2%T；0.002A(0~0.5A)；0.004A(0.5~1A)
Baseline flatness	≤ +/- 0.002A (limited to S models)
Noise level	100 (T%) ≤ 0.2(T%)；0(T% ) ≤ 0.1(T%)
Baseline drift	0.0009Abs/0.5h (at 500nm after 2h of startup) (limited to S models)

ShangFen L3S Visible Spectrophotometer Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
