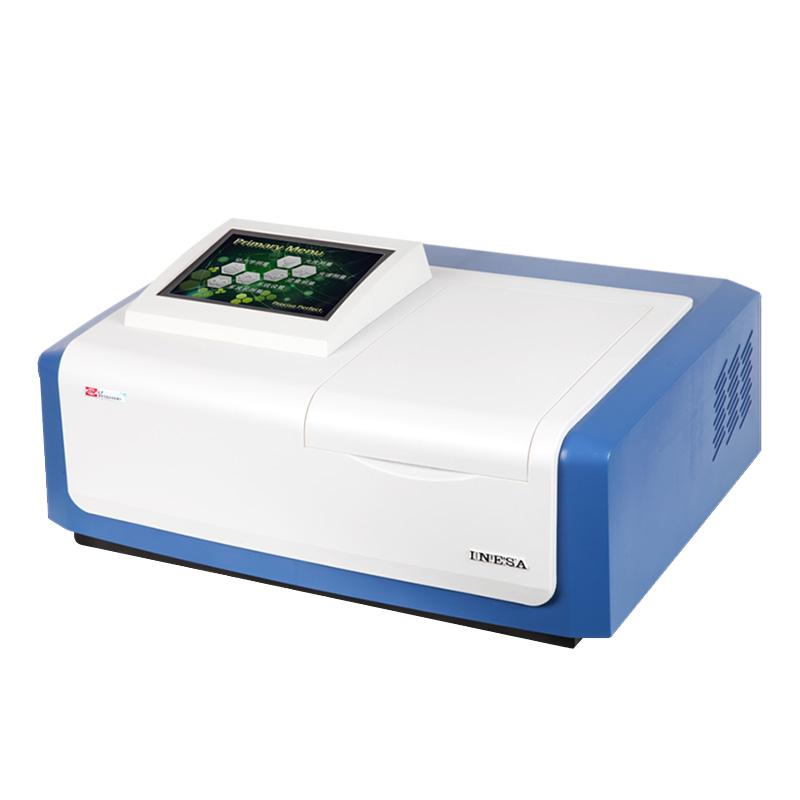

INESA SHANGFEN L5S UV-Visible Spectrophotometer

Introduction

L5S UV/VIS Spectrophotometer adopts professional proportional monitoring dual beam optical path system, low noise circuit design, and has good reliability and stability. It can meet the needs of applications ranging from daily analysis to scientific research.

Features

• The 8-inch color touch LCD display is flexible and convenient to operate.

• The monochromator with high stray light and high resolution adopts a proportional monitoring dual-beam optical path structure and is equipped with a high-performance "shining holographic grating", which has outstanding optical accuracy, measurement accuracy, reproducibility and stability, and has a super high cost performance.

• With unique auto-adjustment "0" adjustment "100"%, automatic 8-cell cuvette rack.

• It has various advanced functions such as full-band scanning (S only), sub-band scanning (S only), kinetic time scanning, and GOTOλ, linear regression, concentration direct reading, peak and valley detection, etc.

• Equipped with a thermal plotter, it can draw curves such as data printing, spectral scanning (limited to S models), fixed-wave long-term scanning, and linear regression.

• With USB interface, it can directly interact with the PC, which strengthens the detection data of the instrument, and through the optional data software, it can directly scan the spectrum and other processing functions, realizes the massive storage of test documents, and also provides convenience for the user's secondary development.

• Professional power-off protection measures, which can memorize the measured data, scanning spectrum, regression equation and instrument correction value, etc., and realize the rapid initialization of the boot into the test state.

• The instrument adopts high-energy long-life flange positioning deuterium lamp and imported tungsten lamp. When the deuterium lamp of the instrument needs to be replaced, only two flange positioning screws need to be removed and installed to ensure that the lamp source is in a satisfactory position without cumbersome optical path adjustment.

Matching

Thermal Plotting Printer

Other cuvette racks are optional

UVwin8 ultraviolet spectroscopy software

other

A 1cm cuvette holder is included as standard

Power supply Voltage: AC220V±22V 50Hz±1Hz

Rated power: 200W

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
