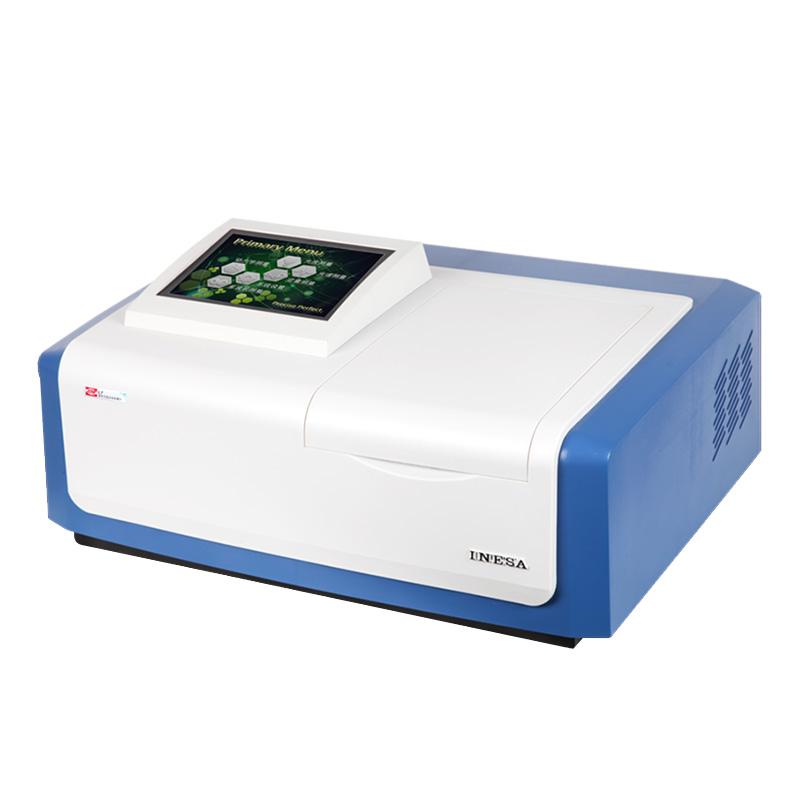

INESA SHANGFEN L6 UV-Visible Spectrophotometer

Introduction

The L6 UV/VIS Spectrophotometer adopts a professional proportional monitoring dual-beam optical path system and a low-noise circuit design, which has good reliability and stability. It can meet the needs of applications ranging from daily analysis to scientific research.

Features

• It adopts 8-inch color touch LCD display, which is flexible and convenient to operate.

• The monochromator with high resolution of low stray light using a proportional monitoring dual-beam beam structure and a high-performance "shining holographic grating" has excellent optical accuracy, measurement accuracy, reproducibility and stability, and has a high cost performance.

• Unique auto-adjust "0 t%" adjust "100 t%", automatic 8-cell cuvette holder.

• It has various advanced functions such as kinetic time scanning, as well as GOTOλ, linear regression, direct concentration reading, peak-to-valley detection, etc.

• Equipped with a thermal plotter, it can draw curves such as data printing, fixed-wave long-term scanning, and linear regression.

• With USB interface, combined with UVwin8 ultraviolet spectroscopy software, it can directly interact with the PC, which strengthens the processing functions of the instrument's detection data, scanning spectrum, etc., realizes the massive storage of test documents, and provides convenience for users' secondary development.

• Professional power-off protection measures, which can memorize the measured data, scanning spectrum, regression equation and instrument correction value, etc., and realize the rapid initialization of the boot into the test state.

• The instrument adopts high-energy imported long-life flange positioning deuterium lamp and imported OSRAM tungsten lamp. When the deuterium lamp of the instrument needs to be replaced, only two flange positioning screws need to be removed and installed to ensure that the lamp source is in a satisfactory position without cumbersome optical path adjustment.

Matching

Thermal Plotting Printer

UVwin8 ultraviolet spectroscopy software

Other cuvette racks are optional

other

A 1cm cuvette holder is included as standard.

Power supply Voltage: AC220V±22V 50Hz±1Hz

Rated power: 200W

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
