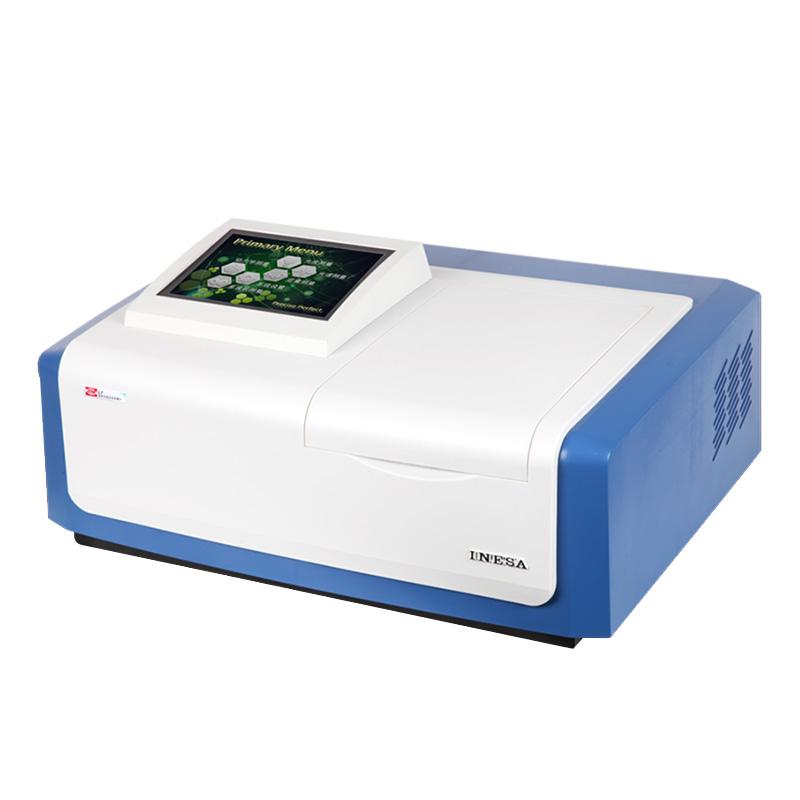

INESA SHANGFEN L6S UV-Visible Spectrophotometer

SHANGFEN L6S UV-Visible Spectrophotometer monochromator Czerny-Turner, focal length 160mm, grating 1200 lines/mm, Detector imported Detector, Light spectrum Bandwidth 1.8nm, L6S UV-Visible Spectrophotometer adopts 8-inch color touch LCD display, flexible and convenient operation.

Brand

SKU: NB035535

ShangFen

Model

Get Quote

ShangFen shop

Information

Datasheet Catalog

What else did others buy

YueFeng FP6420 Flame photometer K: 0.0~10.0mmol/L

$ 1283.00
JINGHUA 723 Automatic visible spectrophotometer High performance, low stray light, automatic wavelength setting

$ 770.00
JINGHUA H300 Dual beam of light Spectrophotometer Wavelength range 190nm-1100nm

$ 2636.00
JINGHUA 759MC UV-Visible Spectrophotometer Wavelength range: 190nm~ 1100nm

$ 3149.00
YueFeng 723S (PC) Visible Spectrophotometer 325nm~ 1100nm

$ 972.00

Genuinegoods

ShangFen L6S UV-Visible SpectrophotometerOverview
Specifications
Comments
FAQs

L6S

UV-Visible Spectrophotometer

Introduction

The L6S UV/VIS Spectrophotometer adopts a professional proportional monitoring dual-beam optical path system and a low-noise circuit design, which has good reliability and stability. It can meet the needs of applications ranging from daily analysis to scientific research.

Features

It adopts 8-inch color touch LCD display, which is flexible and convenient to operate.
The monochromator with high resolution of low stray light using a proportional monitoring dual-beam beam structure and a high-performance "shining holographic grating" has excellent optical accuracy, measurement accuracy, reproducibility and stability, and has a high cost performance.
Unique auto-adjust "0T%" adjust "100T%", automatic 8-cell cuvette holder.
It has various advanced functions such as full-band scanning (S only), sub-band scanning (S only), kinetic time scanning, and GOTOλ, linear regression, direct concentration reading, peak-to-valley detection, etc.
Equipped with a thermal plotter, it can be used for data printing, spectral scanning (limited to S model), fixed-wave long-term scanning, linear regression and other curves.
With USB interface, combined with UVwin8 ultraviolet spectroscopy software, it can directly interact with the PC, which strengthens the processing functions of the instrument's detection data, scanning spectrum, etc., realizes the massive storage of test documents, and provides convenience for users' secondary development.
Professional power-off protection measures, which can memorize the measured data, scanning spectrum, regression equation and instrument correction value, etc., and realize the rapid initialization of the boot into the test state.
The instrument adopts high-energy imported long-life flange positioning deuterium lamp and imported OSRAM tungsten lamp. When the deuterium lamp of the instrument needs to be replaced, only two flange positioning screws need to be removed and installed to ensure that the lamp source is in a satisfactory position without cumbersome optical path adjustment.

Matching

Thermal Plotting Printer

UVwin8 ultraviolet spectroscopy software

Other cuvette racks are optional

[L6S PAD] is equipped with a 10.1-inch tablet, which can realize wireless control, massive data storage and wireless data transmission for L6S.

other

A 1cm cuvette holder is included as standard.

Power supply Voltage: AC220V±22V 50Hz±1Hz

Rated power: 200W

ShangFen L6S UV-Visible SpectrophotometerSpecifications

LIST	VALUE
Optical inspection system	Proportional double beam of light
monochromator	Czerny - Turner
focal length	160mm
grating line number	1200 gr/mm
Detector	Import Detector
Light spectrum Bandwidth	1.8nm
wavelength setting	touchscreen input
Wavelength range	190~1100nm
Wavelength Precision	±0.3nm
Wavelength Repeatability	≤0.1nm
Scanning speed	Fast, Medium, and Slow (limited to S models)
Light source switching wavelength	340nm
stray light	≤ 0.03% (T) (at 220 nm, as Nal) (at 360 nm, as NaNO2)
Photometric range	0.0~200.0%T、-0.301~4.000A、0.000~9999C
Photometric Precision	±0.3%T；±0.002Abs（0 ~ 0.5A）；±0.004Abs（0.5 ~ 1A）
Luminosity Repeatability	≤0.15%T；0.001A(0~0.5A)；0.002A(0.5~1A)
Baseline flatness	≤±0.0015A(200nm~1090nm)(...
Noise level	0.15%T
Baseline drift	0.0009Abs/0.5h (limited to S models) (2h after power on, at 250nm and 500nm)

ShangFen L6S UV-Visible Spectrophotometer Packing list

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
