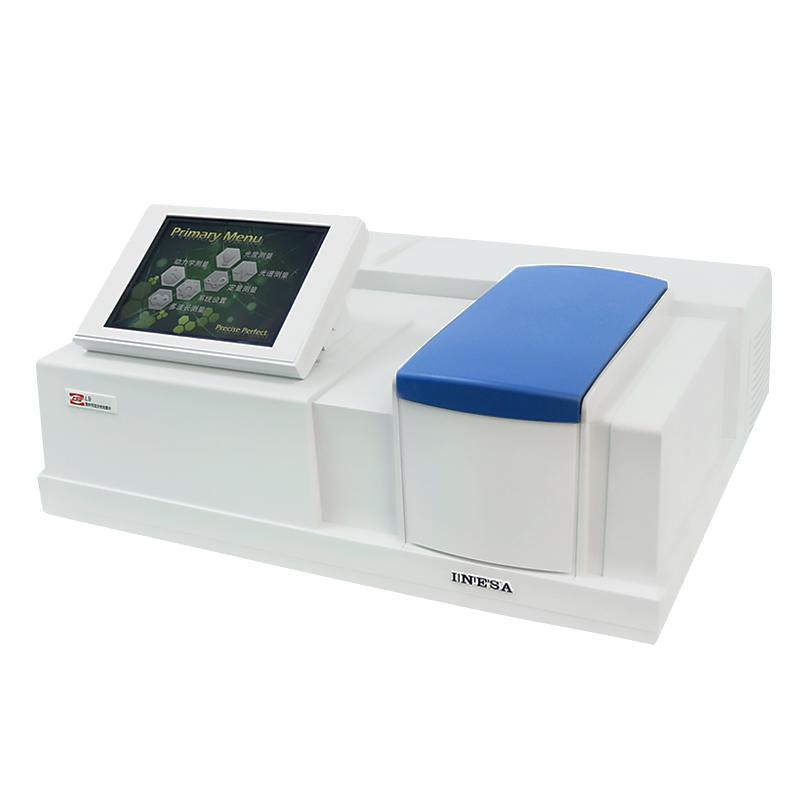

INESA SHANGFEN L9 Dual beam of light UV-Visible Spectrophotometer

SHANGFEN L9 dual beam of light UV-Visible Spectrophotometer metering method dual beam of light, monochromator Czerny - Turner, focal length 200mm, grating 1600 lines/mm, L9 dual beam of light UV-Visible Spectrophotometer with USB communication port, can directly export data through U disk, standard 1cm Colorimetric dish holder.

Brand

SKU: NB035539

ShangFen

Model

Get Quote

ShangFen shop

Information

Datasheet Catalog

What else did others buy

Genuinegoods

ShangFen L9 Dual beam of light UV-Visible SpectrophotometerOverview
Specifications
Comments
FAQs

Dual beam of light UV-Visible Spectrophotometer

Introduction

The L9 dual-beam UV-Vis Spectrophotometer adopts a new optical platform, 5 levels of adjustable bandwidth, ARM chip control and processing data, 8-inch color touch screen display menu, analysis map and data, and easy human-computer interaction. The instrument has the functions of photometry, spectral measurement, quantitative analysis, kinetic analysis, multi-wavelength measurement and so on. The products are used in product inspection, biochemistry, environmental monitoring, commodity inspection, petrochemical industry and other fields, and are the basic equipment required for quality control, technical appraisal and scientific research.

Features

The new optical platform enables the host of the instrument to have excellent optical performance and metering performance, low stray light and noise, high metering accuracy and stability.
The unique deuterium lamp and tungsten lamp installation, automatic light source switching and automatic finding of the center position of the Operating Mode, so that the user can operate the instrument and maintain the replacement light source more convenient, correct and safe.
Professional hardware and software design enables the instrument to have powerful spectral data processing and storage functions. Automatic scanning measurement spectra, multi-wavelength (1~3λ) determination, kinetic determination, 1~3 curve fitting, 1~4th derivative spectra, access to printed spectra and analysis data.
It adopts 8-inch color touch screen, good man-machine dialogue interface, and easy operation.
Imported long-life deuterium lamp and imported OSRAM tungsten lamp
With USB communication port, data can be exported directly through a USB flash drive, and a 1cm cuvette holder is standard.

Matching

UVwin8 ultraviolet spectroscopy software

5cm or 10cm cuvette holder

[L9 PAD] is equipped with a 10.1-inch tablet computer, which can realize wireless control, massive data storage and wireless data transmission of L9.

ShangFen L9 Dual beam of light UV-Visible SpectrophotometerSpecifications

LIST	VALUE
Optical inspection system	Double beams of light
monochromator	Czerny - Turner
focal length	200mm
grating line number	1600 gr/mm
Detector	Import Detector
Light spectrum Bandwidth	0.5nm、1nm、2nm、4nm、5nm
wavelength setting	touchscreen input
Wavelength range	190~1100nm
Wavelength Precision	+/- 0.3Nm (measured ≤ +/- 0.2nm)
Wavelength Repeatability	≤0.1nm
Scanning speed	Fast, medium, slow.
Light source switching wavelength	340nm
stray light	≤ 0.02% (NaI at 220 nm) (NaNO2 at 360 nm)
Photometric range	0.0~200.0%T、-0.301~4.000A、0.000~9999C
Photometric Precision	±0.3%T ±0.002Abs（0 ~ 0.5A） ±0.004Abs（0.5 ~ 1A）
Luminosity Repeatability	≤0.15%T；0.001A(0~0.5A)；0.002A(0.5~1A)
Baseline flatness	≤ ±0.0008A
Noise level	0.1%T
Baseline drift	0.0003 (A/h) Measured at wavelengths of 250nm and 500nm (warm up for 2 hours on)
Power supply Voltage	AC220V±22V 50Hz±1Hz
Power	200W

ShangFen L9 Dual beam of light UV-Visible Spectrophotometer Packing list

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
