PES film small coater Spreader vermiculite dispersion 6μm
This small film coater is used for scraping vermiculite dispersion on PES film, Spreader 6 micron wet-film vermiculite film, standard Japanese OSP6 rod, is a vacuum heating adsorption integrated laboratory Film Applicator.
zy
TBJ-X3+OSP-6/400
-
HuiNuo TM1300Pro/01D Floor type bar heating Vacuum chuck coater 100 * 90cm
Login -
HuiNuo TM3300AK/02 Perovskite Special Automatic Film Applicator with Air Knife + Air Knife Holder 40 * 30cm
$ 5512.00 -
China TBJ-B2-DJ5 Floor drawdown Bar & blade Film Applicator Coating size 600 * 700mm
$ 7066.00 -
China TBJ-B3-DJ1 Heating Removable Drawdown blade Lab Film Applicator with Heating Automatic Film Applicator
$ 5325.00 -
China TBJ-X1 Vacuum chuck Drawdown blade Film Applicator Lithium battery small coater
$ 2791.00
product description
Vermiculite dispersion is vermiculite water obtained by grinding and homogeneously dispersing vermiculite. Vermiculite has a thermal insulation effect. A coating experiment was conducted on a PES film with a coating thickness of 6 microns to prepare a vermiculite composite film.
This small film coating machine set is used to scrape-coat vermiculite on PES film.Dispersion coating equipment. The TBJ-X3 experimental film coating machine is a four-in-one coating machine with vacuum adsorption and heating functions. It is also equipped with an imported OSP No. 6 rod and a domestic (CN) wire rod, with a heating temperature of 200℃. Using imported accessories, the coating accuracy can reach 1μm.
This film coating machine is equipped with imported OSP wire rod as standard, which is used for scraping and coating 6μm thick vermiculite wet film.
Features
The small film coating machine comes standard with imported high-precision wire rods
With 200℃ heating function
With vacuum adsorption function
By controlling the speed and stable pressure, the coating effect is ensured, and the uniformity and stability of the coating are ensured.
Coating experiments can be carried out on various flat materials such as paper, plastic, metal, PVC, PET, cloth, and aluminum alloy plates.
Coating machine type selection table
| Optional configuration functions of coating machine | Main application options |
| Wire rod type | Ultra-thin/high-precision coating, requiring multiple coatings (accuracy up to 0.1μm) |
| scraper type | High viscosity samples, large film thickness, and large particle fineness |
| Heating type | Lithium batteries/glue and other samples that need to be coated at a certain temperature (temperature up to 200℃) |
| Vacuum adsorption | Film, paper and other substrates that are not easy to flatten |
| Note: The fabric is breathable, so there is no need to choose the vacuum type. For paper that is difficult to flatten, you need to choose the vacuum adsorption type. | |
*All configuration functions can be freely combined and selected, such as wire rod type, wire rod + scraper, wire rod + heating, scraper + heating, wire rod + scraper + heating + vacuum adsorption, scraper + vacuum adsorption, etc. The specifications are not suitable. NBCHAO supports customization.

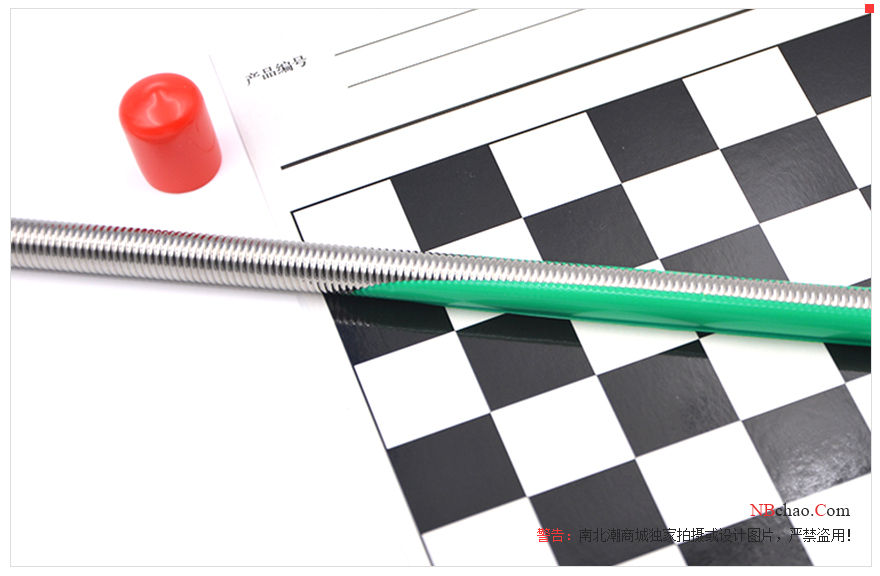

Why do we need imported wire rods?
The experimental coating effect is the result of the joint action of the coating machine and the wire rod. The automatic coating machine can control the speed and pressure of coating, while the wire rod coater/preparator determines the accuracy of the coating film. The coating accuracy of the imported wire rod can be as high as 0.1μm, and the matching imported wire rod can achieve ultra-thin and high-definition coating. Precision coating.

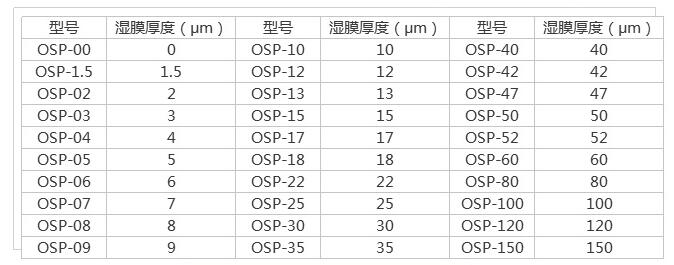

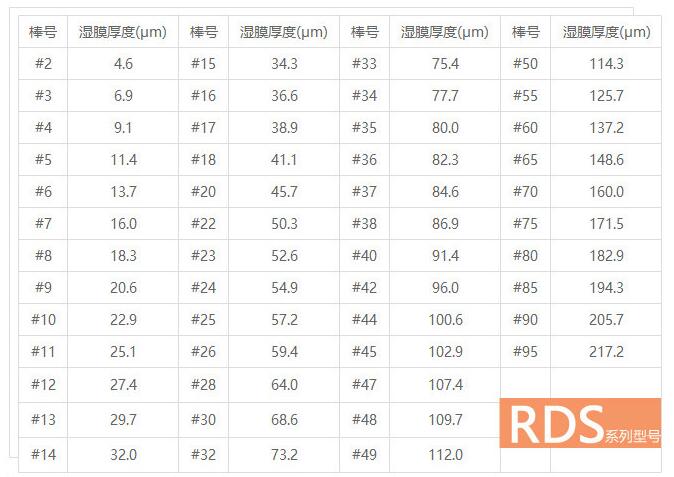

The coating thickness specification selection of imported wire rods is as follows:
For more coating thickness requirements, please consult the mall customer service.
Optional
|
|
|

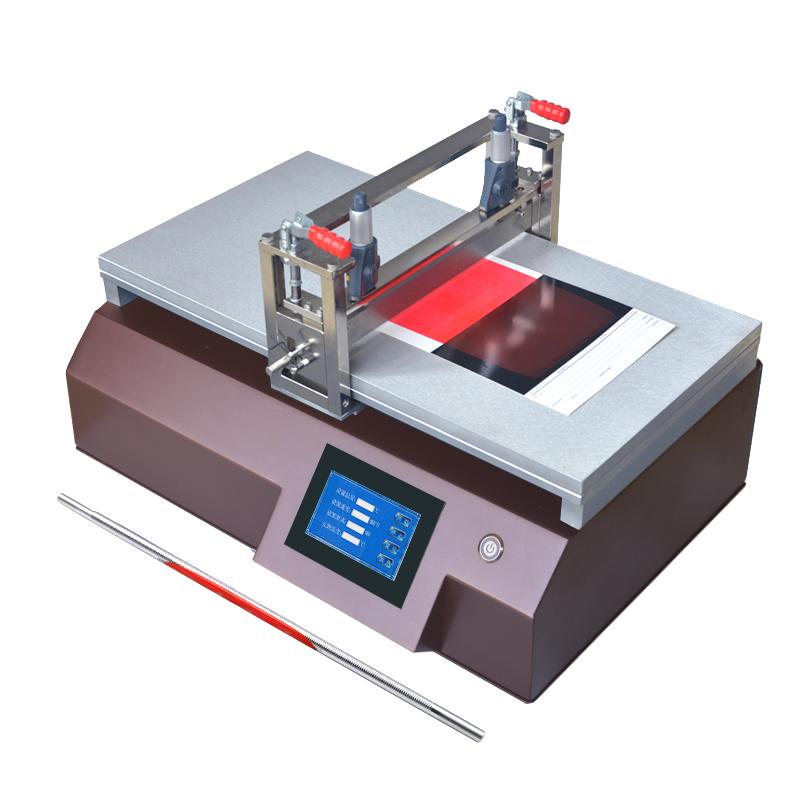

zy TBJ-X3+OSP-6/400 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Drawdown blade Accuracy | ±0.003mm |
| Spreader thickness range | 0~10Mm drawdown blade can be lifted |
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 300*400mm |
| Spreader speed | Digital display, different speeds |
| Vacuum Area | 300 * 400Mm (can be customized) |
| Vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Drawdown blade | length |
| Coating rod specification | 1 imported 6μm wire rod + 1 China wire rod |
| Host Power | 220V 50Hz |
| Dimensions | 630*410*520mm |
| Weight | Net Weight 65KG |
| speed control | Infinitely variable speed |
| Bottom plate material | aluminum alloy |
| Heating temperature range | RT+~200℃ |
| Temperature Uniformity | ±3℃ |
| Power | 1500W |
| Vacuum pump size | 380*180*280mm |
| Customizable function | Jet system device, UV solid-containing device, automatic inking system |
zy TBJ-X3+OSP-6/400 Automatic Film Applicator Packing list
Film Applicator X1, External vacuum pump X1, doctor blade X1, imported wire rod X1, China wire rod X1, product manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
