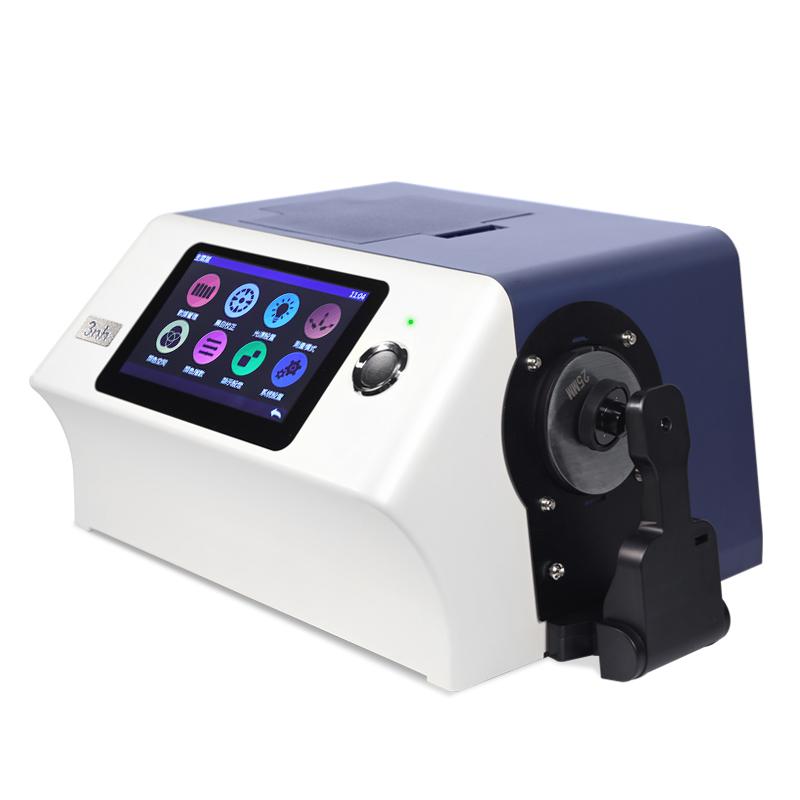

3NH YS6020 desktop Colorimeter xenon arc version

Introduction

YS6020 is a domestic (CN) desktop grating Spectrophotometer independently developed by 3nh company with completely independent intellectual property rights, TFT true color 7inch capacitive touch screen, full light source, lighting method: reflection D/8°, transmission D/0° (including UV/exclusion UV measurement) Accurate and stable color measurement, large storage capacity, and powerful expansion functions on the PC side, used for accurate analysis and transmission of color in the laboratory.

Features

1. High hardware configuration: 7-inch TFT pure color capacitive touch screen; concave grating;

2. Dual-array 256-pixel CMOS Detector; 3 pulsed xenon lamps;

3. Measure the reflection and transmission spectrum of the sample, and the Lab data is accurate, which can be used for color matching and accurate color transfer;

4. Caliber automatic identification, Φ 25.4/8/4mm three kinds of caliber can be switched arbitrarily, while taking into account the special needs of customers;

5. Temperature monitoring and compensation, built-in temperature sensor, monitors and compensates the test environment to ensure more accurate measurement results;

6. The test Wavelength range is 360~780nm, and the built-in 400nm cut-off/420nm cut-off is more professional in testing UV;

7. The independent light source Detector monitors the change of the light source at all times to ensure the reliability of the light source;

8. A variety of measurement modes: quality control mode, sample mode, to meet the needs of more customers;

9. A variety of optional accessories: reflection sample holding tool, transmission fixture, micro-hole 4mm transmission fixture, instrument inversion test fixture, suitable for more Operating Conditions;

10. Large-capacity storage space, storage records up to 20,000;

11. Built-in camera positioning;

12. The PC-side software has powerful extension functions.

plastic sample

Reflection measurement: adopt D/8 structure (diffuse illumination, 8° direction), conform to IS07724/1, CIE, ASTM, DIN and JIS standards.

transmission sample

Transmission measurement: adopt D/0 structure (diffuse illumination, 0° direction reception), comply with ISO, CIE, ASTM and DIN standards.

Liquid, powder, solid sample measurement

Measuring caliber

Caliber automatic identification Φ 25.4/8/4mn three kinds of caliber can be switched freely, taking into account the special needs of customers;

Application

It is used for accurate analysis and transmission of color in the laboratory; plastic electronics, paint ink, textile and garment printing and dyeing, printing, paper products, automobiles, medical care, cosmetics and food industries, color transmission and quality control in scientific research institutions, laboratories and other industries are widely used.

Host X1, power adapter X1, quality management software (official website download, only for managing data) X1, data cable X1, standard correction board X1, black correction box X1, transmission black baffle X1, sample holder X1, 25.4 caliber X1, 8 caliber X1, 4 caliber X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
