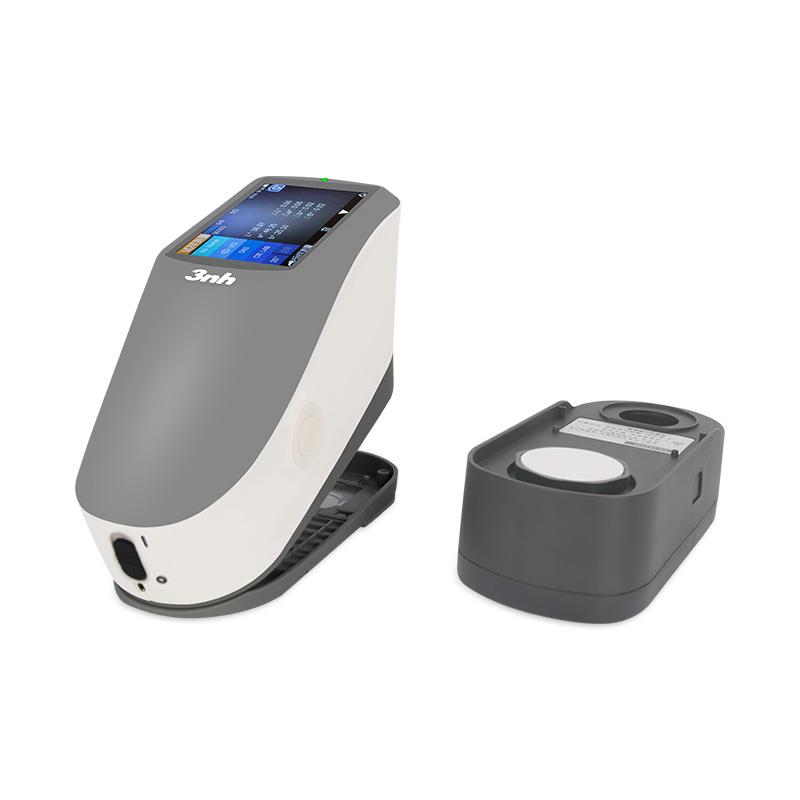

3NH YS4560Plus Colorimeter

Introduction

 YS4560 high-precision Spectrophotometer adopts CIE No.15 45/0 (45-degree ring illumination, 0-degree reception) geometric optical structure, adopts concave grating spectroscopic method, and can accurately measure sample reflectance and various chromaticity data. The instrument is equipped with Φ8 and Φ4mm dual measuring calibers, which are used for accurate color measurement and quality control in traffic road signs, plastic electronics, paint inks, textile and garment printing and dyeing, printing, ceramics and other industries. The instrument has a separate UV light source, which can be used for fluorescent sample measurement.

Application

The grating spectrometer can easily achieve accurate color transfer, and can also be used as a detection device for a precise color matching system; used for accurate color measurement and quality control in industries such as traffic road signs, plastic electronics, paint inks, textile and garment printing and dyeing, printing, ceramics; instruments There is a separate UV light source that can be used for fluorescence sample measurement.

Features

1. The beautiful appearance is well combined with the structural design in line with human mechanics;

2.45/0 geometric optical structure, in line with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7;

3. Adopt a combined LED light source with high lifespan and low power consumption, including UV / excluding UV;

4. The diameter of Φ4/8mm can be selected arbitrarily to adapt to more tested samples;

5. Measure the sample spectrum, the Lab data is accurate, and can be used for color matching and accurate color transfer;

6. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel double-array CMOS Detector, etc.;

7. USB/Bluetooth®4.0 dual mode (compatible with 2.1) dual communication mode, wider adaptability;

8. Large-capacity storage space, which can store more than 30,000 test data

9. The PC-side software has powerful function extensions;

10. Built-in standard polygon tolerance setting and specific traffic road sign color gamut, especially suitable for judging the brightness factor and chromaticity performance of traffic road signs.

host X1, power adapter X1, data cable X1, built-in lithium battery X1, quality control software (official website download) X1, black and white correction box X1, protective cover X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
