        Home> Rotational Viscometer> JingTian> JingTian SNB-1+L0 Digital Rotational Viscometer
        JingTian SNB-1+L0 Digital Rotational Viscometer

        JINGTIAN SNB-1 Digital display Rotational Viscometer with ultra-low viscosity adapter

        JINGTIAN SNB-1 digital Rotational Viscometer with ultra-low viscosity adapter, Measurement range 1~ 600000mPa·s, SNB-1 digital Rotational Viscometer reproducibility +/- 0.5%, Measurement accuracy +/- 1%.

        Brand
        SKU: NB035838
        China JingTian
        Get Quote
        VS
        JingTianLOGO

        JingTian shopSE

        Information
        Datasheet Catalog Manual
        What else did others buy
        Genuinegoods

        • JingTian SNB-1+L0 Digital Rotational ViscometerOverview

        • Specifications
        • Comments
        • FAQs
        SNB-1+L0
        Digital Rotational Viscometer

        Introduction

        The LCD of Shanghai JINGTIAN SNB-1 digital display rotary viscometer can display viscosity, shear rate, shear stress, speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 20 to 600,000 mPa·s.

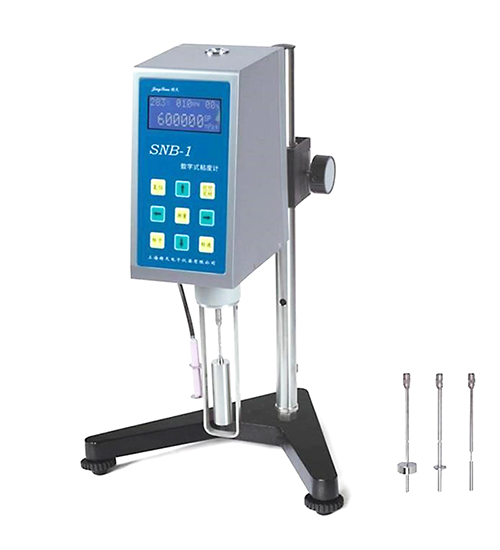

        JINGTIAN SNB-1+L0 Digital Display Rotary Viscometer Details Figure 1

        Introduction

        Accurately measure ultra-low viscosity samples

        Sample volume only needs 25~30mL

        It can measure lower viscosity and be used with different types of viscometers

        JINGTIAN SNB-1+L0 Digital Display Rotary Viscometer Details Figure 2

        VS

        JingTian SNB-1+L0 Digital Rotational ViscometerSpecifications

        LIST VALUE
        Measurement range 1~600000mPa·s
        Rotor specification L0#、L1#、L2#、L3#、L4#
        Reproducibility ±0.5%F.S
        Measurement Accuracy ±1%F.S
        Power Dedicated power adapter (input 100~240V 50~60Hz)
        Rotor speed 1~60rpm
        Display information Viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc
        Rotation speed Control mode Continuously variable speed

        JingTian SNB-1+L0 Digital Rotational Viscometer Packing list

        Host X1, protection frame X1, rotor X1 (sleeve), L0 rotor, base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature sensor X1

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

        FAQ

        [Q]
        Paints range viscosity is usually 10-70mp/s and occasionally 5000mp/s. According to JB/T7599-2013 enameled winding wire insulating paint related requirements to measure the viscosity, is there a recommendation?
        [A]
        SNB-1 Viscometer is suitable
        [Q]
        How to control the measurement accuracy of liquid viscosity?
        [A]
        The model Viscometer can be measured, viscosity accuracy can refer to the specification parameters. When measuring, please measure at the same constant temperature, temperature has a great impact on viscosity, it is recommended to match Thermostat to ensure that the measured fluid temperature is constant, the measurement accuracy will be higher.
        [Q]
        Do you have the Viscometer involved in GB/T15357?
        [A]
        The SNB-1 + L0 Viscometer will do
        [Q]
        I haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
        [A]
        It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
