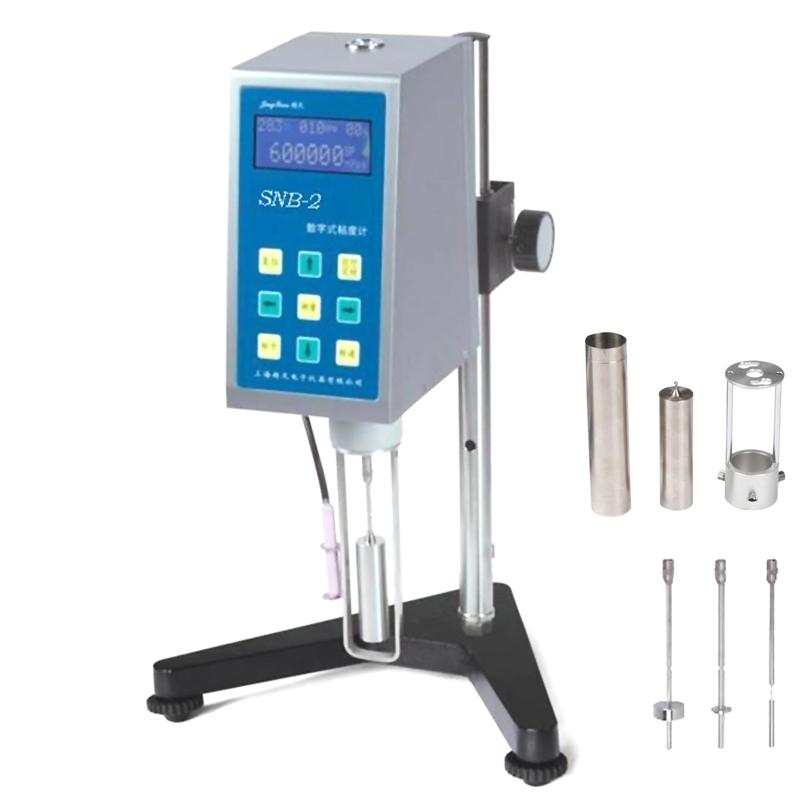

        JingTian SNB-2 + L0 Digital Rotational Viscometer

        JINGTIAN SNB-2 digital display Rotational Viscometer laboratory viscometer with L0 rotor

        Fine digital display Rotational Viscometer SNB-2 adopts LCD, with L0 rotor, the measurement Viscosity range is 0.6~ 6000000mPa·s, the measurement accuracy of SNB-2 Rotational Viscometer is ± 1%, and the speed range is 0.1~ 99.9rpm.

        Brand
        SKU: NB035839
        China JingTian
        Get Quote
        VS
        JingTianLOGO

        JingTian shopSE

        Information
        Datasheet Catalog Manual
        What else did others buy
        Genuinegoods

        • JingTian SNB-2 + L0 Digital Rotational ViscometerOverview

        • Specifications
        • Comments
        • FAQs
        SNB-2 + L0
        Digital Rotational Viscometer

        Introduction

        The LCD of Shanghai JINGTIAN SNB-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current rotational speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 12 to 6,000,000 mPa·s.

        JINGTIAN SNB-2+L0 Digital Display Rotary Viscometer Details Figure 1

        Introduction

        Accurately measure ultra-low viscosity samples

        Sample volume only needs 25~30mL

        It can measure lower viscosity and be used with different types of viscometers

        JINGTIAN SNB-2+L0 Digital Display Rotary Viscometer Details Figure 2

        VS

        JingTian SNB-2 + L0 Digital Rotational ViscometerSpecifications

        LIST VALUE
        Measuring range 0.6~6000000mPa·s
        Rotor Specifications L0#、L1#、L2#、L3#、L4#
        Reproducibility ±0.5%F.S
        Measurement Accuracy ±1%F.S
        Power Dedicated power adapter (input 100~240V 50~60Hz)
        Rotor speed 0.1~99.9rpm
        Display information Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
        Speed control method CVT

        JingTian SNB-2 + L0 Digital Rotational Viscometer Packing list

        Main unit X1, protection frame X1, rotor X1 (sleeve), L0 rotor, base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature probe X1

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

        FAQ

        [Q]
        How to control the measurement accuracy of liquid viscosity?
        [A]
        The model Viscometer can be measured, viscosity accuracy can refer to the specification parameters. When measuring, please measure at the same constant temperature, temperature has a great impact on viscosity, it is recommended to match Thermostat to ensure that the measured fluid temperature is constant, the measurement accuracy will be higher.
        [Q]
        Are all Viscometers available for inspection in the GB/T22427.7 standard?
        [A]
        Not necessarily, but this SNB-2 + L0 Viscometer can be considered.
        [Q]
        I haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
        [A]
        It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
