JingTian LVDV-2 + L0 Digital Rotational Viscometer

JINGTIAN LVDV-2 Digital Rotational Viscometer with L0 rotor

JINGTIAN LVDV-2 digital display Rotational Viscometer is equipped with L0, L1, L2, L3, L4 five rotors. It is a digital display swirl/spin type Viscosity instrument. The measurement Viscosity range of LVDV-2 digital display Rotational Viscometer is 0.3~ 6000000mPa·s, the accuracy is ± 1%.

Brand

SKU: NB035845

JingTian

Model

LVDV-2 + L0

Get Quote

JingTian shopSE

Information

Datasheet Video Catalog Manual

What else did others buy

Genuinegoods

JingTian LVDV-2 + L0 Digital Rotational ViscometerOverview
Specifications
Comments
FAQs

LVDV-2 + L0

Digital Rotational Viscometer

Introduction

The LCD of Shanghai JINGTIAN LVDV-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current rotational speed. Viscosity value etc. It is a digital display Rotational Viscometer with a measuring range of 60 to 60,000,000 mPa·s .

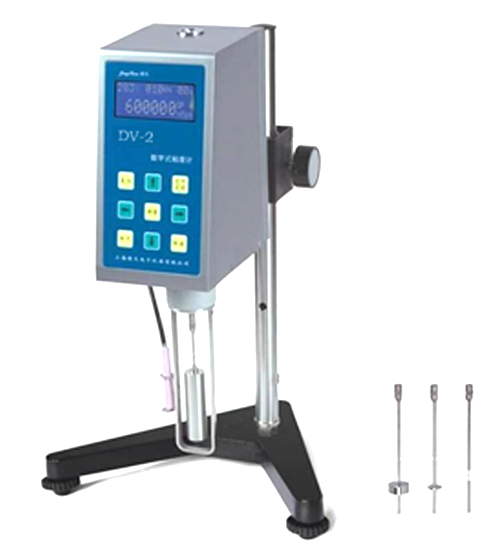

JINGTIAN LVDV-2+L0 Digital Display Rotary Viscometer Details Figure 1

Introduction

Accurately measure ultra-low viscosity samples

Sample volume only needs 25~30mL

It can measure lower viscosity and be used with different types of viscometers

Details of JINGTIAN LVDV-2+L0 Digital Display Rotary Viscometer 2

JingTian LVDV-2 + L0 Digital Rotational ViscometerSpecifications

LIST	VALUE
Measuring range	0.3~6000000mPa·s
Rotor Specifications	L0#、L1#、L2#、L3#、L4#
Reproducibility	±0.5%F.S
Measurement Accuracy	±1%
Power	Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed	0.1~200rpm
Display information	Viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum Viscosity value that can be measured at the current rotational speed of the selected rotor, etc
Speed control method	CVT

JingTian LVDV-2 + L0 Digital Rotational Viscometer Packing list

Host X1, protection frame X1, rotor X1 (sleeve), L0 rotor, base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature probe X1, RS232 standard output interface X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Solution type, perovskite devices and assemblies, various solutions required in the preparatory process of perovskite-silicon stacked devices. Including but not limited to perovskite precursor solutions, transport layer solutions, passivating layer solutions, etc. Can this be measured?

[A]

Recommended LVDV-2 Viscometer + ultra-low viscosity adapter (No. 0 rpm) + a small amount of sample adapter + LC-1008 low temperature Thermostatic bath + "data collection analysis and drawing software"

[Q]

Is there a Rheometer that can measure cement rheology?

[A]

Recommend LVDV-2 + 0 rotor, plus "data collection analysis and drawing software" "DV program control download software", the viscosity is not large, can be measured. It is recommended to study the properties of the sample first to understand the shear rate - viscosity relationship, which is very important for selection

[Q]

Colloidal, viscosity range 10,000 or so, this one is OK?

[A]

What kind of glue? Glues are all non-newtonian fluids, which are related to Measurement conditions. You need to ask a little more carefully.

[Q]

Do you have the Viscometer involved in ISO12634?

[A]

The LVDV-2 + L0 Viscometer will do

[Q]

Which Viscometer displays shear rate and shear force?

[A]

The DV-2 series has shear rate and shear force display. The DV programmable download software can program the shear rate change of the Viscometer in advance, and then collect and draw data through the data collection software
