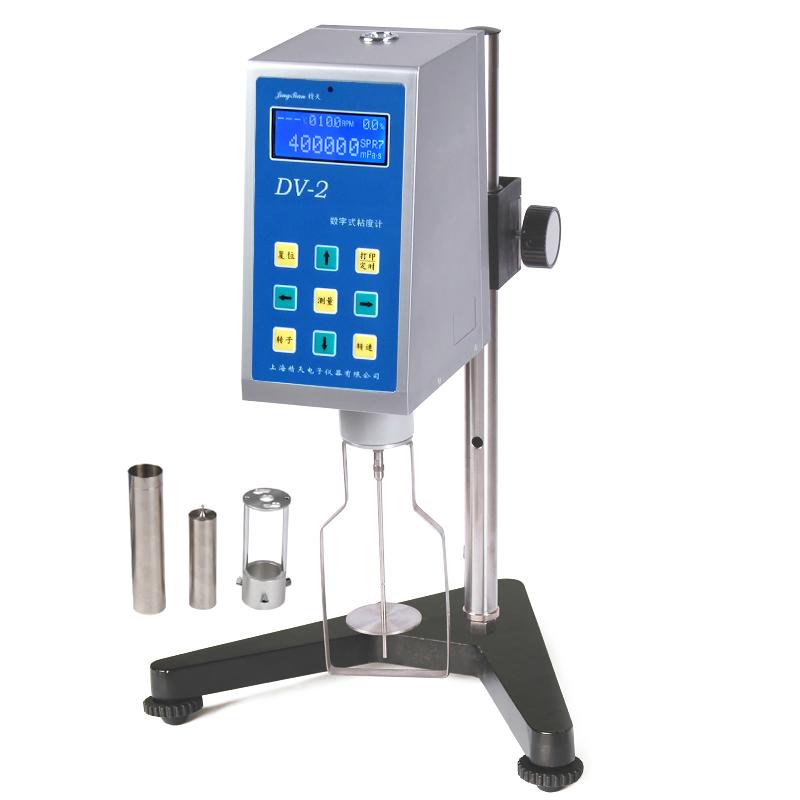

JingTian RVDV-2+L0 Digital Rotational Viscometer

JINGTIAN RVDV-2 digital Rotational Viscometer with L0 rotor

JINGTIAN RVDV-2 digital Rotational Viscometer Measurement range 3~ 40,000mPa·s, with L0, R2, R3, R4, R5, R6, R7 multiple rotors, RVDV-2 digital Rotational Viscometer Measurement accuracy +/- 1%, is an LCD viscosity Measurement Instrument.

Brand

SKU: NB035846

JingTian

Model

RVDV-2+L0

Get Quote

JingTian shopSE

Information

Datasheet Catalog Manual

What else did others buy

NIRUN CPE-40 cone-plate viscometer rotor, shear rate 7.5N

$ 658.00
CNSHP NDJ-8S Digital Rotational Viscometer

$ 484.00
YUEPING DV-1 Digital Rotational Viscometer used in grease, paints, plastics, Coatings, detergents, etc

$ 828.00
FANGRUI instrument NDJ-8T Digital Rotational Viscometer touch screen 2 million mPa·s

$ 593.00
Pingxuan NDJ-4 Rotational Viscometer

$ 498.00

Genuinegoods

JingTian RVDV-2+L0 Digital Rotational ViscometerOverview
Specifications
Comments
FAQs

RVDV-2+L0

Digital Rotational Viscometer

Introduction

Shanghai JINGTIAN RVDV-2 digital display rotary viscometer is a viscosity measuring instrument with LCD display. The LCD can display viscosity, shear rate, shear stress, speed, temperature, percent torque, rotor number and selected The maximum viscosity value that the rotor can measure at the current speed, etc. It is a digital display Rotational Viscometer with a range of 40 to 40,000,000 mPa·s.

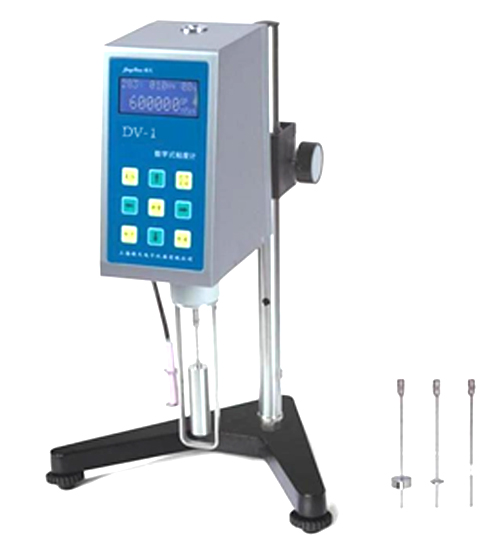

JINGTIAN RVDV-2+L0 Digital Display Rotary Viscometer Details Figure 1

Introduction

Accurately measure ultra-low viscosity samples

Sample volume only needs 25~30mL

It can measure lower viscosity and be used with different types of viscometers

JINGTIAN RVDV-2+L0 Digital Display Rotary Viscometer Details Figure 2

JingTian RVDV-2+L0 Digital Rotational ViscometerSpecifications

LIST	VALUE
Measurement range	3~40000000mPa·s
Rotor specification	1 piece each of rotors L0, R2, R3, R4, R5, R6 and R7
Reproducibility	±0.5%F.S
Measurement Accuracy	±1%F.S
Power	Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed	0.1~200rpm
Display information	Viscosity, shear rate, shear stress, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc
Rotation speed Control mode	Continuously variable speed

JingTian RVDV-2+L0 Digital Rotational Viscometer Packing list

Host X1, protection frame X1, rotor X1 (sleeve), L0 rotor, base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature sensor X1, RS232 standard output interface X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Colloidal, viscosity range 10,000 or so, this one is OK?

[A]

What kind of glue? Glues are all non-newtonian fluids, which are related to Measurement conditions. You need to ask a little more carefully.

[Q]

The same rotor test liquid viscosity, but set different Rotation speed measurement of the same liquid, the measured viscosity is different What is the reason?

[A]

This is the reason for non-Newtonian liquids. Rotation speed, stator and rotor, temperature, and some special samples also need to determine the measurement time. This requires users to refer to industry measurement standards

[Q]

Are all Viscometers available for inspection in the SY/T0522 standard?

[A]

Not necessarily, but this RVDV-2 + L0 Viscometer can be considered.

[Q]

Is there any application difference between RVDV and HBDV? It is used on colloids.

[A]

RVDV can measure sealant, silicone, nail-free glue, etc., HBDV can measure silicone rubber, Glass glue and other more viscous

[Q]

Which Viscometer displays shear rate and shear force?

[A]

The DV-2 series has shear rate and shear force display. The DV programmable download software can program the shear rate change of the Viscometer in advance, and then collect and draw data through the data collection software
