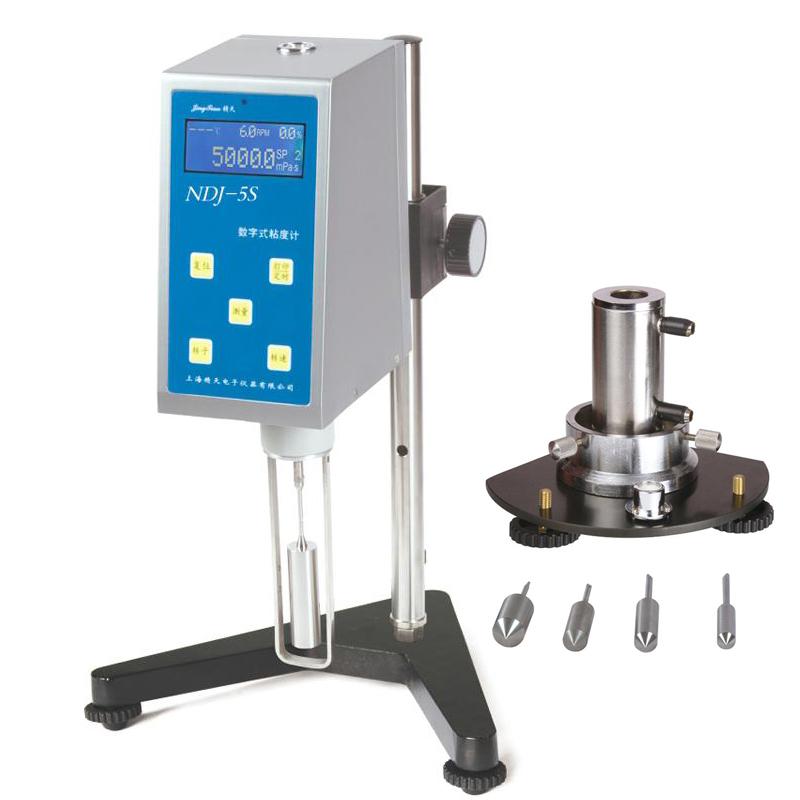

JingTian NDJ-5S+SSA Digital Rotational Viscometer

JINGTIAN NDJ-5S digital display Rotational Viscometer with a small number of sample adapters

JINGTIAN NDJ-5S digital display Rotational Viscometer measuring range 20~100000mPa·s, can display Viscosity, speed, temperature and other parameters, with eight speed, NDJ-5S Rotational Viscometer measurement accuracy is ± 1%, equipped with a small number of sample adapters, capacity 10~20mL.

Brand

SKU: NB035870

JingTian

Model

NDJ-5S+SSA

Get Quote

JingTian shopSE

Information

Datasheet Video Catalog Manual

What else did others buy

Genuinegoods

JingTian NDJ-5S+SSA Digital Rotational ViscometerOverview
Specifications
Comments
FAQs

NDJ-5S+SSA

Digital Rotational Viscometer

Introduction

The LCD of JINGTIAN NDJ-5S digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display rotary viscometer with a measuring range of 20 to 100,000 mPa·s.

JINGTIAN NDJ-5S+SSA Digital Display Rotary Viscometer Details Figure 1

Introduction to Small Sample Adapters

With 21, 27, 28, 29 rotors each one
Small sample volume, only 10-20mL, especially suitable for expensive sample testing
A constant temperature bath connected with external circulation function can control the temperature of the tested sample
Easy to disassemble and clean

JINGTIAN NDJ-5S+SSA Digital Display Rotary Viscometer Details Figure 2

Viscometer structure diagram

JINGTIAN NDJ-5S+SSA Digital Display Rotary Viscometer Details Figure 3

JingTian NDJ-5S+SSA Digital Rotational ViscometerSpecifications

LIST	VALUE
Measuring range	20~100000mPa·s (with 0 #rotor Viscosity can reach 1mPa·s)
Rotor Specifications	L1, L2, L3, L4, 21 #, 27 #, 28 #, 29 #rotors 1 piece each
Reproducibility	±0.5%F.S
Measurement Accuracy	±1%F.S
Power	Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed	6/12/30/60rpm
Display information	Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Capacity	10~20mL
Speed control method	Eight speed

JingTian NDJ-5S+SSA Digital Rotational Viscometer Packing list

Host X1, protection frame X1, rotor X1 (set), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, a small number of sample adapters X1 (set)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

We do electronic wet chemicals and photoresists. The viscosity measurement requires a rotational viscometer. The range is within 2000mpas. Which Viscometer is recommended for wet chemicals can have more samples, and the photoresist sample volume is below 20ml.

[A]

The lithography machine recommends ndj5s + ssa (a small number of sample adapters).

[Q]

Does this have a data collection Communication interface?

[A]

232 interface can be installed.

[Q]

Is there any recommendation for measuring the viscosity of e-liquid?

[A]

This one will do.

[Q]

1~ 200,000 Viscometer for measuring cellulose, emulsion, etc. Which model is it?

[A]

That NDJ-5S and NDJ-8S should be fine.

[Q]

The same rotor test liquid viscosity, but set different Rotation speed measurement of the same liquid, the measured viscosity is different What is the reason?

[A]

This is the reason for non-Newtonian liquids. Rotation speed, stator and rotor, temperature, and some special samples also need to determine the measurement time. This requires users to refer to industry measurement standards
