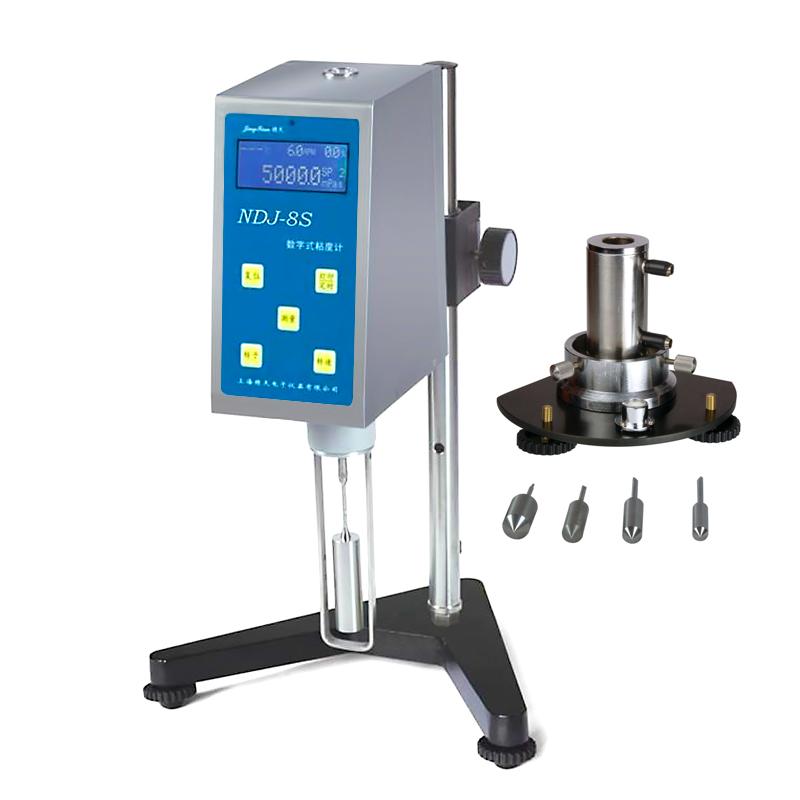

JingTian NDJ-8S+SSA Digital Rotational Viscometer

JINGTIAN NDJ-8S digital Rotational Viscometer with few sample adapters

JINGTIAN NDJ-8S digital display Rotational Viscometer with a small amount of sample adapter, the sample volume is small, only 10~20mL, especially suitable for valuable sample testing, NDJ-8S digital display Rotational Viscometer Measurement range 20~2000000mPa·s.

Brand

SKU: NB035871

JingTian

Model

NDJ-8S+SSA

Get Quote

JingTian shopSE

Information

Datasheet Video Catalog Manual

What else did others buy

TQC DV2010 Viscometer 0-22P For DV2700 Rotothinner Rotational Viscometer

$ 651.00
NIRUN DV-79 + Pro Digital Viscometer Measurement range 1~ 75 million cP

$ 2588.00
HuiNuo NDJ-8S Digital display swirl/spin Viscometer Experimental Viscosity meter 2 million CP

$ 556.00
FANGRUI SNB-1T Digital Rotational Viscometer Viscosity: 1~ 2 million mPa·s

$ 593.00
SDPTOP NDJ-8S Digital Rotational Viscometer measuring range: 10~2 × 1000000mPa·s

$ 733.00

Genuinegoods

JingTian NDJ-8S+SSA Digital Rotational ViscometerOverview
Specifications
Comments
FAQs

NDJ-8S+SSA

Digital Rotational Viscometer

Introduction

The LCD of JINGTIAN NDJ-8S digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display Rotational Viscometer with a range of 20 to 2,000,000 mPa·s.

JINGTIAN NDJ-8S+SSA Digital Display Rotary Viscometer Details Figure 1

Introduction to Small Sample Adapters

With 21, 27, 28, 29 rotors each one
Small sample volume, only 10-20mL, especially suitable for expensive sample testing
A constant temperature bath connected with external circulation function can control the temperature of the tested sample
Easy to disassemble and clean

JINGTIAN NDJ-8S+SSA Digital Display Rotary Viscometer Details Figure 2

Viscometer structure diagram

JINGTIAN NDJ-8S+SSA Digital Display Rotary Viscometer Details Figure 3

JingTian NDJ-8S+SSA Digital Rotational ViscometerSpecifications

LIST	VALUE
Measurement range	20~2000000mPa·s
Rotor specification	L1, L2, L3, L4, 21 #, 27 #, 28 #, 29 #rotors 1 piece each
Reproducibility	±0.5%F.S
Measurement Accuracy	±1%F.S
Power	Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed	0.3/0.6/1.5/3/6/12/30/60rpm
Display information	Viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc
Capacity	10~20mL
Rotation speed Control mode	Rotation speed

JingTian NDJ-8S+SSA Digital Rotational Viscometer Packing list

Host X1, protection frame X1, rotor X1 (sleeve), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, a small number of sample adapters X1 (sleeve)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Can the Viscometer display the maximum viscosity value that can be measured at the current RPM?

[A]

Yes, the maximum measurable viscosity of the selected rotor at the current rotational speed can be displayed to help the user select the appropriate measurement parameters.

[Q]

I need to control the temperature of the sample, can this Viscometer do it?

[A]

This one needs to be equipped with a Thermostat.

[Q]

When I'm looking at other brands, the NDJ series can't use a small amount of sample adapters. Can you use this one?

[A]

This one can be equipped with a small number of sample adapters, and the sample volume is about 10-20ML.

[Q]

I used NDJ79 to test Adhesive before, and I want to change it to a new one. The company produces Adhesive, which needs to test the viscosity at 25 degrees, and the detection amount is as small as possible. Is there any Viscometer recommended? Measure the viscosity of polyurethane Adhesive from a few to 10,000.

[A]

Direct replacement is inconvenient, because the rotor and Rotation speed are different, the sample can definitely be tested, but the test standard needs to be changed again

[Q]

It is a polypeptide protein substance liquid. We have not measured the viscosity before. It measures the viscosity of polypeptide protein.

[A]

If the ratio of water should not be very viscous, or it can be recommended to add No. 0 to NDJ-8S. It is better to provide relevant papers, enterprise standards, etc. for analysis.
