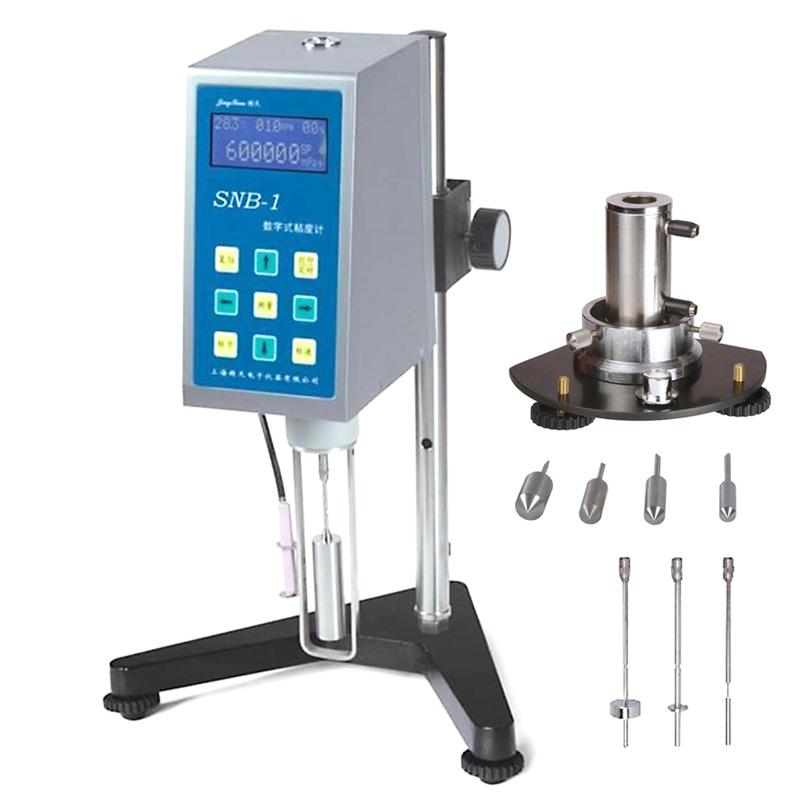

JingTian SNB-1 + SSA Digital Rotational ViscoMeter

JINGTIAN SNB-1 digital display Rotational Viscometer with a small number of sample adapters

JINGTIAN SNB-1 digital display Rotational Viscometer with a small number of sample adapters, easy to disassemble and clean, SNB-1 digital display Rotational Viscometer reproducibility ± 0.5%, measurement accuracy ± 1%.

Brand

SKU: NB035872

JingTian

Model

SNB-1 + SSA

Get Quote

JingTian shopSE

Information

Datasheet Catalog Manual

What else did others buy

TQC DV2202 viscosity calibrated oil S20 500ml

$ 462.00
HUINUO SNB-1 Digital Display Rotational Viscometer Viscosity Testing Instrument with Ultra Low Viscosity Adapter

$ 1003.00
HBDV-1T Digital Rotational Viscometer Viscosity 800~104 million mPa·s

$ 2020.00
Fungilab Viscolead Adv H Rotational Viscometer 106 million cP

Login
Shangtian Jingyi LVT T series color screen Viscometer swirl/spinning Viscosity meter 6 × 10 mPa.s

$ 2092.00

Genuinegoods

JingTian SNB-1 + SSA Digital Rotational ViscoMeterOverview
Specifications
Comments
FAQs

SNB-1 + SSA

Digital Rotational ViscoMeter

Introduction

The LCD of Shanghai JINGTIAN SNB-1 digital display rotary viscometer can display viscosity, shear rate, shear stress, speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 20 to 600,000 mPa·s.

JINGTIAN SNB-1+SSA Digital Display Rotary Viscometer Details Figure 1

Introduction to Small Sample Adapters

With 21, 27, 28, 29 rotors each one
Small sample volume, only 10-20mL, especially suitable for expensive sample testing
A constant temperature bath connected with external circulation function can control the temperature of the tested sample
Easy to disassemble and clean

JINGTIAN SNB-1+SSA Digital Display Rotary Viscometer Details Figure 2

Viscometer structure diagram

JINGTIAN SNB-1+SSA Digital Display Rotary Viscometer Details Figure 3

JingTian SNB-1 + SSA Digital Rotational ViscoMeterSpecifications

LIST	VALUE
Measuring range	20~600000mPa·s (with 0 #rotor Viscosity can reach 1mPa·s)
Rotor Specifications	L1, L2, L3, L4, 21 #, 27 #, 28 #, 29 #rotors 1 piece each
Reproducibility	±0.5%F.S
Measurement Accuracy	±1%F.S
Power	Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed	1~60rpm
Display information	Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Capacity	10~20mL
Speed control method	CVT

JingTian SNB-1 + SSA Digital Rotational ViscoMeter Packing list

Host X1, protection frame X1, rotor X1 (set), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, a small number of sample adapters X1 (set)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the information on the device display comprehensive enough to display shear stress and shear rate?

[A]

Hello, the LCD screen of SNB-1 can display information such as viscosity, shear rate, shear stress, speed, temperature, percentage meter torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor. The information is very comprehensive, which is convenient for you to monitor various parameters in real time to ensure the accuracy and controllability of the experiment.

[Q]

Is it convenient to clean the equipment after use?

[A]

Hello, the small amount of sample adapter equipped with SNB-1 is designed to be easy to disassemble and clean, and it is very convenient to clean after use. This can save you time and effort and ensure the cleanliness and accuracy of the equipment.

[Q]

I have some valuable samples and can only use a small amount at a time. Is this Viscometer suitable?

[A]

Hello, the SNB-1 digital display swirl/spin Viscometer is equipped with a small number of sample adapters, only 10~ 20mL sample volume, which is very suitable for testing expensive samples. This way you can save samples and get accurate measurement data.

[Q]

Measure gel viscosity, but the sample volume is not large, you need to use a small sample adapter, the detection range is less than 100,000, and the temperature is about 37 degrees. Is there a suitable Viscometer suggestion for this?

[A]

For the conventional SNB series, just install a small sample adapter, which needs to be used with Thermostatic bath.

[Q]

What Viscometer is used for the photoresist category?

[A]

SNB-1 plus a small amount of sample adapter should work.
