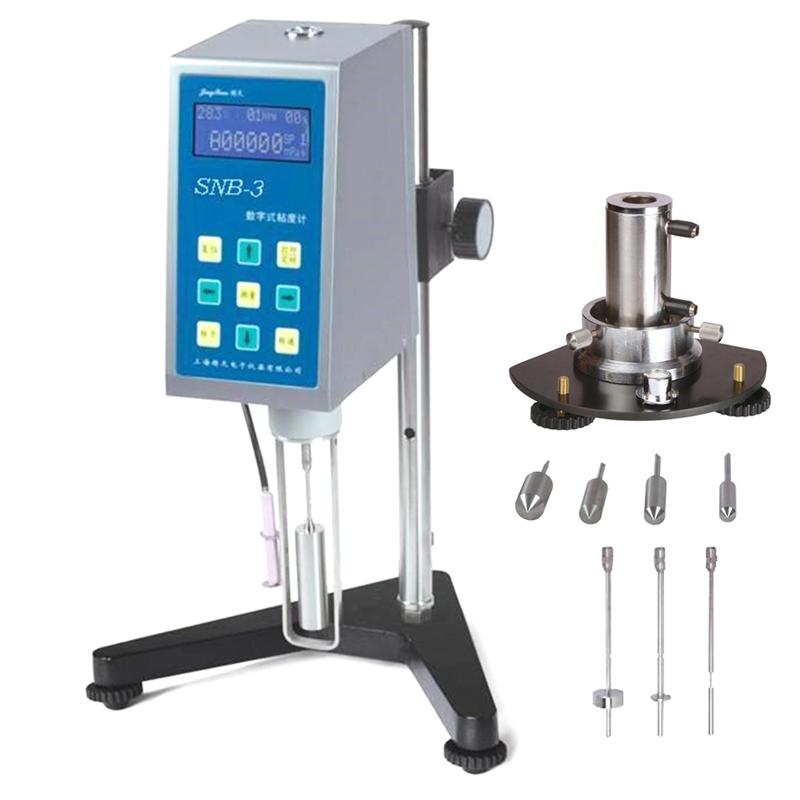

JingTian SNB-3 + SSA Digital Rotational ViscoMeter

JINGTIAN SNB-3 digital display Rotational Viscometer with a few sample adapters

JINGTIAN SNB-3 digital display Rotational Viscometer with a small number of sample adapters, easy to disassemble and clean, measuring range 160~80,000,000mPa·s, SNB-3 digital display Rotational Viscometer can display Viscosity, shear rate, shear stress, speed, temperature, percentile torque, rotor number and the maximum Viscosity value that can be measured at the current rotational speed of the selected rotor, etc.

Brand

SKU: NB035874

JingTian

Model

SNB-3 + SSA

Get Quote

JingTian shopSE

Information

Datasheet

What else did others buy

Genuinegoods

JingTian SNB-3 + SSA Digital Rotational ViscoMeterOverview
Specifications
Comments
FAQs

SNB-3 + SSA

Digital Rotational ViscoMeter

Introduction

The LCD of Shanghai JINGTIAN SNB-3 digital display rotary viscometer can display viscosity, shear rate, shear stress, speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 160 to 80,000,000 mPa·s .

JINGTIAN SNB-3+SSA Digital Display Rotary Viscometer Details Figure 1

Introduction to Small Sample Adapters

With 21, 27, 28, 29 rotors each one
Small sample volume, only 10-20mL, especially suitable for expensive sample testing
A constant temperature bath connected with external circulation function can control the temperature of the tested sample
Easy to disassemble and clean

JINGTIAN SNB-3+SSA Digital Display Rotary Viscometer Details Figure 2

Viscometer structure diagram

JINGTIAN SNB-3+SSA Digital Display Rotary Viscometer Details Figure 3

JingTian SNB-3 + SSA Digital Rotational ViscoMeterSpecifications

LIST	VALUE

JingTian SNB-3 + SSA Digital Rotational ViscoMeter Packing list

Host X1, protection frame X1, rotor X1 (set), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, a small number of sample adapters X1 (set)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is this the viscosity of various liquids suitable for use in the laboratory?

[A]

Now some rotors are 160-80. If you want a lower one, you need to add No. 0. The No. 0 rotor can measure the viscosity of tap water.

[Q]

How much can the sample volume of No. 21 * 27 * 28 * 29 rotor be placed?

[A]

This set of rotors can hold a sample volume of 10-20ml.

[Q]

L1 L2 L3 L4 What is the sample size of these rotors?

[A]

Generally, No. 1 turns 300-400mL, and No. 2, 3, and 4 turns 100-200ml.

[Q]

Measure gel viscosity, but the sample volume is not large, you need to use a small sample adapter, the detection range is less than 100,000, and the temperature is about 37 degrees. Is there a suitable Viscometer suggestion for this?

[A]

For the conventional SNB series, just install a small sample adapter, which needs to be used with Thermostatic bath.

[Q]

Appearance size of this SNB-3 digital swirl/spin Viscometer

[A]

Encasement size? 0.4 * 0.35 * 0.36m
