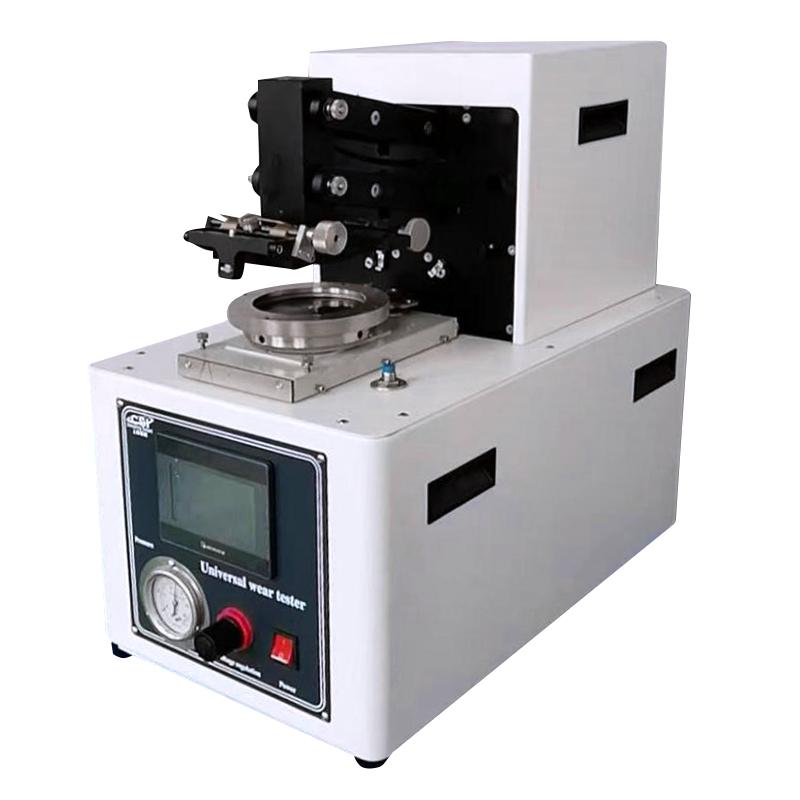

Huitao CSI-1.56 million abrasion performance Tester
Huitao CSI- 1.56 million abrasion performance Tester The inner diameter of the clamping ring is 94 mm, the height of the locking ring is less than or equal to 9.5 mm, and the speed is 120 ± 15 /min. The tested sample of the CSI- 1.56 million abrasion performance Tester can be dried or immersed in water., oil, or Miscellaneous liquid.
huitao
CSI-156
-
HUITAO CSI-252 DIN Wear resistance Tester Abrasion Tester
$ 1268.00 -
HUITAO CSI-J00 hose wear resistance testing device
$ 3017.00 -
Swirl/spin Wear Measurement Instrument NBC-Taber5612 Wear resistance Tester
$ 1081.00 -
JINGKELIAN JM-IV Film abrasion machine Abrasion machine
$ 1224.00 -
HUITAO HT-2285-4 quad station Martindale Wear resistance Tester
$ 2239.00
Introduction
The multi-functional abrasion testing machine is used for flat grinding, curved grinding, edge grinding, hemming grinding and anti-blooming, edge closing and fleece wear tests. Used for woven fabrics, knitted fabrics, coated fabrics, fleece fabrics, socks , felt, non-woven fabric, deep fabric, yarn, thread, plastic film, rubber, leather, paper, and many other materials. The sample to be tested can be dry or immersed in water, oil, or other liquids.
Standards
AATCC119-04
AATCC 120-04
ASTM D3514-05
ASTM D3885-04
ASTM D3886-07
JISL1096
JISL1018
ASTMD1175
AATCC119.120
FZ/T01122
FZ/T01123-2014
huitao CSI-156 Universal abrasion performance TesterSpecifications
| LIST | VALUE |
|---|---|
| Inner diameter of clamping ring | 94 mm |
| Locking ring height | ≤9.5 mm |
| Speed range | 120±15 /min |
| moving range | 25 mm |
| air pressure | 62kPa(9psi) |
| Dimensions | 330 × 500 × 460mm (L × W × H) |
| Weight | 33kg (72lb) |
| Power | 120 /230 V，50/60 Hz，2A/1A |
huitao CSI-156 Universal abrasion performance Tester Packing list
Host X1, cloth edge and fold friction sample holder X1, elasticity friction pad X1, abrasive X1, rating chart X1, depth grinding X1, fold grinding X1, curved grinding X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
