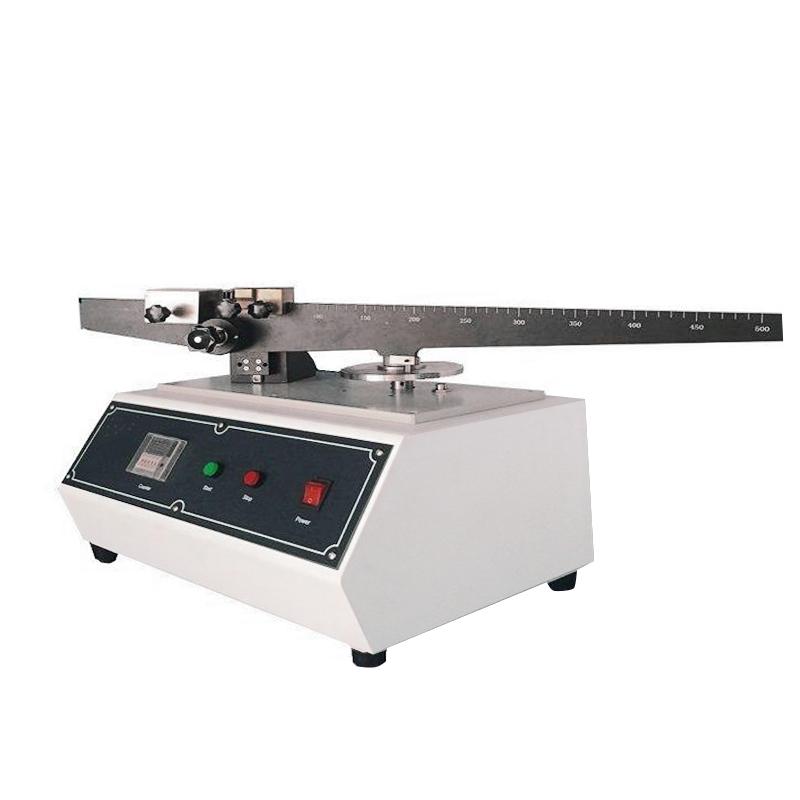

HUITAO CSI-2632 scratch resistance Tester, scratch resistance Tester

use

Rigid organic materials, coating adhesives, powder coatings, anodized materials, soft metals, plastics and glass, etc., can also be used to test the adhesive quality of the same material, protective coatings and the ultimate performance of similar materials. The instrument is controlled by a balance Rod, fixed weight, adjustment weight, sample loading disk and other components. Before the test, the height of the balance bar needs to be adjusted according to the thickness of the sample, so that the scraping head is installed in the middle of the balance bar and the sample is installed behind the sample loading disc, so that the balance bar can remain horizontal. Weights control the weight pressed on the specimen. With the counterclockwise rotation of the sample loading disc, the scraping head leaves arc-shaped scratches on the surface of the sample.

Standards

lAS/NZS AS2924.2

lASTM C217 GB/T15102

lBS EN 438-2 GB/T17657

lBS EN 13310:2003

lBS EN 14323 EN15186

lDIN 68861-4 GB/T18102

lDIN 53799 BS EN 14688:2006

TSF7365 5.2.12-2009

Test Principle

Place the sample in the groove of the thickness control device and adjust the position of the nut. Install the sample on a rotatable circular platform and fix it with a pressure block and a nut. Install the scraping head in the corresponding groove in the middle of the beam. Rotate the balance bar so that the head of the scraping head is just in contact with the sample. Start the instrument, the disc moves, and the scraping head leaves scratches on the surface of the sample

Host X1, equilibrate rod X1, equilibrate block X1, weight X1, horizontal bubble X1, test clip X1, power cord X1, nameplate X1, manual X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
