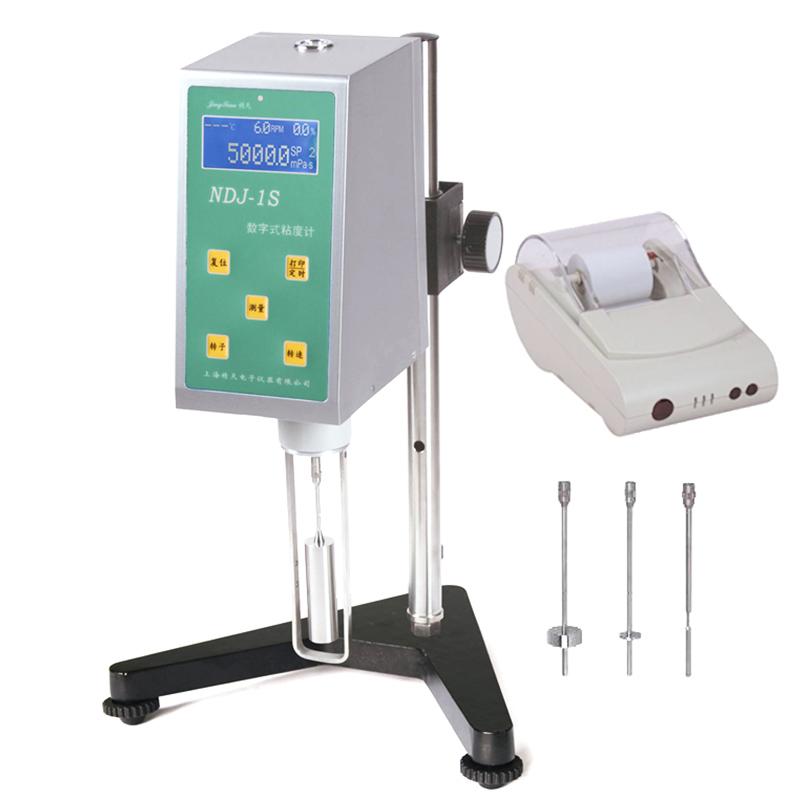

JINGTIAN NDJ-1S digital display Rotational Viscometer standard printer
JINGTIAN NDJ-1S digital display Rotational Viscometer has a Viscosity range of 20~100000mPa·s. It is a liquid crystal display Viscometer. It is equipped with a printer to print temperature, rotor, speed, viscosity value and percentile torque.
JingTian
NDJ-1S + Printer
-
NIRUN NTV-P1HA Programmable Digital Viscometer Automatic Viscosity Measurement meter 200~26M mPa.s
$ 3289.00 -
NDJ-1 Rotational Viscometer Viscosity 10~100000mPa·s
$ 333.00 -
Fungilab Viscolead Adv R Rotational Viscometer Viscometer 13 million cP
Login -
NIRUN NTV-T3HA viscosity temperature control machine 20 million cp 250 ℃ hot-melt adhesive and other molten materials
$ 4276.00 -
NIRUN NTV-T3HB viscosity and temperature control integrated machine 80 million cp large range, suitable for all kinds of molten materials
$ 4276.00
Introduction
The LCD of Shanghai JINGTIAN NDJ-1S digital display rotary viscometer can display viscosity, speed, temperature, percentage torque, rotor number and the maximum viscosity value of the selected rotor at the current speed. It is a digital display rotary viscometer with a measuring range of 20~100000 mPa·s.
Printer Introduction
Miniature monochrome dot matrix printer for data capture
The printed content includes temperature, rotor, speed, viscosity value and percentage torque, etc.
random standard configuration
JingTian NDJ-1S + Printer Digital Rotational ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Display | digital display |
| Measuring range | 20~100000mPa·s |
| Rotor Specifications | L1#、L2#、L3#、L4# |
| Reproducibility | ±1%F.S |
| Measurement Accuracy | ±5% |
| Power | Dedicated power adapter (input 100~240V 50~60Hz) |
| Rotor speed | 6/12/30/60rpm |
| Display information | Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc |
| Print content | Temperature, rotor, rotational speed, viscosity value and percent meter torque, etc |
JingTian NDJ-1S + Printer Digital Rotational Viscometer Packing list
Host X1, printer X1, protection frame X1, rotor X1 (sleeve), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
