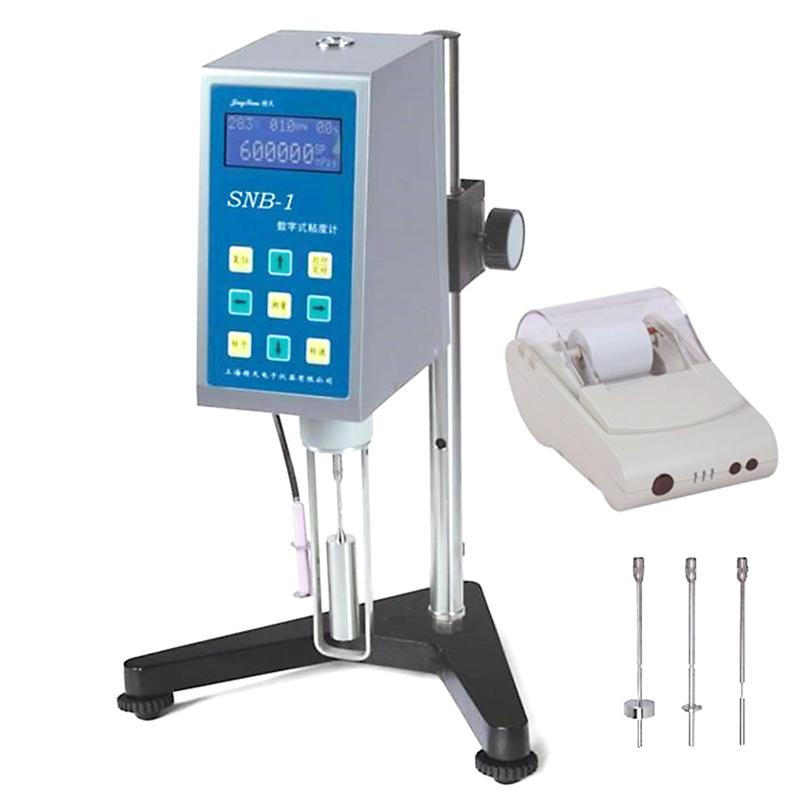

JINGTIAN SNB-1 digital display Rotational Viscometer viscosity Tester, standard printer
JINGTIAN SNB-1 digital display Rotational Viscometer measuring range 20~600000mPa·s, reproducibility ± 0.5%, SNB-1 digital display Rotational Viscometer is a digital display Viscometer, which can display Viscosity, rotational speed, percent meter torque, rotor number and the maximum Viscosity value that can be measured at the current rotational speed of the selected rotor.
JingTian
SNB-1 + Printer
-
HUINUO NDJ-9S Rotational Viscometer 100000mPa.s standard temperature probe
$ 366.00 -
HuiNuo NDJ-8S + 0 #Laboratory Rotational Viscometer Viscosity Detector 10~2 million CP
$ 467.00 -
NIRUN NTV-S3 Smart Touch Digital Viscometer Measurement range 4-80 million mPa.s
$ 2350.00 -
NIRUN NTV-AI250 touch high temperature Rotational Viscometer molten fluid viscosity measurement
$ 3713.00 -
Shangtian Jingyi LVT T series color screen Viscometer swirl/spinning Viscosity meter 6 × 10 mPa.s
$ 2061.00
Introduction
The LCD of Shanghai JINGTIAN SNB-1 digital display rotary viscometer can display viscosity, shear rate, shear stress, speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 20 to 600,000 mPa·s.
Printer Introduction
Miniature monochrome dot matrix printer for data capture
The printed content includes temperature, rotor, speed, viscosity value and percentage torque, etc.
random standard configuration
JingTian SNB-1 + Printer Digital Rotational ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Measuring range | 20~600000mPa·s (with 0 #rotor Viscosity can reach 1mPa·s) |
| Rotor Specifications | L1#、L2#、L3#、L4# |
| Reproducibility | ±0.5%F.S |
| Measurement Accuracy | ±1%F.S |
| Power | Dedicated power adapter (input 100~240V 50~60Hz) |
| Rotor speed | 1~60rpm |
| Display information | Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc |
| Print content | Temperature, rotor, rotational speed, viscosity value and percent meter torque, etc |
| Speed control method | CVT |
JingTian SNB-1 + Printer Digital Rotational Viscometer Packing list
Host X1, protection frame X1, rotor X1 (sleeve), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, printer X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
