Printing ink Mayer-Rod tinctorial strength inspection formed Mayer-Rod Film Applicator 10μm Colorimetric

The rod length is 240mm, the film width is 210mm, and the film thickness is 10μm. The formed process is continuous wire, which can be used with a separate handle.

Brand

SKU: NB036388

CCT

Model

CCT010-L240

Price

$ 95.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

CCT shopSE

Information

Datasheet RFQ Contract Catalog

What else did others buy

RDS 15 #3/8 "Coating rod WFT 34.3μm Length 400mm

$ 161.00
RDS 12 #1/4 "wire-wound coating rod film thickness 27.4μm Wire diameter 0.30mm

$ 155.00
RDS 7 #3/8 "Mayer Rods WFT 16.0μm Length 400mm

$ 161.00
RDS 60 #1/4 "wire-wound Applicator rod film thickness 137.2μm Wire diameter 1.52mm

$ 155.00
RDS 22 #3/8 "Molded wet-Film Applicator 50.3μm Spreader

$ 161.00

Genuinegoods

CCT CCT010-L240 Spreader stickOverview
Specifications
Comments
FAQs

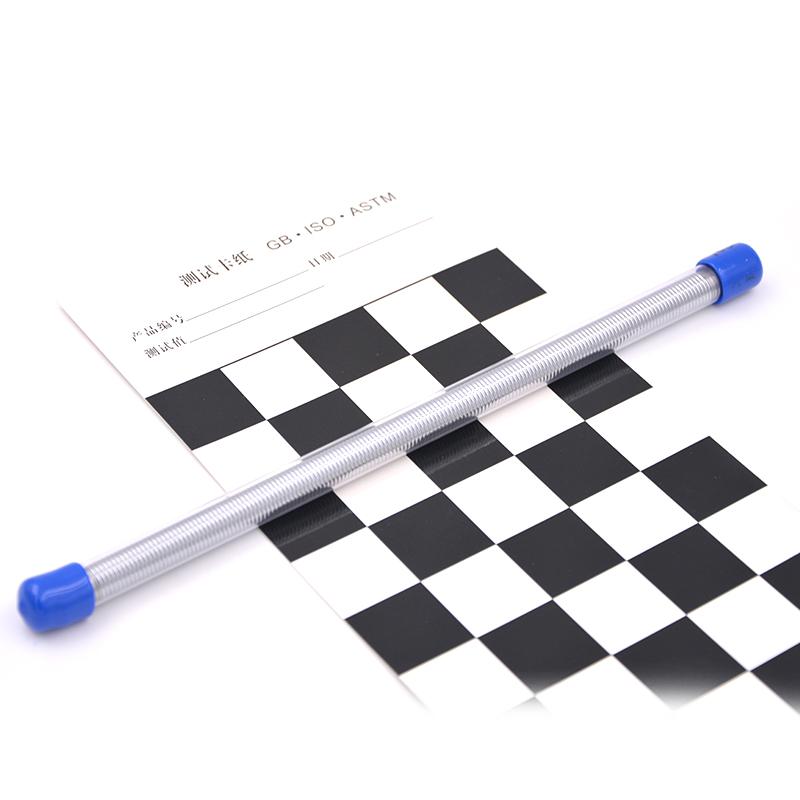

CCT010-L240

Spreader stick

The rod length is 240mm, the film width is 210mm, and the film thickness is 10μm. The formed process is continuous wire, which can be used with a separate handle.

Introduction

Metering rods are commonly known as scraping rods, wire rods, coating rods, steel wire scraping rods, ink scraping rods, coating rods, grooved rods, light rods, sizing rods, and Meyer rods. A rod that evenly distributes the paint on the surface of the substrate and achieves a fixed wet film thickness by scraping the rod. This experimental metering rod is mainly used for manual coating in the laboratory or scraping coating with an automatic coating machine (L400 long).

Advantages

1. Coating wet film 4-190 microns, other models can be customized;

2. The grooves are not blocked and easy to clean;

3. High coating precision and strict quality control;

4. More than 10 years of service in the field of coating;

5. Support customization;

Product Image

Cecetidine CCT010-L240 Coating Rod Details Figure 1

Cetide CCT010-L240 Coating Rod Details Figure 2

Cetide CCT010-L240 Coating Rod Details Figure 3

Cetide CCT010-L240 Coating Rod Details Figure 4

Models

model		stick number	wet film thickness
240L	400L	stick number	(μm)
CCT004-L240	CCT004-L400	CCT-04	4
CCT005-L240	CCT005-L400	CCT-05	5
CCT006-L240	CCT006-L400	CCT-06	6
CCT007-L240	CCT007-L400	CCT-07	7
CCT008-L240	CCT008-L400	CCT-08	8
CCT009-L240	CCT009-L400	CCT-09	9
CCT010-L240	CCT010-L400	CCT-10	10
CCT012-L240	CCT012-L400	CCT-12	12
CCT015-L240	CCT015-L400	CCT-15	15
CCT020-L240	CCT020-L400	CCT-20	20
CCT025-L240	CCT025-L400	CCT-25	25
CCT030-L240	CCT030-L400	CCT-30	30
CCT035-L240	CCT035-L400	CCT-35	35
CCT040-L240	CCT040-L400	CCT-40	40
CCT045-L240	CCT045-L400	CCT-45	45
CCT050-L240	CCT050-L400	CCT-50	50
CCT055-L240	CCT055-L400	CCT-55	55
CCT060-L240	CCT060-L400	CCT-60	60
CCT070-L240	CCT070-L400	CCT-70	70
CCT080-L240	CCT080-L400	CCT-80	80
CCT090-L240	CCT090-L400	CCT-90	90
CCT100-L240	CCT100-L400	CCT-100	100
CCT110-L240	CCT110-L400	CCT-110	110
CCT120-L240	CCT120-L400	CCT-120	120
CCT130-L240	CCT130-L400	CCT-130	130
CCT150-L240	CCT150-L400	CCT-150	150
CCT180-L240	CCT180-L400	CCT-180	180
CCT200-L240	CCT200-L400	CCT-200	200
CCT230-L240	CCT230-L400	CCT-230	230
CCT250-L240	CCT250-L400	CCT-250	250
CCT270-L240	CCT270-L400	CCT-270	270
CCT280-L240	CCT280-L400	CCT-280	280
CCT300-L240	CCT300-L400	CCT-300	300
CCT320-L240	CCT300-L400	CCT-320	320

Optional

Note: Click on the accessory picture to view Details.

CCT CCT010-L240 Spreader stickSpecifications

LIST	VALUE
Production process	Extrusion process
WFT	10µm
diameter	10mm
Total length	240mm
Application width	210mm
Grip width	15mm+15mm
material	Stainless steel material

CCT CCT010-L240 Spreader stick Packing list

Wire Rod X1, Transparent Encasement Hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Can this coating rod be prepative of multi-layer ultra-thin film?

[A]

The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
