Coating Applicator rod 12μm Paint Drawdown Rod, Manual Wire Applicator Kun
The rod length is 240mm, the film width is 210mm, and the film thickness is 12μm. The formed process is continuous wire, which can be used with a separate handle.
CCT
CCT012-L240
CCT012-L400
Introduction
Metering rods are commonly known as scraping rods, wire rods, coating rods, steel wire scraping rods, ink scraping rods, coating rods, grooved rods, light rods, sizing rods, and Meyer rods. A rod that evenly distributes the paint on the surface of the substrate and achieves a fixed wet film thickness by scraping the rod. This experimental metering rod is mainly used for manual coating in the laboratory or scraping coating with an automatic coating machine (L400 long).
Advantages
1. Coating wet film 4-190 microns, other models can be customized;
2. The grooves are not blocked and easy to clean;
3. High coating precision and strict quality control;
4. More than 10 years of service in the field of coating;
5. Support customization;

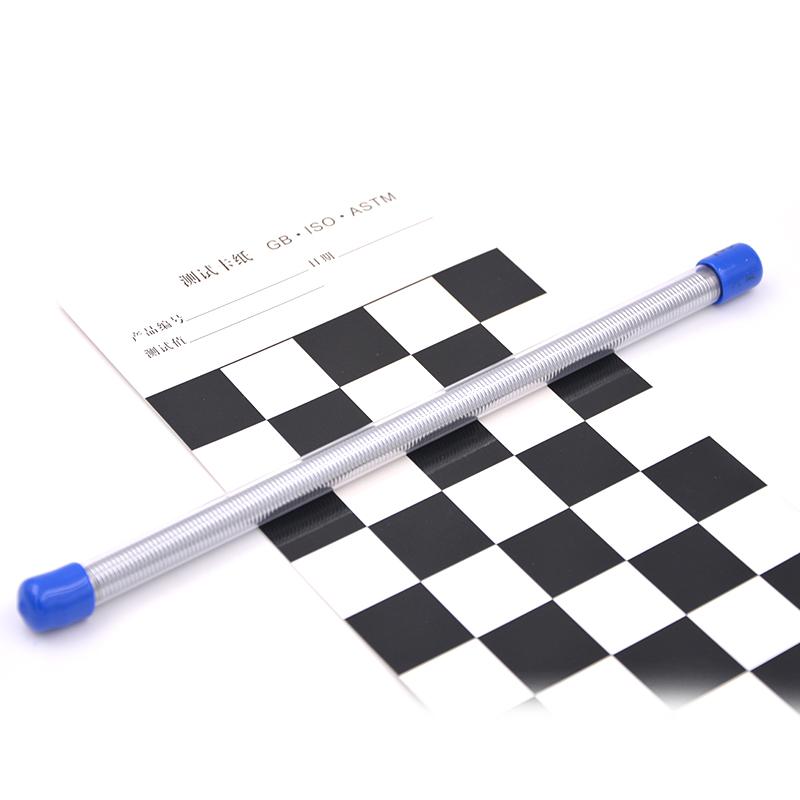

Product Image
Models
| model | stick number | wet film thickness | |
| 240L | 400L | (μm) | |
| CCT004-L240 | CCT004-L400 | CCT-04 | 4 |
| CCT005-L240 | CCT005-L400 | CCT-05 | 5 |
| CCT006-L240 | CCT006-L400 | CCT-06 | 6 |
| CCT007-L240 | CCT007-L400 | CCT-07 | 7 |
| CCT008-L240 | CCT008-L400 | CCT-08 | 8 |
| CCT009-L240 | CCT009-L400 | CCT-09 | 9 |
| CCT010-L240 | CCT010-L400 | CCT-10 | 10 |
| CCT012-L240 | CCT012-L400 | CCT-12 | 12 |
| CCT015-L240 | CCT015-L400 | CCT-15 | 15 |
| CCT020-L240 | CCT020-L400 | CCT-20 | 20 |
| CCT025-L240 | CCT025-L400 | CCT-25 | 25 |
| CCT030-L240 | CCT030-L400 | CCT-30 | 30 |
| CCT035-L240 | CCT035-L400 | CCT-35 | 35 |
| CCT040-L240 | CCT040-L400 | CCT-40 | 40 |
| CCT045-L240 | CCT045-L400 | CCT-45 | 45 |
| CCT050-L240 | CCT050-L400 | CCT-50 | 50 |
| CCT055-L240 | CCT055-L400 | CCT-55 | 55 |
| CCT060-L240 | CCT060-L400 | CCT-60 | 60 |
| CCT070-L240 | CCT070-L400 | CCT-70 | 70 |
| CCT080-L240 | CCT080-L400 | CCT-80 | 80 |
| CCT090-L240 | CCT090-L400 | CCT-90 | 90 |
| CCT100-L240 | CCT100-L400 | CCT-100 | 100 |
| CCT110-L240 | CCT110-L400 | CCT-110 | 110 |
| CCT120-L240 | CCT120-L400 | CCT-120 | 120 |
| CCT130-L240 | CCT130-L400 | CCT-130 | 130 |
| CCT150-L240 | CCT150-L400 | CCT-150 | 150 |
| CCT180-L240 | CCT180-L400 | CCT-180 | 180 |
| CCT200-L240 | CCT200-L400 | CCT-200 | 200 |
| CCT230-L240 | CCT230-L400 | CCT-230 | 230 |
| CCT250-L240 | CCT250-L400 | CCT-250 | 250 |
| CCT270-L240 | CCT270-L400 | CCT-270 | 270 |
| CCT280-L240 | CCT280-L400 | CCT-280 | 280 |
| CCT300-L240 | CCT300-L400 | CCT-300 | 300 |
| CCT320-L240 | CCT300-L400 | CCT-320 | 320 |
Optional
 |
|
 |  |
Note: Click on the accessory picture to view Details.
CCT CCT012-L240 Coating RodSpecifications
| LIST | VALUE |
|---|---|
| Production process | Extrusion process |
| WFT | 12µm |
| diameter | 10mm |
| Total length | 240mm |
| Application width | 210mm |
| Grip width | 15mm+15mm |
| material | Stainless steel material |
CCT CCT012-L240 Coating Rod Packing list
Wire Rod X1, Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
