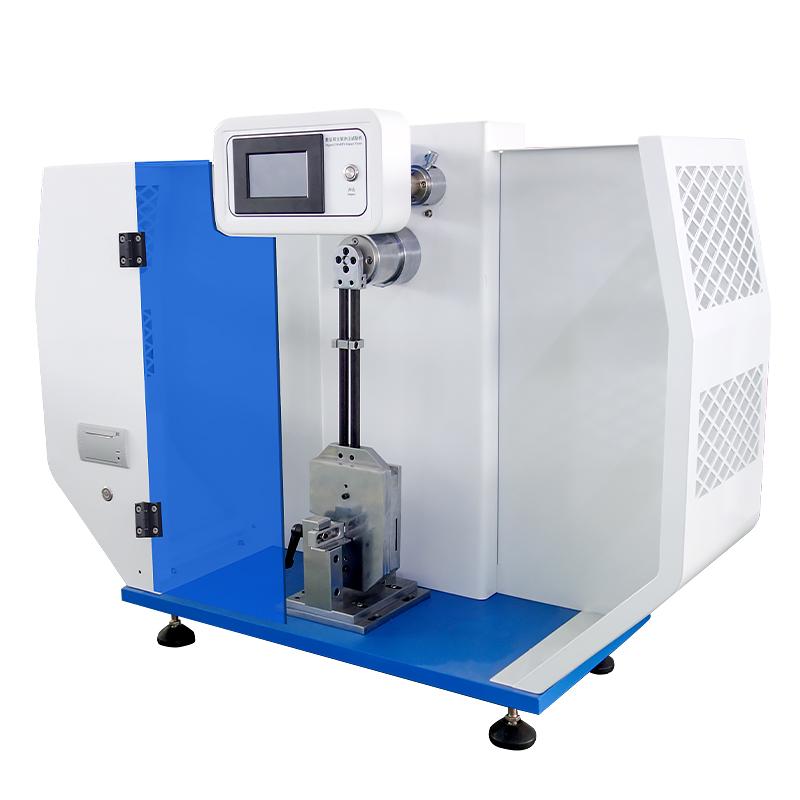

YOUKE YK3652 Impact Tester 1J/2J/4J/5J

product description

The digital display simply supported beam impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stones, and electrical insulating materials. It is a satisfactory test equipment for the chemical industry, scientific research units, colleges and universities, quality inspection and other departments.

Executive standard

ISO179-2000 "Plastics - Determination of Charpy Impact Strength of Hard Materials"

GB/T1043—2008 "Rigid Plastic Charpy Impact Test Method"

JB/T8762—1998 "Plastic Charpy Impact Testing Machine"

GB/T 18743-2002 "Charpy impact test method for thermoplastic pipes for fluid transportation" (applicable to pipe parts)

Features

• High-precision intelligent controller, equipped with LCD display, can read data intuitively and accurately

• Chinese use of high-strength carbon fiber pendulum (patent applied for) improves the rigidity of the material in the impact direction, and concentrates the impact mass on the center of mass of the pendulum to achieve a truly shock-free impact test

• Using imported high-resolution digital encoder, the angle test accuracy is higher and more stable

• The aerodynamic impact hammer and imported ball bearings greatly reduce the friction loss caused by machinery

• Automatically calculate the final result, the test data can save 24 sets of data and calculate the average

• Chinese and English operation interface can be selected, the test result can choose J/m, KJ/㎡, kg-cm/cm, ft-ib/in and other units

• Built-in micro-printer to print test data

Host X1, relay X1, encoder X1, power switch X1, switching power supply X1, controller X1, pendulum pendulum X1, printer X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
