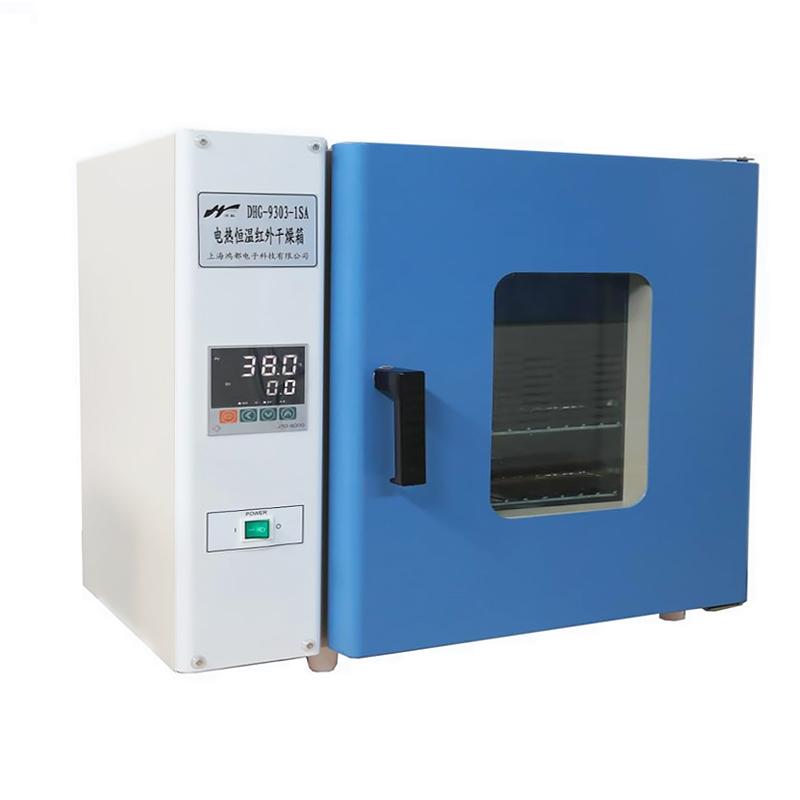

HONGKE DHG-9070A electric thermostatic Forced Air Drying Oven electric thermostatic oven

Introduction

DHG-9000 series electric heating constant temperature Forced Air Drying Oven has four specifications: 40 liters, 70 liters, 136 liters and 220 liters, which is beautiful and practical. The shell is welded with high-quality steel plate, the surface is sprayed, and the inner chamber steel plate is sprayed with high-temperature resistant silver powder paint or stainless steel plate, and is equipped with two to four layers of shelves. The temperature insulation is made of ultra-fine glass wool, the door is equipped with a double-glazed observation window, and the studio and the door are equipped with heat-resistant silicone rubber or asbestos rope insulation seal. The power switch, temperature controller and other operating parts of the Drying Oven are concentrated in front of the box for easy operation.

The heating and constant temperature system in the box is equipped with an electric heater, a temperature controller, a fan, and a suitable air duct structure. When the power is turned on, the fan works at the same time, and the heat generated by the electric heater is discharged through the air duct, and then sucked into the fan through the dry items in the studio, so that the temperature reaches a uniform level through continuous circulation.

The thermostat is a microcomputer intelligent digital thermostat, which adopts progressive heating to suppress temperature overshoot to the greatest extent, has self-tuning function, high temperature control accuracy, sets temperature with protection device, and has tracking alarm function.

Application

This product is used for drying, baking, wax melting, and sterilizationEquipment, suitable for factory production experiments, medical research, drug testingScientific research and production in the fields of environmental protection and rural science.

Model

Precautions

1. The shell of the Drying Oven needs to be effectively grounded to ensure the safety of use.

2. The Drying Oven should be placed in a room with good ventilation conditionsNo flammable or explosive materials should be placed around or inside the box.

3. Do not overcrowd the items in the box, and leave space.

4. The inside and outside of the box should be kept clean frequently, and the plastic should be covered for long-term useDust cover, put in a dry room.

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
