        Home> Mayer Rod> OSP> OSP OSP-00/400 coating rod
        OSP OSP-00/400 coating rod

        Japan OSP-00/400 Applicator rod WFT 0μm length 400mm

        0μm ultra-thin film, threadless smooth coating rod, the Total length is 400mm, the effective application width is 300mm, stainless steel material, good surface finish.

        Brand
        SKU: NB003682
        Japan OSP
        Stock
        Loading…
        Price
        $ 172.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          OSPLOGO

          OSP shopSE

          Information
          Datasheet RFQ Contract Video Catalog Manual
          What else did others buy
          Genuinegoods

          • OSP OSP-00/400 coating rodOverview

          • Specifications
          • Comments
          • FAQs
          OSP-00/400
          coating rod
          • Japan OSP-00/400 Applicator rod WFT 0μm length 400mm
          • Japan OSP-00/400 Applicator rod WFT 0μm length 400mm Figure 1
          • Japan OSP-00/400 Applicator rod WFT 0μm length 400mm Figure 2
          0μm ultra-thin film, threadless smooth coating rod, the Total length is 400mm, the effective application width is 300mm, stainless steel material, good surface finish.


          Japan OSP -00/400 coating rod is extrusion type coating rod, OSP-00/400 coating rod can coat film thickness of 0μm, realize ultra-thin film coating. The OSP L400 coating rod adopts a special cold extrusion process to process the steel rod into a coating rod with continuous grooves, so there is no worry of broken wires and it is very convenient to clean. OSP-00/400 coating rod is hand-held. 50mm .

          OSP-00 coating rod operation video

          OSP Coating Stick Model List

          Three length sizes of OSP-00 coating stick

          Features and advantages of OSP-00 coating stick

          OSP-00 Coating Rod Groove Shape

          Coating accuracy of OSP-00 coating rod

          Applications of OSP-00 coating stick

          The advantages of purchasing OSP-00 coating sticks and choosing the North and South Tide

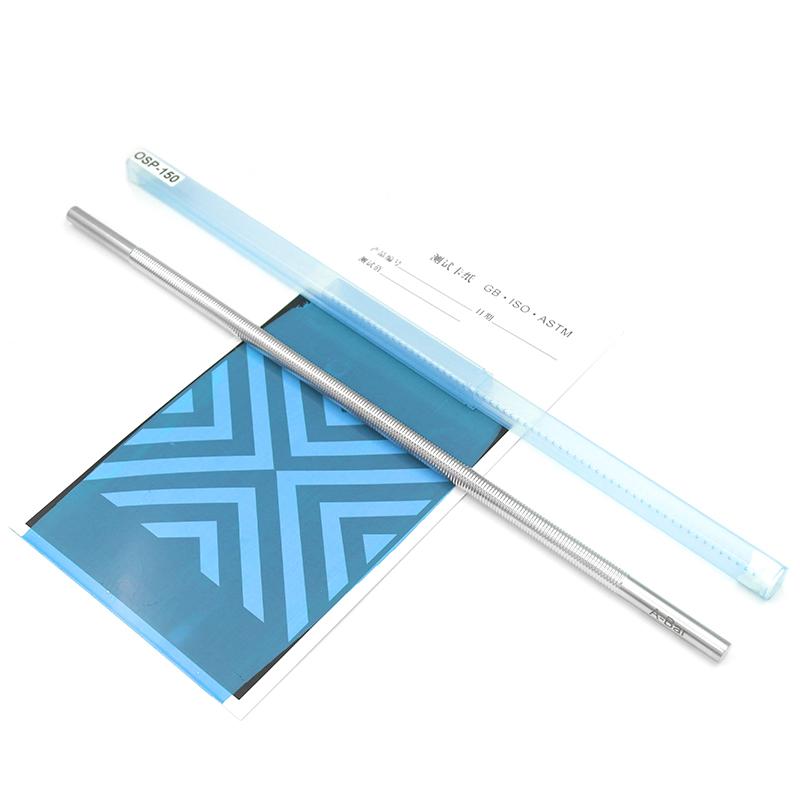

          OSP-00 coating stick real shot picture 1

          OSP-00 coating stick photo 2

          OSP-00 coating stick photo 3

          Optional

          Wire Rod Cleaning Machine

          LABOratory automatic coating machine

          Coating film test jamRK imprint bed

          Note: Click on the accessory picture to view Details.

          VS

          OSP OSP-00/400 coating rodSpecifications

          LIST VALUE
          Production process Formed
          WFT 0μm
          diameter 10mm
          Total length 400mm
          Application width 300mm
          Grip width 50+50mm
          material 304 stainless steel

          OSP OSP-00/400 coating rod Packing list

          Stainless Steel Main Rod X1, Transparent External Encasement Hose X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          Can this coating rod be prepative of multi-layer ultra-thin film?
          [A]
          The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
          [Q]
          Do you have the film scraper required by ASTMD823 standard?
          [A]
          This OSP-00/400 film scraper will do.
          [Q]
          What is the purpose of OSP0 Smoothing Rods? What is the difference from the groove one?
          [A]
          Smoothing Rods without grooves, mainly used for pre-quantification on paper printing or Plastic film, coated Film thickness is controlled by pressure, Spreader effect without scratches possible.
          [Q]
          What is the wet film thickness of OSP-00? Then what is this smooth scraper generally used for?
          [A]
          OSP-00 wet film thickness is 0, Smoothing Rods in daily customer use is not mainstream, the lowest is 1.5um, customers use Smoothing Rods more because of ultra-thin or covering power has an intuitive display.
