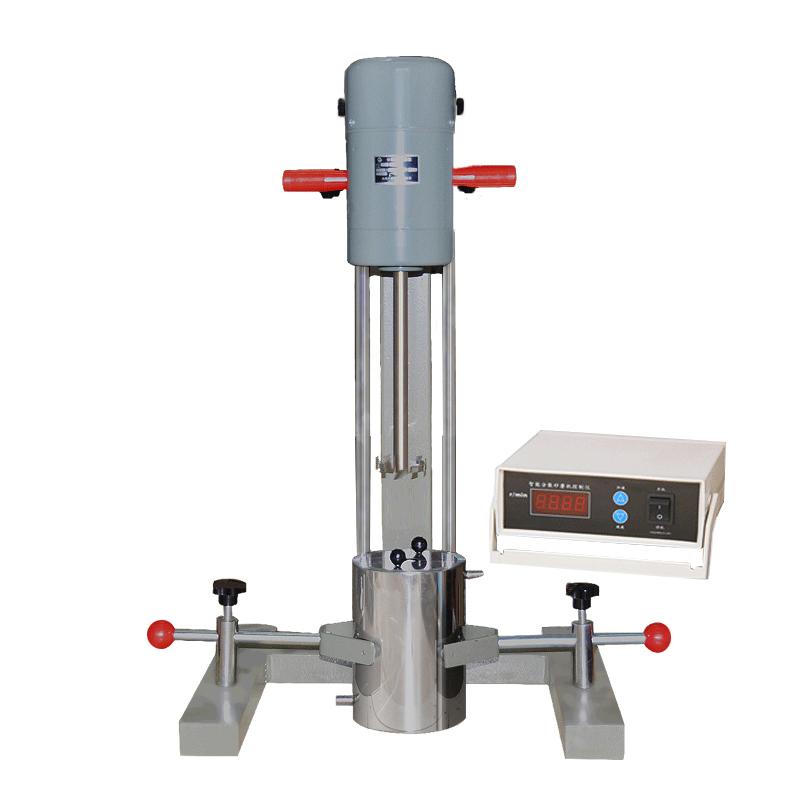

QIWEI FS-400T High Speed Disperser

Introduction

Qiwei FS-400T dispersing machine (digital display high speed) adopts electronic constant force speed regulation circuit, digital display, high efficiency, red mixing effect, easy cleaning, simple and convenient manual lifting. FS-400D dispersing machine integrates dispersing and stirring functions, and completes the two processes of dispersing and homogenizing with one machine and one container. The motor power of FS-400D/FS-400T dispersing machine is 400W.

Note: FS-400T does not have a chain, and the cylindrical rod can be directly pressed to control the height. FS-400D is a chain, height-adjustable, square column pole.

Applications

Qiwei FS-400T dispersing machine is widely used in the dispersion and mixing of materials in liquids such as factories, scientific research institutions, colleges and medical institutions.

product structure

The main components of the dispersing machine are: 1. Motor; 2. Intelligent controller, stepless speed regulation; 3. Host (dispersing shaft); 4. Cylinder (volume can be customized according to user needs); 5. Lifting bracket; 6. Fixed frame and screw rod.

Principle

FS-400T dispersing machine adopts electronic constant force speed regulation circuit, the number directly displays the rotational speed of the rotating shaft, and is equipped with a dispersing impeller and a sanding disc. It can adapt to the needs of different experiments in the laboratory, and can directly calculate the relationship between the linear speed of the stirring, dispersing, and sanding discs, the viscosity of the material, and the chemical reaction rate according to the displayed shaft speed, and provide correct process data for large-scale production.

The dispersing head of the FS-400T dispersing machine is driven by the high-speed motor to generate a high rotational speed in the tangential direction. Under the action of huge centrifugal force, the material produces strong hydraulic shearing and high-frequency mechanical effects, so that the fluid material can withstand Thousands of shearing and high-frequency mechanical effects achieve efficient mixing, dispersion, and homogeneity.

The whole machine × 1, the barrel × 1, the barrel cover × 1 pair, the dispersion plate × 2, the grinding wheel × 1, the governor × 1, the holder × 1 pair, the carbon brush × 1 pair, the fuse × 1, the inner hexagon × 1, the brush × 1, the manual × 1, the warranty card and the certificate × 1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
