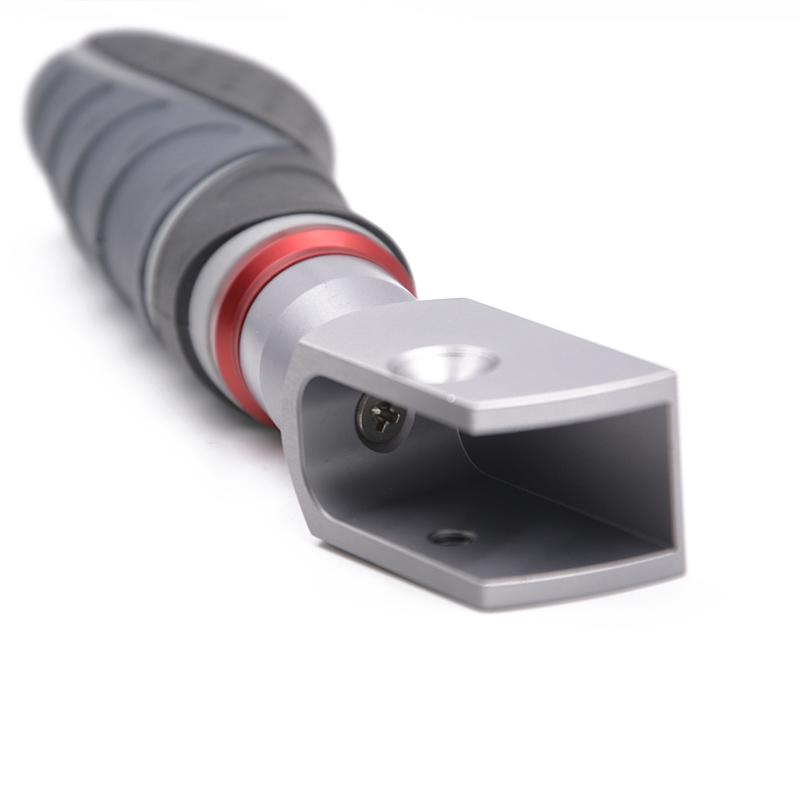

TQC VF1856 Cross Hatch Cutter without tip

The TQC VF1856 Cross Hatch Cutter is a CC1000 series multi-blade Cross Hatch Cutter with the characteristics of an adjustable blade holder. It does not include a cutter head. The cutter head needs to be purchased separately.

Brand

SKU: NB036918

TQC sheen

Model

Get Quote

TQC sheen shopSE

Information

Datasheet

What else did others buy

Genuinegoods

TQC sheen VF1856 Cross Hatch CutterOverview
Specifications
Comments
FAQs

VF1856

Cross Hatch Cutter

Operating Principle

TQC CC1000 series multi-type grid device uses the working principle of the grid method,The grid method is a test method for measuring the adhesion of a dry coating on a surface, using a row of 6/11 blades between two outer wires to draw 25/100 squares, and the evaluation grade is determined by comparing the grids. The adhesion of dry-coated paint to the substrate is measured by a series of cuts. Cut out two parallel lines that cross vertically to get 25 or 100 squares. Parallel line intersection areas are evaluated on a tabletop and then treated with a stiff bristle brush for a short period of time or taped on a hard substrate.

Comparison table of the full range of models of adhesion Testers

TQC	Knife teeth	CC1000	CC2000	CC3000	Suitable for film thickness environments
Scratch lattice adhesion instrument	-	The blade holder is automatically adjusted, and the round cutter has 8 cuts	The blade holder is automatically adjusted, the cutter can be easily changed, and the swivel handle is included, eliminating the need for additional tools	The blade holder maintains a fixed distance between the varnish surface and the two auxiliary wheels, and the cutting depth can be precisely adjusted to ensure repeatability	-
ISO2409/ASTM D3359	1	VF1839	SP1690	SP1680	ISO2409: 0~60μm (sturdy substrate)； ASTM D3359: 0~50μm (Robust Substrate)
ISO2409/ASTM D3359	2	VF1842	SP1691	SP1681	ISO2409： 0~60μm (soft substrate), 61-120μm(Sturdy substrate.))； ASTM D3359：50~125μm (Solid Substrate)
ISO/DIN2409	3	VF1844	SP1692	SP1682	121-250μm(Sturdy substrate.))
ASTM 3359＜2009	1	VF1846	SP1699	SP1683	0~50μm(Sturdy substrate.))
ASTM 3359 is less than 2009	1.5	VF1847	SP1700	SP1684	50~125μm(Sturdy substrate.))

Take you to the Dutch TQC

TQC VF1856 Scratcher Details Figure 1

TQC VF1856 Scratcher Detail Figure 2

TQC VF1856 Scriber Details Figure 3

TQC sheen VF1856 Cross Hatch CutterSpecifications

LIST	VALUE
Instrument material	Vacuum hardened stainless steel, aluminum, rubber
Application standard	ISO2409、ASTM D3359
Applicable film thickness environment	0~60μm (solid substrate), 0~50μm (solid substrate)
Appearance size	3221042mm

TQC sheen VF1856 Cross Hatch Cutter Packing list

Cross Hatch Cutter x1 (without cutter head), 3M tape x1, brush x1, magnifying glass x1, Encasement box x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Hello, is VF1839 in stock?

[A]

This is split into VF1856 + VF2355

[Q]

Do you still have this model VF1839?

[A]

There is no VF1839 anymore, now it has become these two VF1856 + VF2355.
