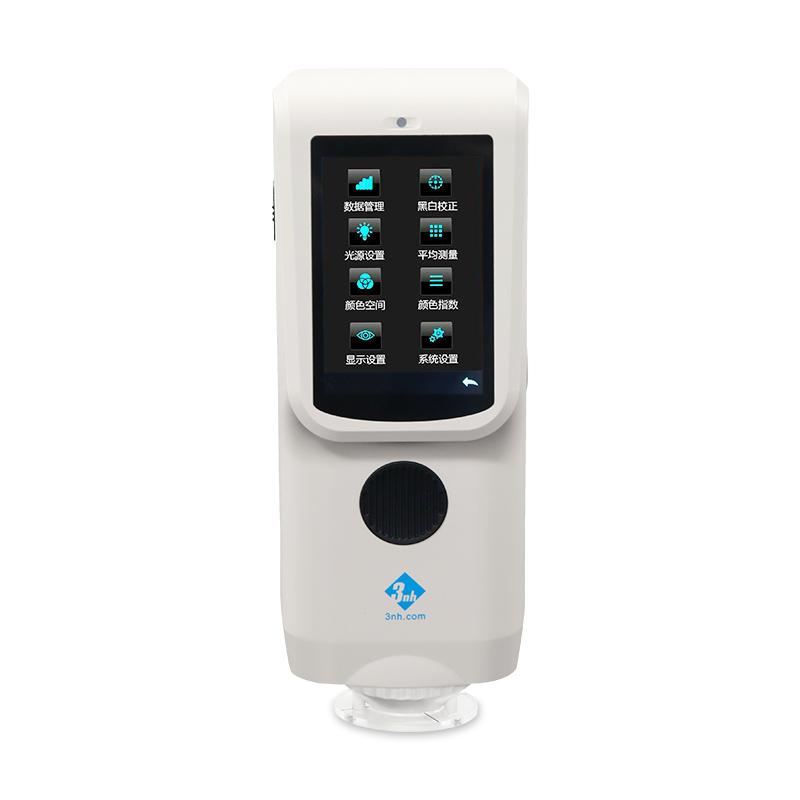

3NH spectral color difference treasure CR8 (professional version) single diameter φ 8mm fixed focus
Using grating spectroscopy technology, imported whiteboard, Repeatability Delta E * ab can be easily controlled within 0.04. Full-band equalized LED Light source. Can intuitively display reflectance (user specifies 3 specific wavelength reflectance), sample chromatic value, color difference value/graph.
Brand
SKU: NB036935
3NHModel
CR8
Price
$ 817.00
Promotion
Service
The delivery and service By NBchao.Com
VS
What else did others buy
-
IWave SR211 Colorimeter Visual Positioning φ 4mm
$ 692.00 -
Kutai MS3006 Multi-angle Colorimeter Industrial MCU 6 Measurement angles
Login -
CHNSPEC CS-421 Beverage Colorimeter 4mm caliber with liquid measurement fixture
$ 2060.00 -
3NH TS7600 Thai Double Colorimeter φ 5mm caliber
Login -
CHNSPEC CS-650A xenon arc Colorimeter 10mm
$ 2745.00
Genuinegoods
CR8
Spectroscopic color difference treasure
Using grating spectroscopy technology, imported whiteboard, Repeatability Delta E * ab can be easily controlled within 0.04. Full-band equalized LED Light source. Can intuitively display reflectance (user specifies 3 specific wavelength reflectance), sample chromatic value, color difference value/graph.
VS
3NH CR8 Spectroscopic color difference treasureSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | D/8 (diffuse illumination, 8 ° direction reception) SCI measurement conforms to standard CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
| Integrating sphere size | Φ40mm |
| Lighting source | Light spectrum LED Light source |
| spectroscopic mode | Plane grating spectroscopy |
| Sensor | Silicon photodiode array (dual row 32 groups) |
| Wavelength Range | 400~700nm |
| wavelength interval | 10nm |
| Bandwidth | 10nm |
| Measurement range | L: 0~120 reflectance: The instrument can test the reflectance at 3 specific wavelengths specified by the user (default 440nm, 550nm, 600nm), and the APP can realize full-band wavelength display |
| Measurement caliber | Single diameter: Should 8mm (optional Should 4mm) |
| Focus method | fixed focus |
| Light-containing method | SCI |
| Color Space | CIE LAB,XYZ,Yxy,LCh |
| Color difference formula | ΔE*ab,ΔE*00 |
| Other chroma metrics | A variety of chroma indicators are realized through the APP |
| Viewing Angle | CIE 10° |
| Available Light Sources | D65,A,F2(CWF) |
| display mode | Reflectance (user-specified reflectance at 3 specific wavelengths), sample chromatic value, color difference value/graph, pass/fail result, Color simulation, Color bias |
| Display Accuracy | 0.01 |
| Measurement time | About 1.5s |
| Repeatability | Chromatic value: MAV/SCI, Delta E * ab within 0.04 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s) |
| Inter-instrument Agreement | ΔE*ab<0.35(MAV/SCI) |
| Measurement mode | Single measurement, average measurement (2~ 99 times) |
| positioning method | Stabilizer positioning |
| size | 81*71*214mm |
| Weight | Approx. 460g |
| Battery life | Lithium battery, 6000 cycles in 8 hours |
| Lighting source life | More than 3 million measurements in 5 years |
| Display | TFT true color 3.5inch, capacitive touch screen |
| Interface | USB, Bluetooth ® 5.0 |
| store data | 500 master standards, 10,000 samples, APP Mass storage |
| Operating language | Simplified Chinese, English, Traditional Chinese |
| Operating environment | 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m |
| Storage environment | -20~50 ℃, 0~85% RH (no condensation) |
| Optional Accessories | USB micro printer, powder test box, Bluetooth micro printer, placement base |
3NH CR8 Spectroscopic color difference treasure Packing list
Host X1, power adapter X1, data cable X1, manual X1, SQCX quality management software (official website download) X1, black and white correction box X1, protective cover X1, wristband X1, 08mm/04mm diameter X1, APP (official website download) X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
[Q]
Coated steel color difference, have memory function and Adjustment can this device achieve?
[A]
Recommend CR8 with Memory and Adjustment
[Q]
Hello, do you have a color difference meter for measuring medicinal powder?
[A]
The machine is equipped with NH multi-functional test components to measure powder
[Q]
Automatic calibration, right?
[A]
Configure black and white board, you can correct it yourself
[Q]
Color syrup color value of the color difference meter, any suggestions?
[A]
This one is equipped with multi-functional components, similar to measuring liquid.
