ZHANYI 15 Applicator rod formed length 400mm

Formed production process, easy cleaning without clogging, wet film thickness 15μm, diameter 10mm, Total length 400mm, application width 320mm, hand width 40 + 40mm.

Brand

SKU: NB003700

ZhanYi

Model

ZY-15/400

Get Quote

ZhanYi

Information

Datasheet Video Catalog Manual

What else did others buy

UK RK KHC.21 Drawdown Plate for Better Repeatability and Proofing

$ 240.00
TQC VF1601 Glass Spreader 380 * 230mm

$ 651.00

Genuinegoods

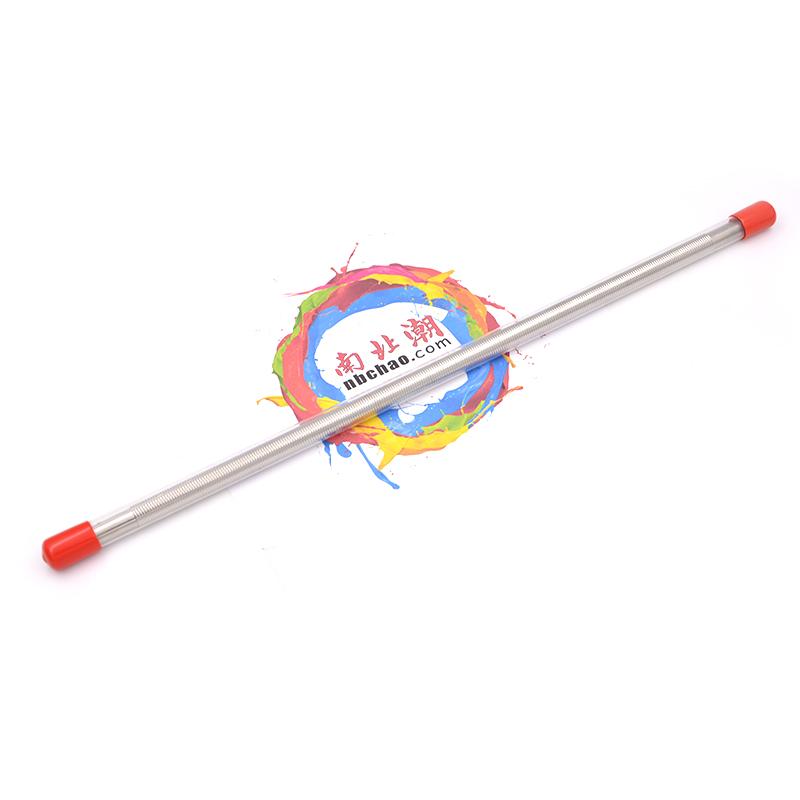

ZhanYi ZY-15/400 Mayer RodsOverview
Specifications
Comments
FAQs

ZY-15/400

Mayer Rods

Formed production process, easy cleaning without clogging, wet film thickness 15μm, diameter 10mm, Total length 400mm, application width 320mm, hand width 40 + 40mm.

Zhanyi film scraping rod is a coating film scraping rod formed by extrusion process, without winding steel wire, and has extruded continuous groove size to control the wet film thickness of the coating film. The wet film thickness that can be coated by No. 15 film scraping rod is 15 μm, the effective coating width is 320 mm, and there are 40 mm long grip parts at both ends of the rod.

Zhanyi No. 15 Wire Rod Coater Operation Video

Zhanyi No. 15 Wire Rod Coater Specifications

Features and advantages of Zhanyi No. 15 wire rod coater

Zhanyi No. 15 Wire Rod Coater Applications

Zhanyi No. 15 Wire Rod Coater Real Shot Figure 1

Zhanyi No. 15 wire rod coater real shot picture 2

Optional

Note: Click on the accessory picture to view Details.

ZhanYi ZY-15/400 Mayer RodsSpecifications

LIST	VALUE
Production process	Formed
WFT	15µm
diameter	10mm
Total length	400mm
Application width	320mm
Grip width	40+40mm
precision	1mm

ZhanYi ZY-15/400 Mayer Rods Packing list

Stainless Steel Main Rod X1 Transparent External Encasement Hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

15Um is No. 15, right? No. 15 has a larger amount of ink than No. 7, right?

[A]

If it is the brand, its model number is the wet film thickness um, but the brand does not have No. 7. Please contact NBchao customer service after confirmation.

[Q]

Is the film Film thickness of No.15 wet film scraper of Spreading Wing the same as that of No.15 film film scraper of OSP?

[A]

Hello, yes, they are all 15 microns.

[Q]

Are all Mayer Rods available for detection in the ASTMD823 standard?

[A]

Not necessarily, but this ZY-15/400 Mayer Rods can be considered.
