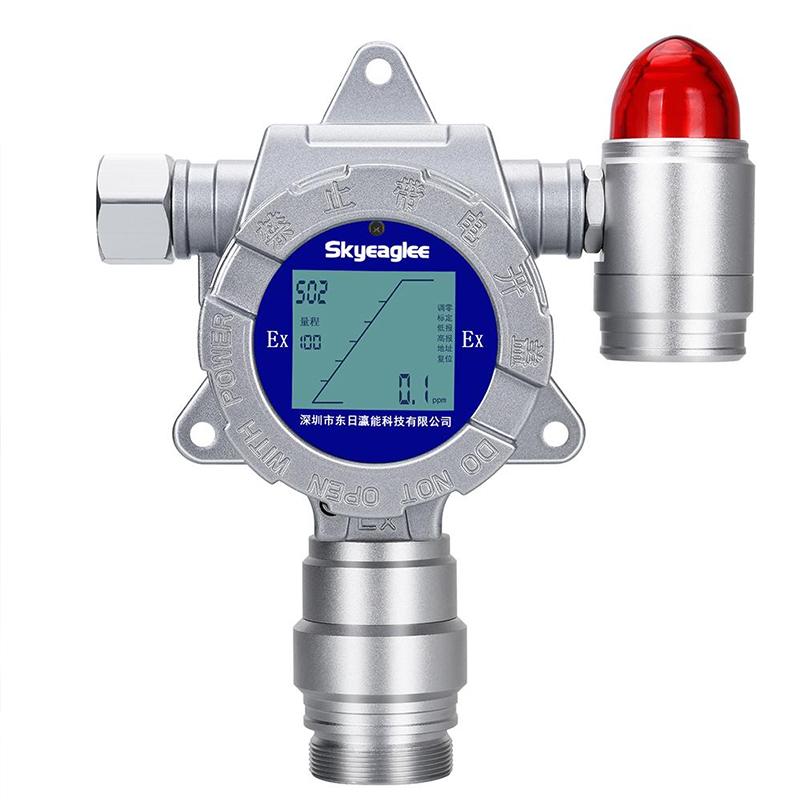

Skyeaglee SK/MIC-600-VOC-Y/100 Online VOC Detector

SK/MIC-600-VOC-Y/100 VOC Gas Detector PID light ion 0-100ppm

Detect gas VOC, range 0~100ppm, resolution 0.1ppm, detection principle electrochemistry, Operating Mode fixed continuous work, diffusion type, pipeline type, flow, pump suction type optional.

Brand

SKU: NB037025

Skyeaglee

Model

SK/MIC-600-VOC-Y/100

Get Quote

Skyeaglee shopSE

Information

Datasheet Video Catalog Manual

What else did others buy

KORNO MOT500-VOC-Y Fixed organic solvent volatile gas, alcohol Detector

$ 562.00
KORNO MOT500-TVOC-Y Online TVOC Detector 0-500ppm

$ 1751.00
KORNO GT903-TVOC-Y TVOC Detector, range 0-2ppm

$ 2463.00
KORNO GT1000-VOC-Y Organic solvent volatile gas, alcohol Detector

$ 727.00
KORNO MOT500-TVOC-Y air mass /TVOC Detector 0-10PPM

$ 525.00

Genuinegoods

Skyeaglee SK/MIC-600-VOC-Y/100 Online VOC DetectorOverview
Specifications
Comments
FAQs

SK/MIC-600-VOC-Y/100

Online VOC Detector

Detect gas VOC, range 0~100ppm, resolution 0.1ppm, detection principle electrochemistry, Operating Mode fixed continuous work, diffusion type, pipeline type, flow, pump suction type optional.

SK/MIC-600 online gas concentration Detector is a modular design, with intelligent sensor detection technology,Flameproof (D) structure and fixed installation of flammable gas monitor. The standard configuration is a dot matrix LCD display, three-wire 4~20mA modeFit and RS485 digital signal output, optional configuration as programmable switching output and other modules, according to user needs to provide customized products, but also support output signal fine-tuning and other functions, convenient system networking and maintenance.

● On-line gas concentration Detector

● Automatic temperature compensation, zero point, full-scale drift compensation

● Automatic protection function against high-concentration gas impact

● Full software calibration function, users can also calibrate by themselves, with 3 buttons to achieve, easy to operate

● 2-wire 4-20mA output

Place of application

Paint room, incineration plant, scientific research, production workshop, company, environmental monitoring, school scientific research, building construction, fire alarm, sewageProcessing, Industrial Gas Process ControlPetroleum & Petrochemical, Chemical Plants, Smelters, Iron & Steel Plants, Coal Plants, Thermal Power Plants, Boiler Rooms, Waste Treatment Plants,Tunnel construction, oil pipelines, gas stations, underground gas pipeline maintenance, indoor air quality testing, hazardous place safety protection equipment monitoring, etc.(The data is for reference only; please also make the corresponding selection according to your actual Operating Conditions) The data shows: the usual temperature range is -20°C ~ +50°C, humidity10%RH ~ 90%RH no condensation, the absolute pressure is 106KPa±20KPa, where ±20KPa is the relative pressure, relative to the atmospheric pressureForce.

Structural diagram

Details of the SK/MIC-600-VOC-Y/100 On-line VOC Detector Figure 1

On-line gas concentration Detector diagram Electrical wiring definition diagram (Figure 2: The main unit represents the control system such as C PLC and computer.)

Details of the SK/MIC-600-VOC-Y/100 On-line VOC Detector Figure 2

Figure 1

Details of the SK/MIC-600-VOC-Y/100 On-line VOC Detector Figure 3

Figure 2

Online gas concentration Detector debugging calibration diagram:

Details of the SK/MIC-600-VOC-Y/100 On-line VOC Detector Figure 4

Series optional

Detection of gases	Range	Maximum allowed Error value	Minimum reading	When responding T90
Combustible (E_X)	0-100%LEL	＜±3%(F.S)	0.1%LEL	≤10 seconds
Combustible (E_X)	0-100%Vol	＜±3%(F.S)	0.1%Vol	≤10 seconds
Methane (CH₄)	0-100%LEL	＜±3%(F.S)	0.1%LEL	≤10 seconds
Methane (CH₄)	0-100%Vol	＜±3%(F.S)	0.1%Vol	≤10 seconds
Oxygen (O₂)	0-30%Vol	＜±3%(F.S)	0.01%Vol	≤10 seconds
Oxygen (O₂)	0-100%Vol	＜±3%(F.S)	0.01%Vol	≤10 seconds
Oxygen (O₂)	0-5000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Nitrogen (N₂)	0-100%Vol	＜±3%(F.S)	0.01%Vol	≤10 seconds
Carbon Monoxide (CO)	0-100ppm	＜±3%(F.S)	0.1ppm	≤25 seconds
Carbon Monoxide (CO)	0-1000ppm	＜±3%(F.S)	0.1ppm	≤25 seconds
Carbon Monoxide (CO)	0-2000ppm	＜±3%(F.S)	0.1ppm	≤25 seconds
Carbon Monoxide (CO)	0-20000ppm	＜±3%(F.S)	1ppm	≤25 seconds
Carbon Monoxide (CO)	0-100000ppm	＜±3%(F.S)	1ppm	≤25 seconds
Carbon dioxide ( CO₂)	0-500ppm	＜±3%(F.S)	1ppm	≤20 seconds
Carbon dioxide ( CO₂)	0-2000ppm	＜±3%(F.S)	1ppm	≤20 seconds
Carbon dioxide ( CO₂)	0-5000ppm	＜±3%(F.S)	1ppm	≤20 seconds
Carbon dioxide ( CO₂)	0-50000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Carbon dioxide ( CO₂)	0-20%Vol	＜±3%(F.S)	0.01%Vol	≤30 seconds
Carbon dioxide ( CO₂)	0-100%Vol	＜±3%(F.S)	0.01%Vol	≤30 seconds
Formaldehyde (CH₂O )	0-10ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Formaldehyde (CH₂O )	0-10ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Formaldehyde (CH₂O )	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Formaldehyde (CH₂O )	0-5000ppm	＜±3%(F.S)	1ppm	≤50 seconds
Ozone (O.)₃)	0-1ppm	＜±3%(F.S)	0.001ppm	≤20 seconds
Ozone (O.)₃)	0-5ppm	＜±3%(F.S)	0.001ppm	≤20 seconds
Ozone (O.)₃)	0-50ppm	＜±3%(F.S)	0.01ppm	≤20 seconds
Ozone (O.)₃)	0-100ppm	＜±3%(F.S)	0.01ppm	≤20 seconds
Ozone (O.)₃)	0-2000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Ozone (O.)₃)	0-30000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Ozone (O.)₃)	0-20mg/L	＜±3%(F.S)	0.01mg/L	≤30 seconds
Ozone water (O₃)	0-20mg/L	＜±3%(F.S)	0.01mg/L	≤30 seconds
Hydrogen sulfide (H₂S )	0-10ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Hydrogen sulfide (H₂S )	0-50ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen sulfide (H₂S )	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen sulfide (H₂S )	0-2000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Hydrogen sulfide (H₂S )	0-10000ppm	＜±3%(F.S)	1ppm	≤45 seconds
Sulfur dioxide (SO)₂)	0-10ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Sulfur dioxide (SO)₂)	0-20ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide (SO)₂)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Sulfur dioxide (SO)₂)	0-500ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Sulfur dioxide (SO)₂)	0-2000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Sulfur dioxide (SO)₂)	0-10000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Nitric Oxide (NO)	0-10ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Nitric Oxide (NO)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Nitric Oxide (NO)	0-2000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Nitric Oxide (NO)	0-5000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Nitrogen dioxide (NO₂)	0-10ppm	＜±3%(F.S)	0.001ppm	≤25 seconds
Nitrogen dioxide (NO₂)	0-100ppm	＜±3%(F.S)	0.01ppm	≤25 seconds
Nitrogen dioxide (NO₂)	0-1000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Nitrogen dioxide (NO₂)	0-5000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Nitrogen oxides (NO.)_X)	0-10ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Nitrogen oxides (NO.)_X)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Nitrogen oxides (NO.)_X)	0-2000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Nitrogen oxides (NO.)_X)	0-5000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Chlorine (CL₂)	0-10ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Chlorine (CL₂)	0-20ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Chlorine (CL₂)	0-200ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Chlorine (CL₂)	0-2000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Ammonia (NH₃)	0-50ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Ammonia (NH₃)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Ammonia (NH₃)	0-1000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Ammonia (NH₃)	0-5000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Ammonia (NH₃)	0-100%LEL	＜±3%(F.S)	0.1%LEL	≤10 seconds
Hydrogen ( H₂)	0-100%LEL	＜±3%(F.S)	0.1%LEL	≤10 seconds
Hydrogen ( H₂)	0-1000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Hydrogen ( H₂)	0-20000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Hydrogen ( H₂)	0-40000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Hydrogen ( H₂)	0-100%Vol	＜±3%(F.S)	0.01%Vol	≤20 seconds
Helium ( He )	0-100%Vol	＜±3%(F.S)	0.01%Vol	≤20 seconds
Argon ( Ar )	0-100%Vol	＜±3%(F.S)	0.01%Vol	≤20 seconds
Xenon ( Xe )	0-100%Vol	＜±3%(F.S)	0.01%Vol	≤20 seconds
Hydrogen cyanide (HCN)	0-30ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen cyanide (HCN)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen chloride (HCL)	0-20ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen chloride (HCL)	0-200ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Phosphine (PH₃)	0-5 ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Phosphine (PH₃)	0-25 ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Phosphine (PH₃)	0-2000 ppm	＜±3%(F.S)	1ppm	≤30 seconds
Chlorine dioxide (CLO₂)	0-1ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Chlorine dioxide (CLO₂)	0-10ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Chlorine dioxide (CLO₂)	0-200ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Ethylene Oxide (ETO)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Ethylene Oxide (ETO)	0-1000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Ethylene Oxide (ETO)	0-100%LEL	＜±3%(F.S)	1%LEL	≤30 seconds
Phosgene (COCL₂)	0-1ppm	＜±3%(F.S)	0.001ppm	≤20 seconds
Phosgene (COCL₂)	0-50ppm	＜±3%(F.S)	0.01ppm	≤20 seconds
Silanes (SiH₄)	0-1ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Silanes (SiH₄)	0-50ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Fluorine (F₂)	0-1ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Fluorine (F₂)	0-10ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Fluorine (F₂)	0-50ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen fluoride (HF)	0-10ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen fluoride (HF)	0-50ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen bromide (HBr)	0-50ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Ethylborane (B₂H₆)	0-10ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Hydrogen arsenide (AsH₃)	0-1ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Hydrogen arsenide (AsH₃)	0-10ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen arsenide (AsH₃)	0-50ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Germanane (GeH₄)	0-2ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Germanane (GeH₄)	0-20ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Hydrazine, hydrazine ( N₂H₄)	0-1ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Hydrazine, hydrazine ( N₂H₄)	0-300ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Tetrahydrothiophene (THT)	0-100mg/m3	＜±3%(F.S)	0.01 mg/m3	≤60 seconds
Bromine gas (Br₂)	0-10ppm	＜±3%(F.S)	0.001ppm	≤30 seconds
Bromine gas (Br₂)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Bromine gas (Br₂)	0-2000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Acetylene (C₂H₂)	0-100%LEL	＜±3%(F.S)	0.1%LEL	≤30 seconds
Acetylene (C₂H₂)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Acetylene (C₂H₂)	0-1000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Ethylene (C₂H₄)	0-100%LEL	＜±3%(F.S)	0.1%LEL	≤30 seconds
Ethylene (C₂H₄)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Ethylene (C₂H₄)	0-2000ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
acetaldehyde	0-10ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Ethanol (C₂H₆O )	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Ethanol (C₂H₆O )	0-2000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Methanol (CH₆O )	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Methanol (CH₆O )	0-2000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Carbon disulfide (CS₂)	0-50ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Carbon disulfide (CS₂)	0-5000ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Acrylonitrile (C₃H₃N )	0-50ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Acrylonitrile (C₃H₃N )	0-2000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Methylamine (CH)₅N )	0-50ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Dian Qi ( I₂)	0-50ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Styrene (C₈H₈)	0-200ppm	＜±3%(F.S)	0.1ppm	≤30 seconds
Styrene (C₈H₈)	0-5000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Vinyl chloride (C₂H₃CL )	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Trichloroethylene (C₂HCL₃)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Perchloroethylene (C₂CL₄)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Laughing gas (N₂O )	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Nitrogen trifluoride (NF₃)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Hydrogen peroxide (H₂O₂)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Methyl bromide (CH₃Br )	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Methyl bromide (CH₃Br )	0-30000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Methyl bromide (CH₃Br )	0-200g/m3	＜±3%(F.S)	0.1g/m3	≤30 seconds
Sulfuryl fluoride (SO₂F₂)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Sulfuryl fluoride (SO₂F₂)	0-5000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Sulfuryl fluoride (SO₂F₂)	0-10000ppm	＜±3%(F.S)	1ppm	≤30 seconds
Benzene (C₆H₆)	0-10ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Benzene (C₆H₆)	0-100ppm	＜±3%(F.S)	0.01ppm	≤30 seconds
Benzene (C₆H₆)	0-2000ppm	＜±3%(F.S)	1ppm	≤30 seconds

Skyeaglee SK/MIC-600-VOC-Y/100 Online VOC DetectorSpecifications

LIST	VALUE
Detection gas	VOC
range	0~100ppm
Resolution	0.1ppm
Detection principle	PID photoion
Operating Mode	Fixed type continuous work, diffusion type, pipeline type, when circulating, pump suction type is optional.
detection error	≦3%（F.S）
Response time	≦30S
output signal	Current signal output 4-20MA
Alarm method	2 passive node signal output, alarm point can be set.
Operating Environment	-20 ℃~ 50 ℃ (special requirements -40 ℃~ + 70 ℃)
Relative Humidity	≦90%RH
Working Voltage	DC12~30V
Sensors Life	2 years
Explosion-proof form	Probe Transmitters and Sensors are flameproof
Explosion-proof grade	ExdIICT6
Connection cable	Three-core cable (single Wire diameter ≥ 1.5mm); Shielding cable is recommended
Connection distance	≦1000 m
Protection class	IP66
Dimensions	183×143×107 mm
Weight	1.5kg

Skyeaglee SK/MIC-600-VOC-Y/100 Online VOC Detector Packing list

Host X1, sound and light alarm light X1, sealing soft glue X1, detector manual X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.

+Skyeaglee SK/MIC-600-VOC-Y/100 Online VOC Detector Big data

+Skyeaglee SK/MIC-600-VOC-Y/100 Online VOC DetectorStandard

+Navigation
