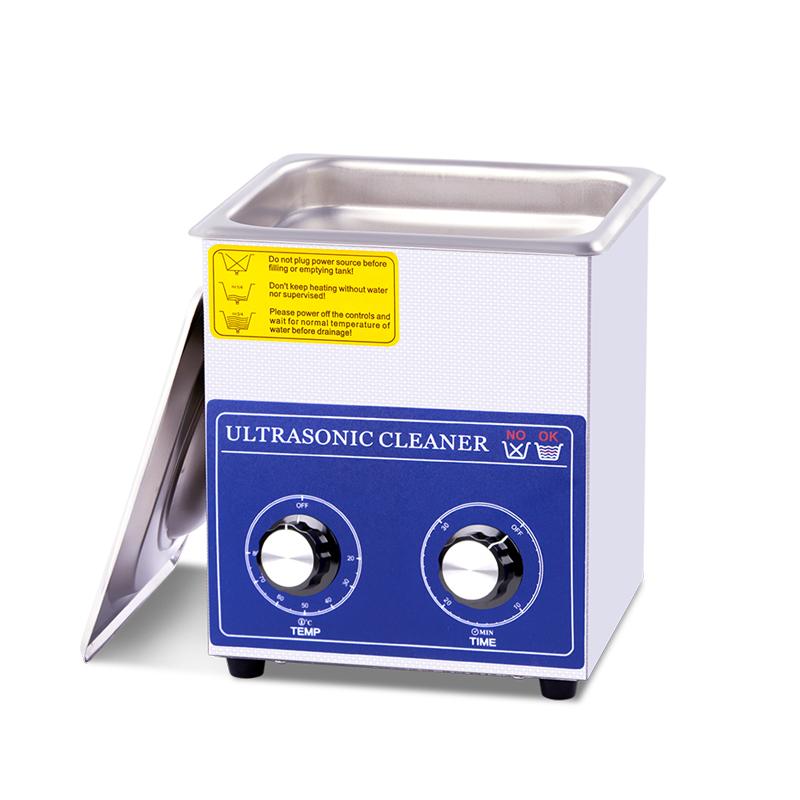

Dksonic PS-10 Ultrasonic Cleaner 2L Mechanical Timing Heating
Inner slot size 150 × 140 × 10mm, external size 190 × 170 × 19mm, capacity 2L, power 60W, operating frequency 40KHz, heating power 100W, time setting 1-30Min, temperature 20-80 ℃.
dksonic
PS-10
PS-10A
PS-10T
-
Dksonic PS-20 Ultrasonic Cleaner 3.2L Mechanical Timing Heating
$ 141.00 -
NBC-800W Ultrasonic Cleaner 304 Stainless Steel 180L Ultrasonic Timing Temperature Adjustable
$ 1439.00 -
Dksonic PS-60T Ultrasonic Cleaner 15L Mechanical Timing
$ 217.00 -
Dksonic PS-100 Ultrasonic Cleaner 30L Mechanical Timing Heating
$ 304.00 -
Dksonic PS-20T Ultrasonic Cleaner 3.2L Mechanical Timing
$ 138.00
Application
Ultrasonic cleaning machine has the advantages of other physical cleaning or chemical cleaning, so it is widely used in service industry, electronics industry, pharmaceutical industry, laboratory, machinery industry, hard alloy industry, chemical industry and many other fields.
Instructions
Installation and preparation:
a) After unpacking, check whether the parts are loose;
b) The machine is placed in a ventilated and dry place, ensuring that the machine is in a horizontal position;
c) Correctly connect the power plug to ensure a firm connection (be sure to use a three-hole socket with a reliable grounding wire to ensure safety)
d) Add an appropriate amount of cleaning solution according to the cleaning requirements;
cleaning method:
Ordinary cleaning can be cleaned with water. When the product has not been cleaned for a long time or there is a lot of dirt, please add an appropriate cleaning solution to enhance the super cleaning effect. For longer items, it can be washed in sections.
Series selection
| model | Inner tank size | Dimensions | capacity | power | working frequency | heating power | time setting | temperature |
| PS-08T | 150×140×65mm | 190×170×15mm | 1.3L | 60W | 40KHz | 1-30Min | ||
| PS-08 | 150×140×65mm | 190×170×15mm | 1.3L | 60W | 40KHz | 100W | 1-30Min | 20-80℃ |
| PS-10T | 150×140×10mm | 190×170×19mm | 2L | 60W | 40KHz | 1-30Min | ||
| PS-10 | 150×140×10mm | 190×170×19mm | 2L | 60W | 40KHz | 100W | 1-30Min | 20-80℃ |
| PS-20T | 240×140×10mm | 270×170×22mm | 3.2L | 120W | 40KHz | 1-30Min | ||
| PS-20 | 240×140×10mm | 270×170×22mm | 3.2L | 120W | 40KHz | 100W | 1-30Min | 20-80℃ |
| PS-30T | 300×155×15mm | 330×180×28mm | 6.5L | 180W | 40KHz | 1-30Min | ||
| PS-30 | 300×155×15mm | 330×180×28mm | 6.5L | 180W | 40KHz | 300W | 1-30Min | 20-80℃ |
| PS-40T | 300×240×15mm | 330×270×28mm | 10L | 240W | 40KHz | 1-30Min | ||
| PS-40 | 300×240×15mm | 330×270×28mm | 10L | 240W | 40KHz | 300W | 1-30Min | 20-80℃ |
| PS-60T | 330×300×15mm | 360×330×28mm | 15L | 360W | 40KHz | 1-30Min | ||
| PS-60 | 330×300×15mm | 360×330×28mm | 15L | 360W | 40KHz | 400W | 1-30Min | 20-80℃ |
| PS-80T | 500×300×15mm | 550×330×28mm | 22L | 480W | 40KHz | 1-30Min | ||
| PS-80 | 500×300×15mm | 550×330×28mm | 22L | 480W | 40KHz | 500W | 1-30Min | 20-80℃ |
| PS-100T | 500×300×20mm | 550×330×33mm | 30L | 600W | 40KHz | 1-30Min | ||
| PS-100 | 500×300×20mm | 550×330×33mm | 30L | 600W | 40KHz | 500W | 1-30Min | 20-80℃ |
dksonic PS-10 Ultrasonic CleanerSpecifications
| LIST | VALUE |
|---|---|
| Inner slot size | 150*140*10mm |
| Dimensions | 190×170×19mm |
| Capacity | 2L |
| Total power | 60W |
| Ultrasonic frequency | 40KHz |
| Heating power | 100W |
| Time setting | 1-30Min |
| Temperature setting range | 20-80℃ |
dksonic PS-10 Ultrasonic Cleaner Packing list
Cleaning machine X1, cleaning blue X1, sound lowering cover X1, manual X1, power cord X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
