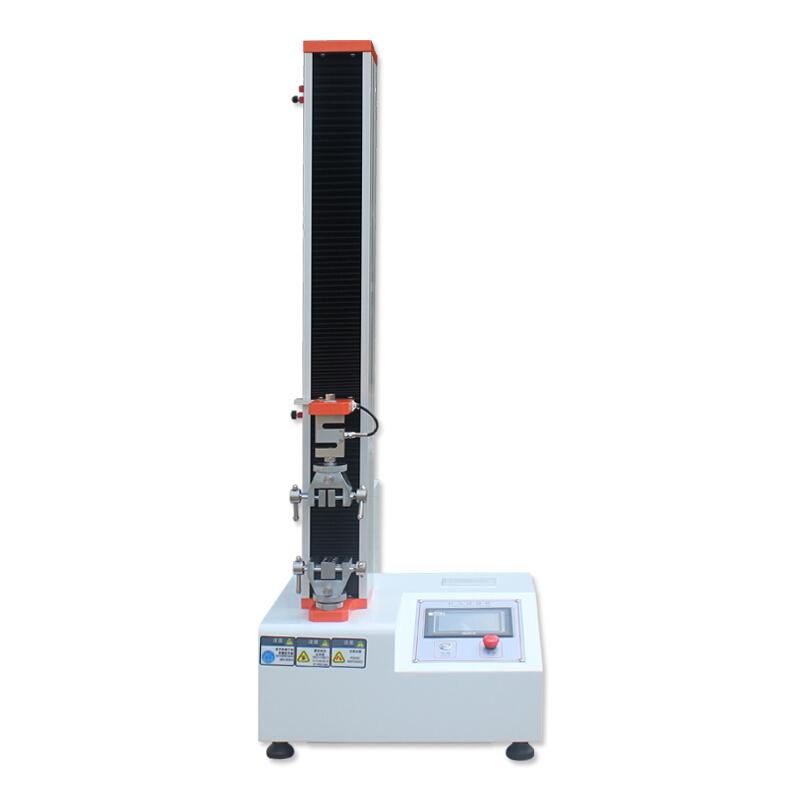

ASR-6820 ring type initial tack Tester

scope of use

The circular initial adhesion Tester has a compact and exquisite structure, adopts imported sensors and motors, and is mainly used for the initial adhesion of various products such as tapes and adhesives. Loop tack Tester meets international standards such as FINAT (FINAT Test Method NO. 9: Loop tack measurement), PSTC-16 LOOP TACK, ASTM D6195-03standard test methods for Loop Tack, etc. It is suitable for research institutions, adhesive import and export enterprises, inspection and quarantine institutions etc.

Test Principle

Ring initial tack testing machine is to make the ring sample and the standard float test test plate fully contact at a constant speed of 300mm/min, and then the instrument automatically reverses the ring sample and the test plate at a constant speed of 300mm/min to completely separate, The maximum force generated, this maximum force value is the ring tack of the tested sample.

completeness-built unit X1, ring initial tack fixture x1, computer software x1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
